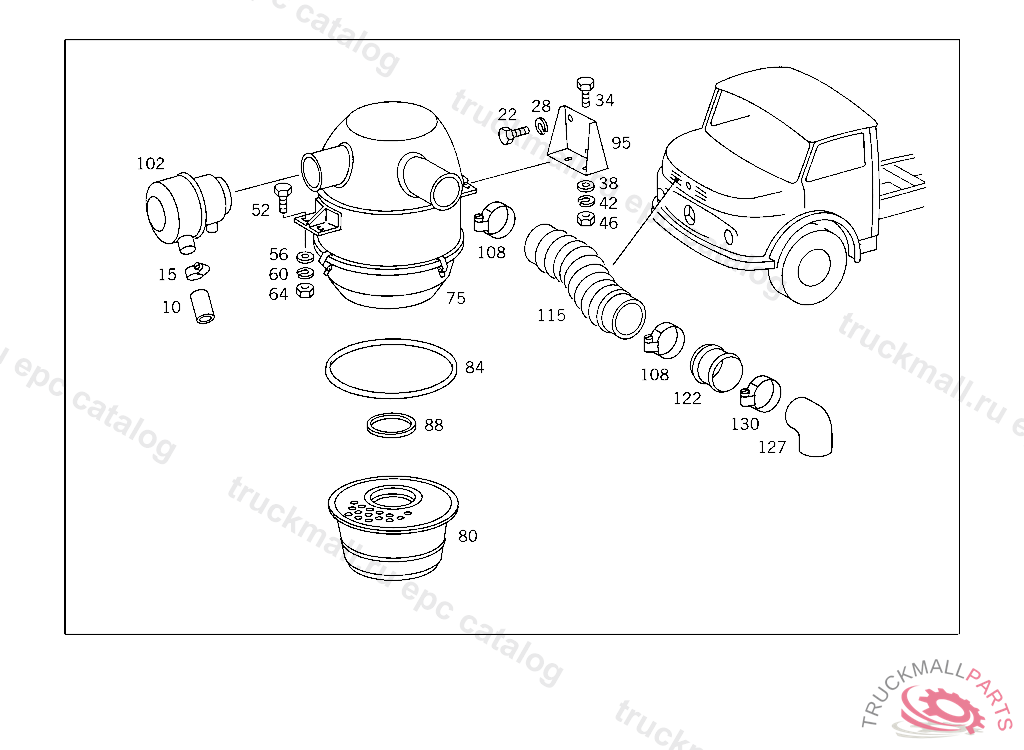

Поз.
Артикул
Описание
10
HOSE
15
CLAMP
15
CLAMP100-120
22
SCREW BRACKET TO FRONT PANEL, 032,033,040,041,132,133,140,141 FROM CAB 1500001
28
LOCK WASHER RAIL TO BATTERY SUPPORT
34
SCREW BRACKET TO SIDE MEMBER
38
WASHER GROUND CABLE
42
LOCK WASHER , Replaced By: N912004010102
46
NUT BRACKET TO RETARDER
52
SCREW BRACKET TO SIDE MEMBER
56
WASHER GROUND CABLE
60
LOCK WASHER , Replaced By: N912004010102
64
NUT BRACKET TO RETARDER
75
AIR CLEANER , 032,033,040,041,132,133,140,141 FROM CAB 1500001 INAPPLICABLE TO SUPERCHARGING SYSTEM 030-041 UP TO IDENT NO.: 679207
80
FILTER ELEMENT , 032,033,040,041,132,133,140,141 FROM CAB 1500001 INAPPLICABLE TO SUPERCHARGING SYSTEM 030-041 UP TO IDENT NO.: 679207
84
GASKET OUTSIDE
88
GASKET INSIDE
95
BRACKET , 352.00/1,353,358 FROM CHASSIS 676465 ALSO INSTALLED ON 500001-599999,TYP 360 FROM CHASSIS 676465
102
AIR CLEANER
108
LOOM TIE. CLAMP
108
LOOM TIE. CLAMP AS REQUIRED
115
HOSE
122
AIR INTAKE PIPE
127
HOSE
130
CLAMP
130
CLAMP. LOOM TIE90-110
