Mercedes N304017006016 - Винт M 6 X 16 8.8

W 4 A 028 722.392

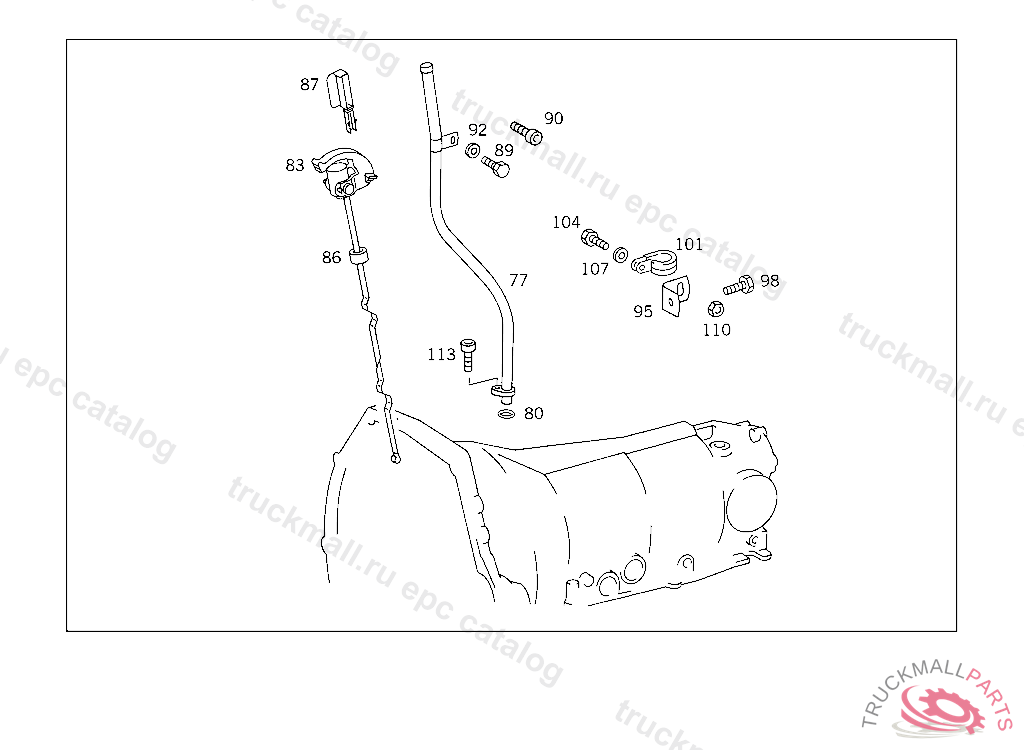

27 722.3 MERCEDES-BENZ AUT.TRANSMISSION - 180 TRANSMISSION ATTACHMENT PARTS IL. 2

Поз.
Артикул
Описание
77
A6012700784
OIL FILLER PIPE
80
A0169972948
SEAL RING OIL FILLER NECK
83
A1402700683
OIL DIPSTICK
83
A1402700383
OIL DIPSTICK , Replaced By: A1402700683
83
A1262700083
OIL DIPSTICK , Replaced By: A1402700383
86
A1269970083
SLEEVE
87
A1249910155
PIN
89
N304017006016
SCREW PUMP TO BRACKET
89
N000933006183
SCREW , Replaced By: N304017006016
92
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
92
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
113
N000912006066
SCREW BEARING BRACKET TO TRANSMISSION
