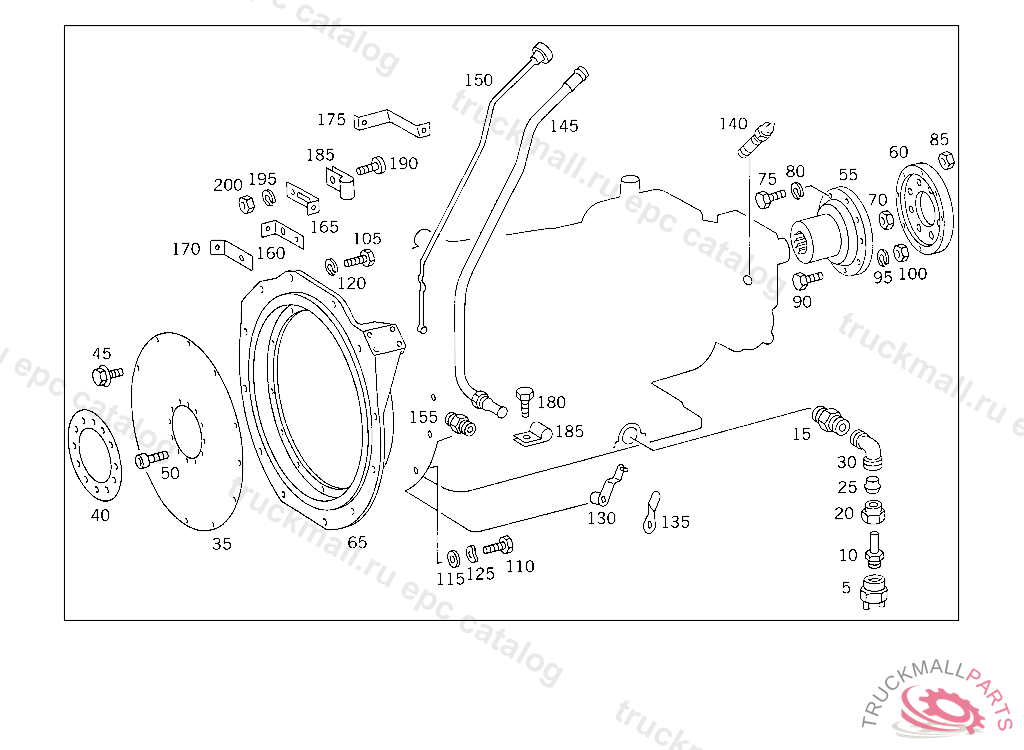

Поз.
Артикул
Описание
5
SWITCH P.T.O. TELL-TALE LAMP
10
FITTING EXHAUST BRAKE SWITCH TO SIGNAL PRESSURE CONNECTION AT TRANSMISSION
15
FITTING , Replaced By: A0009907171
20
UNION NUT
25
GLAND , Replaced By: A0019901667
25
SEAL CONE
30
ELBOW FITTING , Replaced By: A3769900571
30
ELBOW FITTING RETURN LINE TO TRANSMISSION
35
FOLLOWER CONVERTER
40
DISC INTERMEDIATE FLANGE
45
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
45
SCREW , Replaced By: N910105012003
50
SCREW DRIVEN DISC TO CONVERTER
55
FLANGE P.T.O.
55
FLANGE P.T.O.
55
FLANGE P.T.O.
55
FLANGE P.T.O.
60
DRIVE FLANGE PROPELLER SHAFT TO TRANSMISSION
60
DRIVE FLANGE PROPELLER SHAFT TO TRANSMISSION
60
DRIVE FLANGE P.T.O.
65
SPACER RING INTERMEDIATE RING TO TIMING CASE
70
NUT OUTPUT FLANGE
75
SCREW INTERMEDIATE FLANGE TO COUPLING FLANGE
80
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
85
NUT FROM PROPELLER SHAFT TO FRONT AXLE
90
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
90
SCREW , Replaced By: A3609903001
95
LOCK WASHER FITTING TO BRACKET
100
NUT PROPELLER SHAFT TO COUPLING FLANGE
105
SCREW BRACKET TO SIDE MEMBER
105
SCREW , Replaced By: N304017010002
110
SCREW EXHAUST PIPE TO BRACKET
110
SCREW BEARING BRACKET TO STEERING COLUMN BRACKET
115
WASHER RADIATOR TO RUBBER MOUNTING
120
SPRING WASHER STEERING COLUMN BRACKET TO CAB
125
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
130
LEVER SHIFTING LEVER
135
LEVER SHIFTING LEVER
140
SPEEDOMETER DRIVE
140
SPEEDOMETER DRIVE
140
SPEEDOMETER DRIVE
145
OIL FILLER PIPE ALLISON AUTOMATIC TRANSMISSION
145
OIL FILLER PIPE , Replaced By: A0005516456, +001N003861018003, +001N915017018100
145
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
145
OIL FILLER PIPE ALLISON AUTOMATIC TRANSMISSION
150
OIL DIPSTICK ALLISON AUTOMATIC TRANSMISSION
150
OIL DIPSTICK ALLISON AUTOMATIC TRANSMISSION
150
OIL DIPSTICK ALLISON AUTOMATIC TRANSMISSION
150
OIL DIPSTICK , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6152700183
155
PIPE SOCKET OIL FILLER NECK
160
BRACKET OIL FILLER NECK
165
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
170
BRACKET OIL FILLER NECK
175
BRACKET OIL FILLER NECK
180
SCREW BRACKET TO TRANSMISSION
185
CLAMP FEED LINE TO THERMOSTAT
190
SCREW CLAMP MOUNTING M 6X16
190
SCREW , Replaced By: N000000001146
195
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
200
NUT BALL PIVOT TO LEVER
999
SEAL CONE LINE MOUNTING
999
RING GEAR
999
FLYWHEEL WITH RING GEAR
999
THRUST WASHER FLYWHEEL TO CRANKSHAFT
999
SCREW FLYWHEEL TO CRANKSHAFT, ONLY REPLACEABLE BY THE SET
999
GLAND , Replaced By: A0019901167
999
UNION NUT LINE MOUNTING
