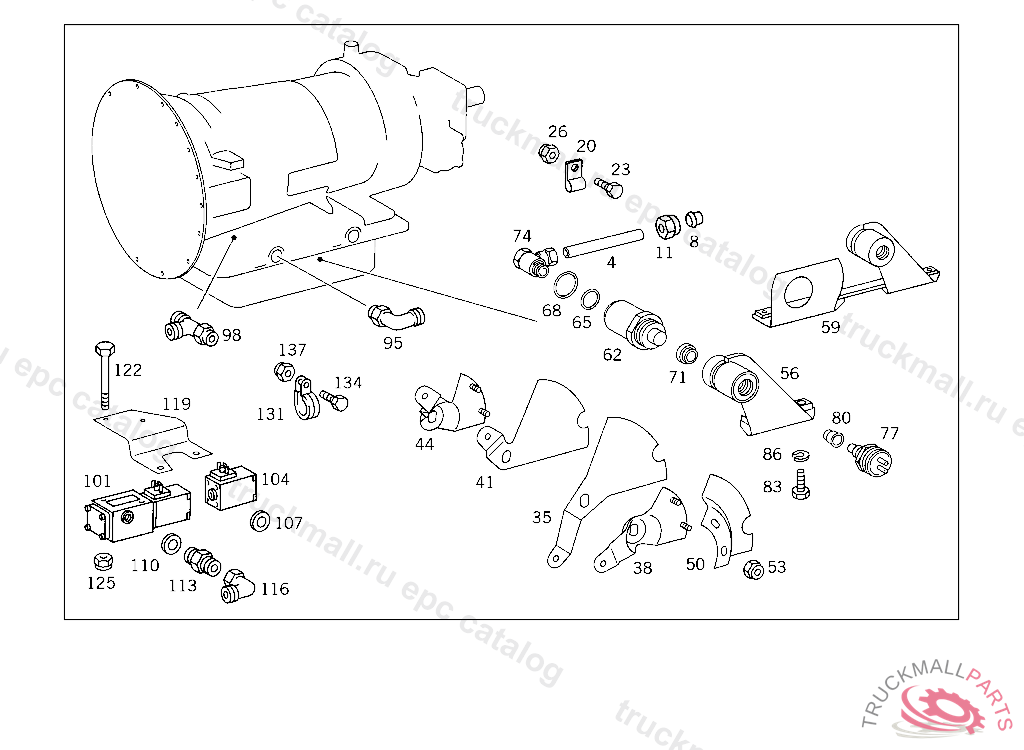

Поз.
Артикул
Описание
4
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
8
GLAND LINE CONNECTION
8
GLAND LINE MOUNTING,5 9363655 812730
11
UNION NUT LINE MOUNTING,5 9363655 812730
11
UNION NUT LINE CONNECTION
20
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
20
CLAMP , Replaced By: N916016008200
20
CLAMP , Replaced By: A3604300143
20
CLAMP ,K 147121, Replaced By: N000000000319
23
SCREW , Replaced By: N304017006016
23
SCREW PUMP TO BRACKET
26
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
35
LEVER GEARSHIFT,TRANSMISSION,4 784736
38
LEVER GEARSHIFT LEVER LOWER PART,4 784737
41
LEVER GEARSHIFT,TRANSMISSION,4 784736
44
LEVER LOWER PART
44
LEVER GEARSHIFT LEVER LOWER PART
50
LEVER UPPER PART
53
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
56
BRACKET SHIFTING LOCK CYLINDER AND CONTROL SWITCH,4 784736
59
BRACKET CYLINDER
62
CYLINDER SHIFTING LOCK
65
SEAL RING
68
SEAL RING
71
SEAL RING
74
SCREW CONNECTION LINE MOUNTING
77
SWITCH RANGE SELECTOR LOCK
80
BOOT SWITCH
83
SCREW BRACKET TO OIL PAN
83
SCREW , Replaced By: A1249904601
86
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
ELBOW FITTING MAIN HYDRAULIC CONNECTION
98
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
101
VALVE 3/2-WAY
101
VALVE 3/2-WAY
101
VALVE , Replaced By: A0002700889
101
VALVE , Replaced By: A0002702589
101
VALVE , Replaced By: A0002703289
101
VALVE , Replaced By: A0002702989
104
LIFTING MAGNETTO 000 270 08 89,16 89,25 89
107
SEAL RINGTO 000 270 08 89,16 89,25 89
110
SEAL RINGTO 000 270 08 89,16 89,25 89
113
FITTING
113
FITTING TRANSMISSION CONNECTION
116
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
119
BRACKET 3/2-WAY VALVE,4 784737
122
SCREW VALVE TO BRACKET
122
SCREW , Replaced By: N304017008021
122
SCREW PIPE CLAMP
125
NUT , Replaced By: N913004008001
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
125
NUT HOOK TO BRACKET
131
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
131
CLAMP ,K 147121, Replaced By: N000000000319
134
SCREW REAR FENDER
137
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
MAGNETTO 000 270 29 89
999
VALVE , Replaced By: A0022601757
999
VALVE REPAIR KIT TO 000 270 29 89
