Поз.
Артикул
Описание

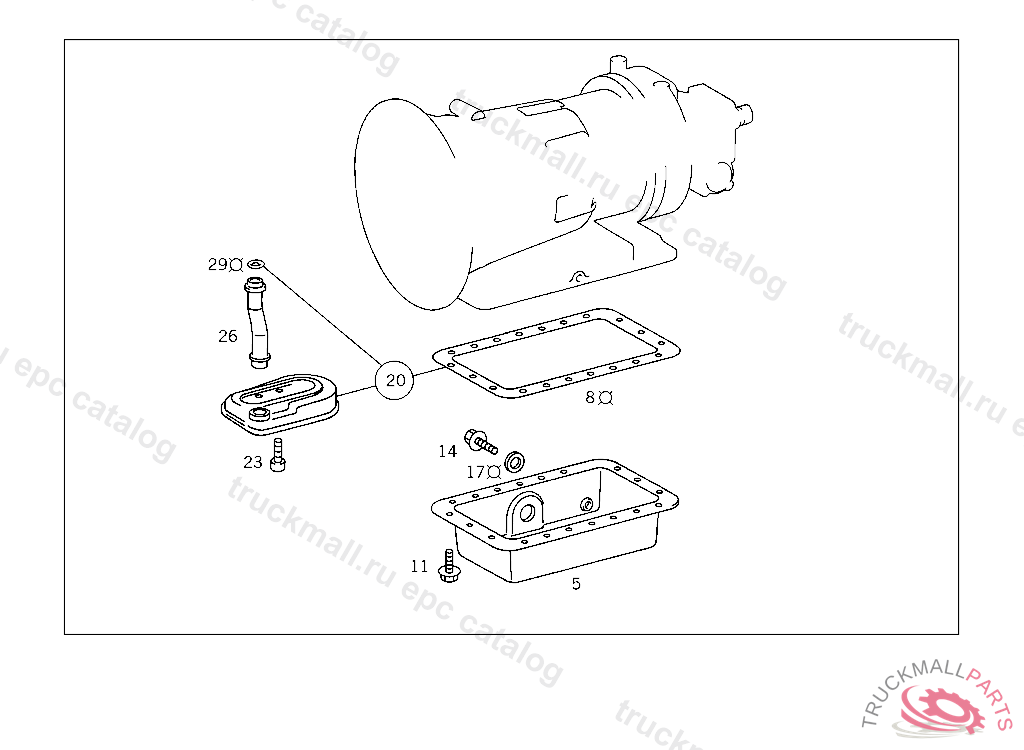

5
OIL PAN
8
GASKET , Replaced By: A0002710980
8
GASKET , Replaced By: A0002713080
8
GASKET , TO 000 270 18 01,000 270 20 01
11
SCREW , Replaced By: A0002712671
11
SCREW OIL PAN TO TRANSMISSION, TO 000 270 18 01,000 270 20 01
14
SCREW OIL DRAIN, TO 000 270 18 01,000 270 20 01
14
SCREW , Replaced By: A0002712171
14
REPAIR KIT , Replaced By: A0002711571, +001A0002710160
17
SEAL RING OIL DRAIN, TO 000 270 18 01,000 270 20 01
20
FILTER OIL FILTER
20
FILTER , Replaced By: A0002702798
20
REPAIR KIT , Replaced By: A0002700398
23
SCREW OIL PAN TO TRANSMISSION, TO 000 270 18 01,000 270 20 01
26
PIPE OIL
29
SEAL RING , TO 000 270 18 01,000 270 20 01
999
WASHER OIL FILTER TO TRANSMISSION CASE
