Поз.
Артикул
Описание

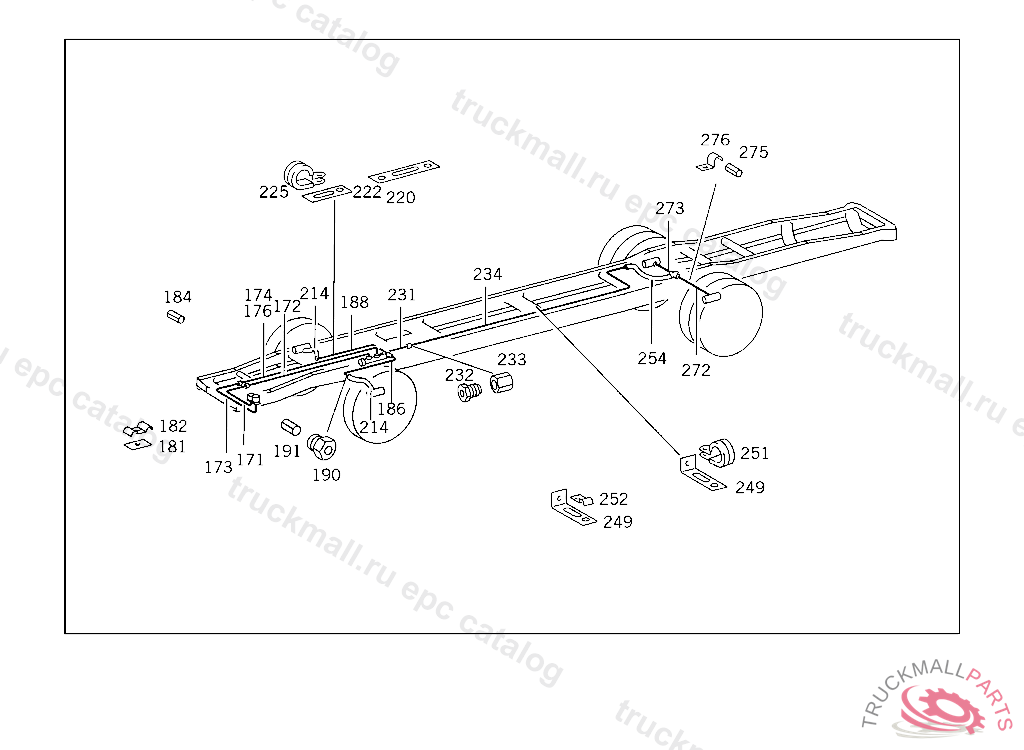

171
LINE , Replaced By: A3454208530
171
LINE FROM FLUID RESERVOIR TO CONNECTOR 8X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
172
LINE , Replaced By: A3454208630
172
LINE FROM MASTER CYLINDER TO CONNECTOR 8X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
173
LINE FROM FLUID RESERVOIR TO CONNECTOR 8X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
173
LINE , Replaced By: A3454208730
176
LINE , Replaced By: A3454208830
176
LINE FROM MASTER CYLINDER TO CONNECTOR 8X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
181
BRACKET FUEL LINES
181
BRACKET FUEL LINE
182
CLAMP
184
HOSE , Replaced By: A3099971682
186
LINE , Replaced By: A3454208930
186
LINE FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE 6X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
188
LINE , Replaced By: A3454209030
188
LINE FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE 6X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
190
UNION SCREW , Replaced By: A0004280072
190
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
191
HOSE
214
BRAKE HOSE , USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
214
BRAKE HOSE
220
BRACKET OIL LINE MOUNTING
225
CLAMP SENSOR CABLE TO FRONT AXLE
225
CLAMP COMPRESSED AIR LINE TO COMPRESSED AIR LINE
225
CLAMP , Replaced By: N916016006201
231
LINE , Replaced By: A3454209130
231
LINE FROM MASTER CYLINDER TO CONNECTOR 6X0.7 MM, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
232
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
232
UNION SCREW , Replaced By: A0004280072
233
CONNECTOR OIL DELIVERY LINE
233
CONNECTOR , Replaced By: A0004292736
233
CONNECTOR
234
LINE , Replaced By: A3454209230
234
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE 6X0.7 M, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
249
BRACKET , Replaced By: A3184280240
251
CLAMP , Replaced By: N916016006201
251
CLAMP COMPRESSED AIR LINE TO COMPRESSED AIR LINE
251
CLAMP SENSOR CABLE TO FRONT AXLE
252
MOUNTING CLAMP. CLAMP DE-AERATION LINE TO BRACKET,4 465189
252
CLAMP FLEXIBLE SHAFT TO BRACKET, TO BE ADAPTED DURING ASSEMBLY
254
BRAKE HOSE , Replaced By: A0004288935
254
BRAKE HOSE , Replaced By: A0004288935
272
LINE FROM DISTRIBUTOR TO LEFT REAR WHEEL 6X0.7 MM, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
273
LINE FROM DISTRIBUTOR TO RIGHT REAR WHEEL 6X0.7 MM, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
275
HOSE BRAKE LINE TO REAR AXLE,4 644238
276
CLAMP BRAKE LINE MOUNTING
999
HOSE RIGHT COMBINATION CYLINDER,CONNECTION: "11,12", 11X630 MM,646985
999
HOSE FROM T-FITTING TO COMBINATION CYLINDER ON THE RIGHT,CONNECTION: "12"
999
HOSE FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS 11X480
999
CLAMP BRAKE LINE TO CAB SIDE MEMBER
999
CLAMP ,K 147121, Replaced By: N000000000319
999
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
999
THRUST RING BUTT SCREW CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
999
SEAL RING LINE CONNECTION
999
SEAL RING , Replaced By: N007603012121
999
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
999
UNION NUT BUTT SCREW CONNECTION
999
UNION NUT LINE MOUNTING
999
UNION NUT LINE CONNECTION
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
NUT. UNION NUT LINE CONNECTION
999
UNION NUT LINE CONNECTION
999
COMBINATION BOLT ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
999
NUT SUPPORT TO SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER,XB209706
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT PUMP TO BRACKET
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
LOCK WASHER RAIL TO BATTERY SUPPORT
999
RING , Replaced By: A0005830296
999
CLAMPTO 005 420 99 18
999
COUNTERSUNK WASHER CAP TO BRACKET,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
SPRING WASHER. LOCK RING SHIFTING ROD TO BRACKET
999
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
FITTING , Replaced By: A0009907470
999
NUT SUCTION LINE TO OIL PUMP
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING FROM BRAKE POWER REGULATOR TO CYLINDER
999
YOKE , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
GREASE NIPPLE
999
GREASE NIPPLE PROTECTIVE TUBE
999
GREASE NIPPLE INTERMEDIATE LEVER
999
SCREW
999
SCREW CABLE TO ALTERNATOR
999
SCREW CABLE TO FUSE BOX M 6X12
999
SCREW CONTROL UNIT
999
SCREW COMPRESSED AIR LINE MOUNTING
999
SCREW PLUG AT TANK
999
SCREW PLUG
999
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
999
SEAL RINGTO 345 430 78 01
999
SEAL RING
999
SEAL RING OIL DRAIN 30X36 MM
999
SEAL RING LINE CONNECTION
999
SEAL RINGTO 006 997 00 72
999
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
SEALING RING. SEAL RING ENGINE BREATHING
999
SEAL RING
999
RIVET
999
RIVET , Replaced By: A3079900197
999
TOOTHED WASHER AT BRAKE LINE COUPLING
999
CONNECTION FITTING , Replaced By: A0049971772
999
CONNECTION FITTING ,880809
999
SCREW-IN FITTING AT PRESSURE REGULATOR
999
SCREW-IN FITTING OIL LINE CONNECTION
999
GLAND , Replaced By: A0019901167
999
GLAND LINE CONNECTION
999
GLAND , Replaced By: A0019901967
999
CUTTING RING. GLAND LINE CONNECTION
999
GLAND LINE CONNECTION
999
TURNBUCKLE , Replaced By: A3859960034
999
GROOVED PIN
999
GROOVED PIN , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
PIN UPPER LEVER TO BRACKET, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
PIN , USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
PIN STRAP TO CONSOLE
999
PIN
999
SCREW CAP TO BRACKET,JB793543 USED WITH AIR BRAKE, FROM CHASSIS 589555
999
SCREW STEERING COLUMN JACKET TUBE TO FLOOR PLATE
999
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
999
SCREW ENGINE TO ENGINE FRONT SUPPORT
999
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
NUT , Replaced By: N000936012005
999
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
NUT , Replaced By: N308675012000
999
NUT FRONT WHEEL BRAKE TO STEERING KNUCKLE
999
NUT , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
NUT FRONT SPRINGS TO FRONT AXLE
999
NUT BRACKET TO SIDE MEMBER
999
NUT PULL ROD
999
NUT BRAKE ANCHOR PLATE TO REAR AXLE M 12X1.5
999
NUT SPRING BOLT
999
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
999
NUT L.H. THREAD
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
NUT , Replaced By: N304032008006
999
NUT LEVER TO SHIFTING SHAFT
999
NUT
999
NUT TACHOGRAPH TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW COLD START SYSTEM TO BRACKET
999
SCREW CROSS MEMBER TO SIDE MEMBERS
999
SCREW WATER SEPARATOR
999
SCREW BRACKET TO RETARDER
999
SCREW , Replaced By: N304017010040
999
SCREW , Replaced By: N304017010002
999
SCREW DAMPING PAD TO SUPPORT M 8X45,B 884219
999
SCREW CLUTCH TO FLYWHEEL M8X18,4 188090-4 277323
999
SCREW LINES TO BRACKET
999
SCREW PLUG SOCKET TO FRAME
999
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
999
SCREW POWER CYLINDER TO BEARING BRACKET
999
SCREW BRACKET TO INTAKE MANIFOLD
999
SCREW
999
SCREW CLAMP TO BRACKET
999
SCREW STRAP TO BRACKET
999
SCREW VALVE TO BRACKET, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
999
SCREW , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
HEX. HEAD. SCREW BUFFER TO CAB, ON VEHICLES LESS DB CAB
999
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
999
SCREW VALVE BODY ASSEMBLY TO TRANSMISSION M 8X55
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
LOCK RING
999
LOCK RING
999
LOCK RING SHACKLE TO BEARING BRACKET,965965
999
LOCK RING22X1.2,TO 001 431 71 14
999
LOCK RING BELT TIGHTENER
999
LOCK RING PIN TO BEARING BRACKET, 380.017,080,081,180,181 ONLY FOR SHORT CAB MERCEDES-BENZ
999
EXPANSION PLUG
999
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
WASHER PULL ROD TO SHIFT LEVER
999
HEADLESS SETSCREW
999
SPRING WASHER AT CAB FLOOR
999
SPRING WASHER CAB FLOOR
999
LOCK WASHER SUPPORT TO SIDE MEMBER
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
LOCK WASHER , Replaced By: N912004010102
999
LOCK WASHER
999
LOCK WASHER CLUTCH TO FLYWHEEL
999
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
999
LOCK WASHER PLUG SOCKET
999
WASHER , Replaced By: N000125017016
999
WASHER
999
WASHER SUPPORT TO FRAME,D 127794
999
WASHER GROUND CABLE
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
WASHER PLUG SOCKET TO BRACKET
999
WASHER FUSE TO FUSE BOX
999
COTTER PIN STRAP TO SUPPORT
999
COTTER PIN
999
COTTER PIN STRAP TO CONSOLE
999
COTTER PIN , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
COTTER PIN
