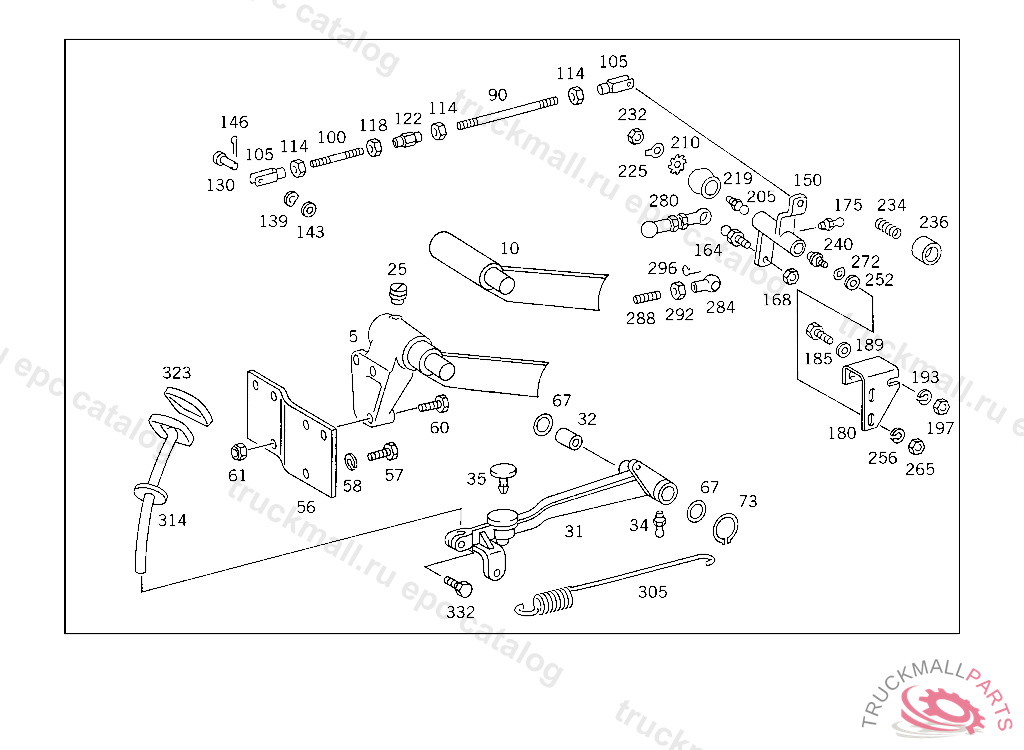

Поз.
Артикул
Описание
5
BEARING BRACKET PEDAL ASSEMBLY
10
BEARING
25
SCREW
31
PEDAL CLUTCH
32
BUSHING
34
GREASE NIPPLE PROTECTIVE TUBE
35
STOP
56
BRACKET
57
SCREW CONSOLE TO BRACKET M 12X1.5X25,20 L
58
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
60
SCREW BRACKET TO BUMPER STRUT
60
SCREW BRACKET TO FRAME M 12X35
60
SCREW CLAMP TO DRAG LINK M12X1.5X60,TO 682 460 31 05
60
SCREW , Replaced By: N000960012335
61
NUT SUPPORT TO SIDE MEMBER
67
SPACER RING PEDAL TO BEARING BRACKET
73
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
90
PULL ROD FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER I
100
PULL ROD
105
YOKE PULL ROD TO LEVER
114
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
118
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
122
TURNBUCKLE
130
PIN TRUCK-TRACTOR BRAKE VALVE
139
SPRING WASHER. LOCK RING SHIFTING ROD TO BRACKET
143
WASHER 10,5 DIN 433. WASHER , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
146
COTTER PIN
150
LEVER CLUTCH LINKAGE
164
BALL PIVOT RELEASE YOKE
168
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
175
GREASE NIPPLE INTERMEDIATE LEVER
180
BEARING BRACKET
185
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 12X30
189
WASHER SUPPORT TO FRAME,D 127794
193
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
197
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
205
BALL PIVOT DOUBLE LEVER TO TRANSMISSION CASE COVER
210
TOOTHED WASHER LINE CONNECTION TO FIRE WALL,684146
219
SEAL RING DOUBLE LEVER TO TRANSMISSION CASE COVER,585681
225
LOCK PLATE DOUBLE LEVER TO TRANSMISSION CASE COVER,585681
232
NUT SPARE WHEEL CARRIER
234
SPRING , USED WITH AIR BRAKE,FROM CHASSIS 589555JB793543
236
BUSHING DOUBLE LEVER TO BEARING BRACKET,585681
240
BALL PIVOT DOUBLE LEVER TO BEARING BRACKET,585681
252
WASHER DOUBLE LEVER TO BEARING BRACKET,585681
256
LOCK WASHER SUPPORT TO SIDE MEMBER
265
NUT
272
WASHER
280
ROD
284
BALL SOCKET R.H. THREAD
288
PULL ROD
292
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
296
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
305
SPRING CLUTCH PEDAL
314
PEDAL PLATE CLUTCH
323
PAD BRAKE AND CLUTCH LEVERS
332
SCREW , Replaced By: N304017010040
999
ROD FRONT
999
ROD REAR
