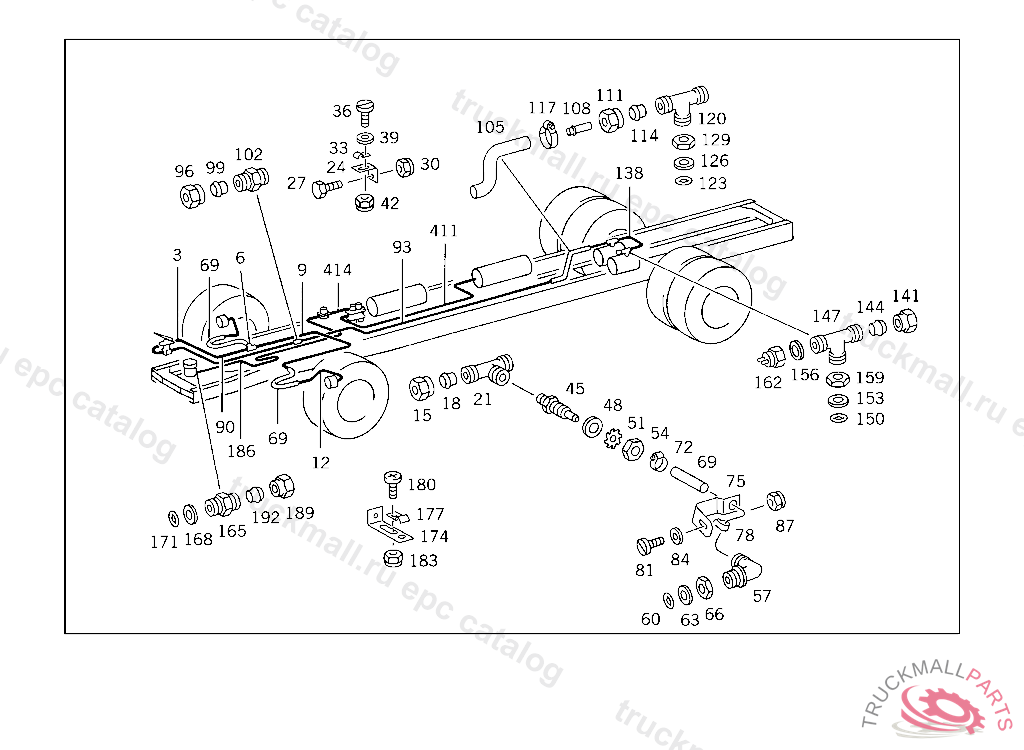

Поз.
Артикул
Описание
3
LINE FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING
6
LINE FROM T-FITTING TO LEFT HOSE FITTING, USED WITH AIR BRAKE, FROM CHASSIS 589555
9
LINE
12
LINE FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
15
UNION NUT LINE CONNECTION, Replaced By: N000000006239
18
GLAND , Replaced By: A0019901967
21
T-FITTING , Replaced By: A0009905270
21
T-FITTING
24
BRACKET PIPING
27
SCREW PLUG SOCKET TO FRAME
30
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
33
MOUNTING CLAMP. CLAMP DE-AERATION LINE TO BRACKET,4 465189
33
CLAMP FLEXIBLE SHAFT TO BRACKET, TO BE ADAPTED DURING ASSEMBLY
33
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
36
SCREW CABLE TO ALTERNATOR
39
WASHER PLUG SOCKET TO BRACKET
42
NUT PUMP TO BRACKET
45
CONNECTOR PARKING BRAKE VALVE
48
WASHER , Replaced By: N000125017016
51
TOOTHED WASHER AT BRAKE LINE COUPLING
54
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
57
ELBOW FITTING AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
60
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
63
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
66
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
69
HOSE FROM T-FITTING TO COMBINATION CYLINDER ON THE RIGHT,CONNECTION: "12"
72
LOOM TIE. CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
75
BRACKET COMPRESSED AIR LINE, BRAKE
78
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
78
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
81
SCREW CABLE TO ALTERNATOR
84
WASHER PLUG SOCKET TO BRACKET
87
NUT PUMP TO BRACKET
90
LINE FRONT LEFT AND BRAKE LINES
93
LINE FROM FITTING TO BRAKE HOSE
96
UNION NUT LINE CONNECTION, Replaced By: N000000006239
99
GLAND , Replaced By: A0019901967
102
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
102
CONNECTION FITTING , Replaced By: A0049971772
105
HOSE RIGHT COMBINATION CYLINDER,CONNECTION: "11,12", 11X630 MM,646985
108
LINE RIGHT COMBINATION CYLINDER,CONNECTION: "11,12",646985
111
UNION NUT LINE CONNECTION, Replaced By: N000000006239
114
GLAND , Replaced By: A0019901967
117
LOOM TIE. CLAMP COMPRESSED AIR LINE TO BRAKE CYLINDER
120
T-FITTING RELAY VALVE,CONNECTION: "20"
123
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
126
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
129
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
138
LINE FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: "11",12X1 MM,FB646985JB810330
141
UNION NUT LINE CONNECTION, Replaced By: N000000006239
144
GLAND , Replaced By: A0019901967
147
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
150
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
153
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
153
THRUST RING CHECK VALVE TO AIR RESERVOIR
156
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
159
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
162
SWITCH , Replaced By: A0015454114
162
SWITCH PRESSURE SWITCH
162
SWITCH SUPPLY PRESSURE,5 966147
162
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
165
CONNECTOR AIR RESERVOIR
168
SEAL RING LINE CONNECTION
171
SEAL RING LINE CONNECTION
174
BRACKET , Replaced By: A3184280240
177
CLAMP , Replaced By: A3129952420
180
SCREW CAP TO BRACKET
183
NUT PUMP TO BRACKET
186
LINE FROM AIR COMPRESSOR TO PRESSURE REGULATOR
189
UNION NUT LINE CONNECTION
192
GLAND LINE CONNECTION
411
LINE FROM 4-CIRCUIT PROTECTIVE VALVE,CONNECTION "22" TO INSIDE AIR RESERVOIR, USED WITH AIR BRAKE, FROM CHASSIS 589555
414
LINE FROM PRESSURE REGULATOR,CONNECTION "2",TO FITTING
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM,026097
999
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
999
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
999
SEAL RINGTO 006 997 00 72
999
HOSE , Replaced By: A0009872827
999
T-FITTING AIR RESERVOIR,CONNECTION: "31"
999
HANDLETO 000 434 23 01
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PISTONTO 345 431 70 05
