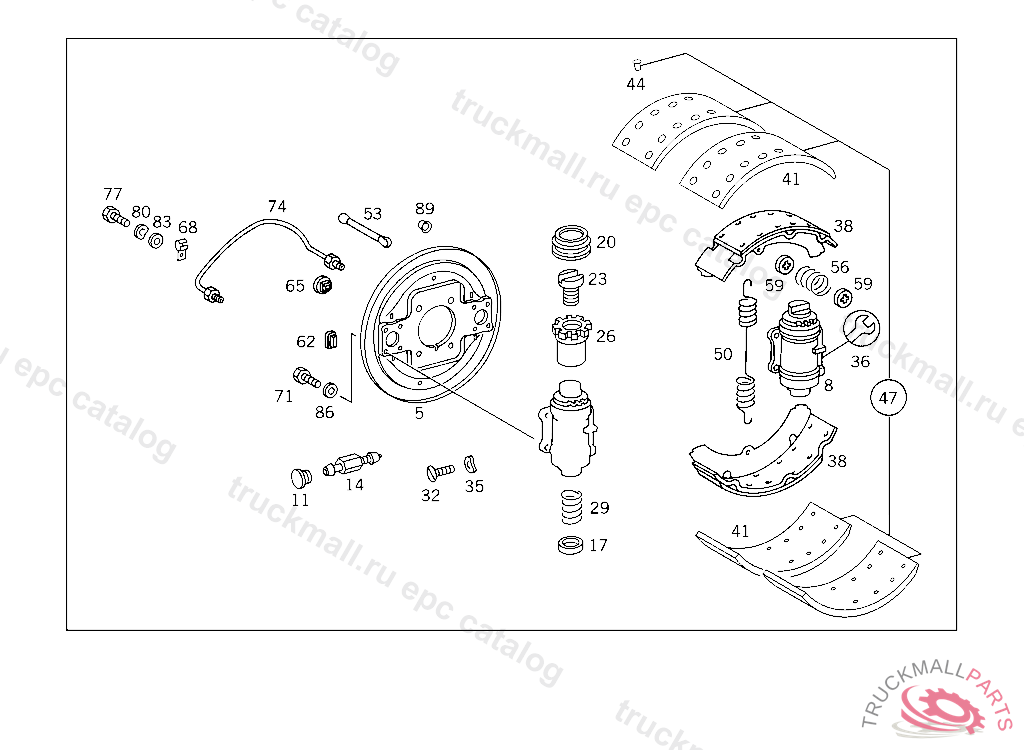

Поз.
Артикул
Описание
5
BRAKE ANCHOR PLATE RIGHT
5
BRAKE ANCHOR PLATE LEFT
8
BRAKE CYLINDER RIGHT REAR
8
BRAKE CYLINDER LEFT FRONT
8
BRAKE CYLINDER LEFT REAR
8
BRAKE CYLINDER RIGHT FRONT
11
DUST CAP
14
BLEEDER VALVE
17
CUP
20
DUST CAP
23
SCREW LEFT
23
SCREW RIGHT
26
NUT RIGHT
26
NUT LEFT
29
SPRING
32
SCREW
35
SPRING WASHER LICENSE PLATE TO BRACKET
35
WASHER , Replaced By: N000137006204
36
WHEEL BRAKE CYLINDER PARTS KIT
38
BRAKE SHOE WITH LINING
41
BRAKE LININGJURID
41
BRAKE LININGSUNDARAM ABEX
44
RIVET
44
RIVET
47
BRAKE LINING (BRAKE LINING SET),STANDARD 10.50 MM, MB 800,D 000898
47
BRAKE LINING (BRAKE LINING SET),REPAIR SIZE I 11.00 MM, MB 800,D 000897
47
BRAKE LINING (BRAKE LINING SET),REPAIR SIZE II 11.50 MM, MB 800,D 000897
47
BRAKE LINING ,D 000897, Replaced By: A6844232910
50
SPRING (RELEASE SPRING)
53
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE
56
SPRING BRAKE SHOE TO BRAKE ANCHOR PLATE
59
RETAINER BRAKE SHOE TO BRAKE ANCHOR PLATE
62
SCREW PLUG BRAKE ANCHOR PLATE,INSPECTION HOLE
65
SCREW PLUG ADJUSTMENT BRAKE SHOE
68
BRACKET BRAKE LINE
71
SCREW BRAKE CYLINDER TO BRAKE ANCHOR PLATE
74
LINE
77
SCREW BRACKET
80
WASHER BRACKET
83
PLATE BRACKET
86
PLATE
89
SCREW PLUG
999
DETENT BRAKE SHOE ADJUSTMENT
999
RETAINER
999
BRAKE SHOE LESS LINING
