Mercedes N912004010102 - КОЛЬЦО ПРУЖИННОЕ

TELCO-2,7 733.564

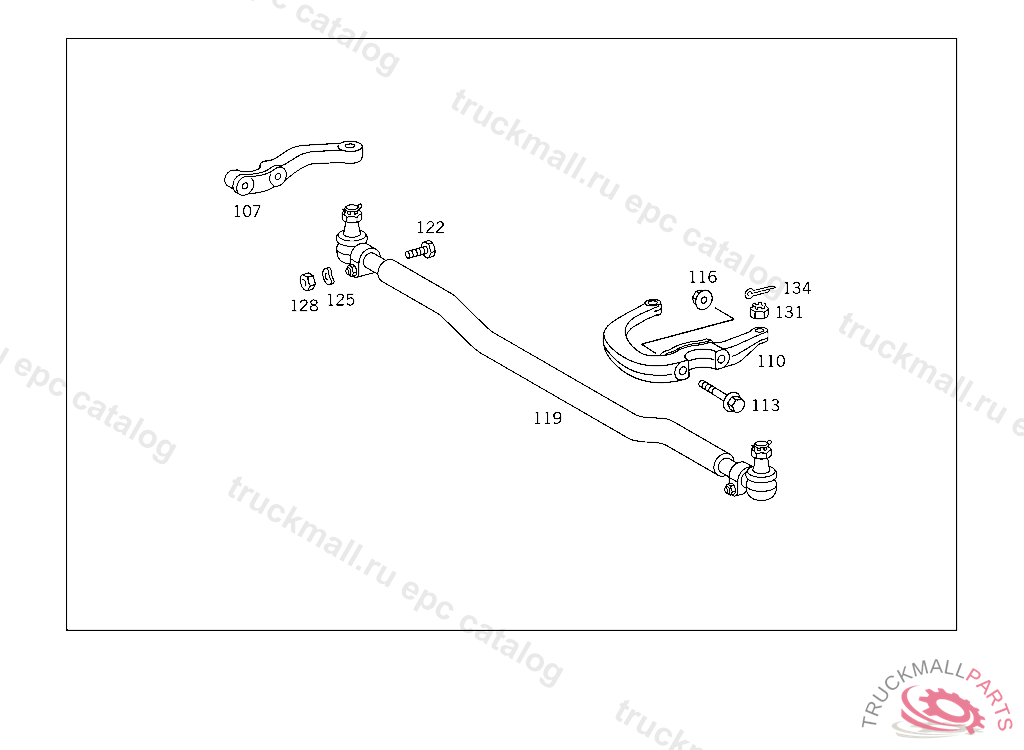

33 733.5 FRON AXLE - 100 FRONT AXLE IL. 4

Поз.
Артикул
Описание
107
A6843380107
STEERING ARM LEFT
107
A6843380008
STEERING ARM RIGHT
110
A6843384301
STEERING ARM LEFT MB800
110
A6843384401
STEERING ARM RIGHT MB800
113
A0009900807
SCREW STEERING ARM TO STEERING KNUCKLE M16X109
116
N000935016009
NUT FRONT WHEEL BRAKE TO STEERING KNUCKLE
119
A6843300003
TIE ROD
122
N000960010075
SCREW
125
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
128
N000979010001
NUT JOINT TO LEVER
131
N000979018001
NUT DRAG LINK TO PITMAN ARM
134
N000094004066
COTTER PIN
999
A0003309735
JOINT , Replaced By: A0023301335
999
A0003309835
JOINT L.H. THREAD LEMFOERDER, UP TO CHASSIS 910369 EXCEPT FOR, 501456-599999
999
A0003310060
OIL COLLECTOR
999
A0003310084
FITTING GREASE NIPPLE
999
A0003320760
DUST CAP STEERING KNUCKLE
999
A0003320860
DUST CAP STEERING KNUCKLE
999
A6843344204
DRUM HUBMB 800 II, 37 MM
999
A6843344404
DRUM HUBMB 800 I, 37 MM
999
N000094004061
COTTER PIN
