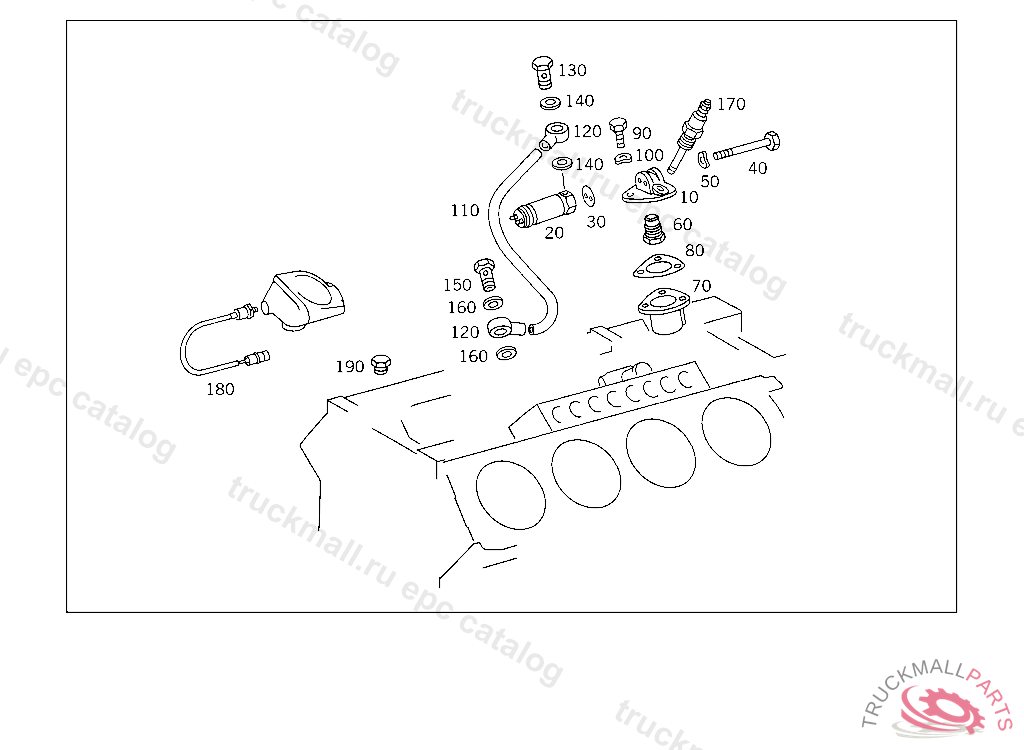

Поз.
Артикул
Описание
10
BRACKET NOZZLE HOLDER, Replaced By: A5410700840
10
BRACKET SOLENOID VALVE
10
BRACKET SOLENOID VALVE
10
BRACKET SOLENOID VALVE
20
VALVE (ELECTROMAGNET VALVE)
20
VALVE (ELECTROMAGNET VALVE)
20
VALVE (ELECTROMAGNET VALVE)
30
SEAL ELECTROMAGNET VALVE
40
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
40
HEXAGON HEAD BOLT
50
WASHER A 6,4 DIN 9021. WASHER OIL LINE TO BRACKET,K 093236
50
SPRING WASHER COVER TO THERMOSTAT HOUSING, ELIMINATED NO LONGER REQUIRED
60
NOZZLE
60
NOZZLE
60
NOZZLE FLAME START SYSTEM
70
BURNER , Replaced By: A5420700086
80
SEAL TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
90
SCREW STEERING SHAFT BEARING TO CAB M 8X20
90
SCREW STOP TO BATTERY CASE
90
HEXAGON HEAD BOLT
100
SPRING WASHER STEERING SHAFT BEARING TO CAB
110
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
120
BANJO UNION FROM INJECTION PUMP TO VALVE
120
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM,5 999999K 040105
130
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
130
HOLLOW SCREW FUEL LINES TO SOLENOID VALVE
140
SEAL RING PNEUMATIC VALVE
140
SEAL RING
140
SEAL RING SCREW PLUG
150
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
150
HOLLOW SCREW FUEL LINE LEADING TO FUEL PUMP
160
SEAL RING SCREW PLUG
160
SEAL RING
170
HEATER PLUG
170
HEATER PLUG
180
SWITCH,AUTOMATIC ON RIGHT CYLINDER HEAD
190
SCREW PLUG ,819969
999
BANJO UNION1/4"
999
BANJO UNION DIAPHRAGM KIT
999
LOOM TIE ELECTRIC CABLE MOUNTING
999
GLOW PLUG
999
FLANGE TO LOCK THE BORE MEANT FOR FLAME START SYSTEM
999
ELBOW
999
PLASTIC PIPE FROM WARNING INDICATOR TO AIR CLEANER 1/4", ORDER BY THE METER
999
NEG. CABLE FLAME STARTING SYSTEM
999
NEG. CABLE FLAME STARTING SYSTEM
