Поз.
Артикул
Описание

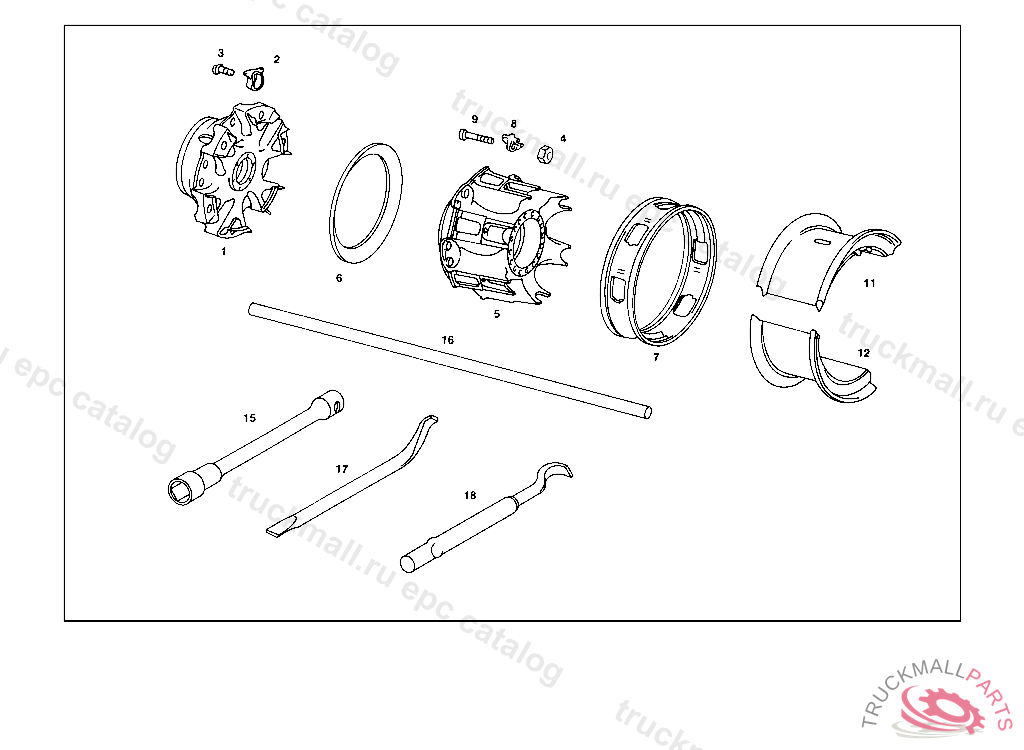

1
WHEEL SPIDER
2
CLAMPING PLATE TRILEX RIM TO FRONT WHEEL SPIDER,5 142384
2
CLAMPING PLATE TRILEX RIM TO FRONT WHEEL SPIDER,5 142384
2
CLAMPING PLATE , Replaced By: A3464015069
3
SCREW RIM BOW TO WHEEL SPIDER M 18X60
3
SCREW RIM BOW TO WHEEL SPIDER M 18X60
4
NUT RIM BOW TO FRONT WHEEL SPIDER
4
NUT RIM BOW TO FRONT WHEEL SPIDER
5
WHEEL SPIDER *** 10.00-20.11.00-20
6
OIL COLLECTOR
7
RING124 MM
7
RING124 MM
8
CLAMPING SHOE ,5 142384
9
SCREW RIM BOW TO WHEEL SPIDER,4 249811
11
RIM BOW LONG
12
RIM BOW SHORT
15
SOCKET WRENCH
16
TURN HANDLE
17
TIRE LEVER
18
TIRE LEVER
999
SIDE RING , Replaced By: A0004017406
999
TURN HANDLE , Replaced By: N000900018100
999
SOCKET WRENCH , Replaced By: A0005813601
999
TIRE LEVER , Replaced By: A0005812158
999
SCREW , UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE SA 20 143
999
SCREW BRAKE DRUM TO WHEEL HUB AND TO WHEEL SPIDER,RESP.
999
THRUST WASHER , UP TO FRONT AXLE 32935
999
SUPPORTING SLEEVE , UP TO FRONT AXLE 32935
999
OIL COLLECTOR , UP TO FRONT AXLE 032935
999
FOLLOWER , UP TO FRONT AXLE 32935
999
RING , UP TO FRONT AXLE 32935
999
SCREW , UP TO FRONT AXLE 32935
999
LOCK , UP TO FRONT AXLE 32935
999
PROPELLER SHAFT ,032936
999
VALVE , UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535803,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535804-599999 SEE SA 20 145,20 147,20 150,20 152
999
CLAMPING PLATE , Replaced By: A3874010169
999
WHEEL SPIDER FRONT AXLE, UP TO FRONT AXLE 033066
999
CLAMPING SHOE , Replaced By: A3874020268
999
SCREW , UP TO FRONT AXLE 32935
999
NUT , Replaced By: A0009901450
999
WHEEL MOUNTING BOLT
999
SPHERICAL RING REAR DISC WHEEL
999
WHEEL HUB
999
DISC WHEEL , Replaced By: A0014016801, +001A0004017406
999
DISC WHEEL , Replaced By: A0024013501, +001A0004017406
999
BRAKE DRUM
999
WHEEL MOUNTING BOLT
999
WHEEL HUB ,032936
999
OIL COLLECTOR ,032936
999
OIL COLLECTOR , UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535803,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535804-599999 SEE SA 20 145,20 150
999
WHEEL SPIDER , FROM FRONT AXLE 032936 UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535803,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535804-599999 SEE SA 20 145,20 150
999
NUT ,5 142385
999
SCREW
999
DISC WHEEL , Replaced By: A0024017101, +001A0004017406
999
WHEEL HUB
999
OIL COLLECTOR
999
VALVE EXTENSION
999
VALVE EXTENSION
999
COTTER PIN RIM BOW TO FRONT WHEEL SPIDER
999
COTTER PIN LEVER TO SUPPORT
999
LOCK WASHER SUPPORT TO SIDE MEMBER
999
NUT , Replaced By: N308673014001
999
NUT BRACKET TO SIDE MEMBER
999
SCREW STRUT TO FRAME M 14X1.5X42
999
SNAP RING , UP TO FRONT AXLE 32935
999
NUT , Replaced By: N074361022205
999
LOCK WASHER DISC WHEELS TO FRONT AND REAR AXLES
999
NUT BRACKET TO SIDE MEMBER,K 035196
