Поз.
Артикул
Описание

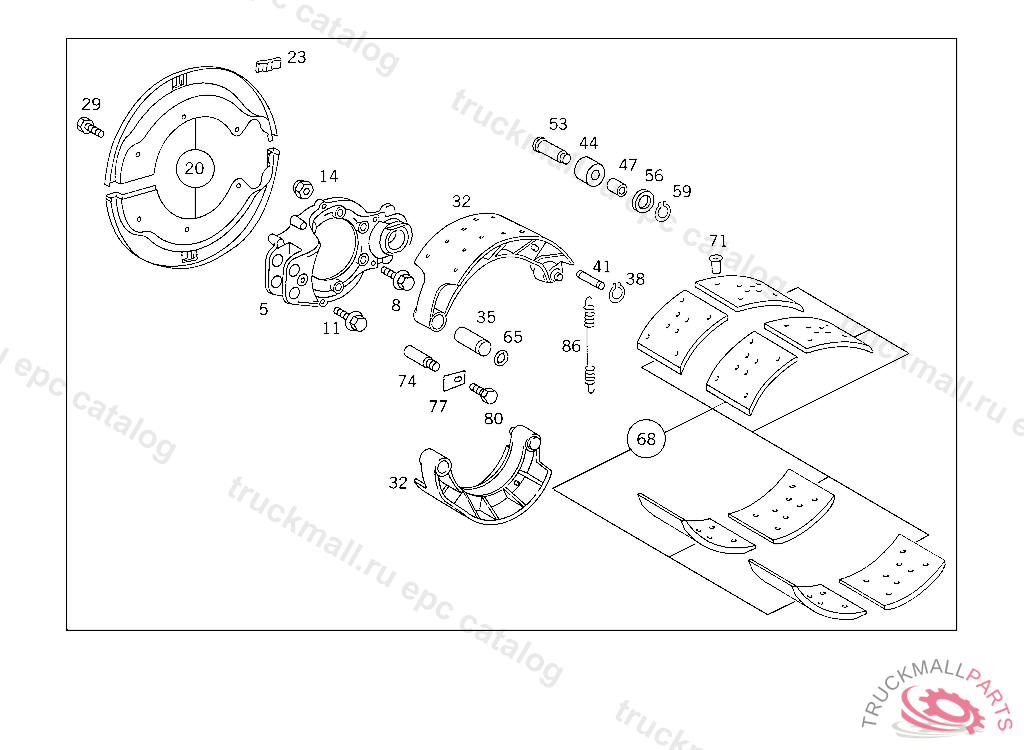

5
BRAKE ANCHOR (BRAKE ANCHOR),739692
8
SCREW REAR WHEEL BRAKE TO REAR AXLE
11
SCREW BEARING BRACKET TO BRAKE ANCHOR
14
NUT WITH COLLAR
14
NUT BEARING BRACKET TO BRAKE ANCHOR
20
PROTECTIVE PLATE PARTS KIT, TO BE ADAPTED DURING ASSEMBLY
23
PLUG PROTECTIVE PLATE
29
SCREW , Replaced By: N304017010042
32
BRAKE SHOE LESS LINING
35
BUSHING ,669845
35
BUSHING ,669845
38
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
41
PIN RELEASE SPRING
44
ROLLER , Replaced By: A3014200039, +002A0039971548
47
BUSHING
47
BUSHING
53
PIN BRAKE SHOE ROLLER
56
FITTED WASHER BRAKE SHOE ROLLER
59
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
65
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
68
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
68
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
68
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
71
RIVET
71
RIVET
71
RIVET
74
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
77
LOCK BRAKE SHOE TO BRAKE ANCHOR
80
SCREW , Replaced By: N910106010018
86
SPRING (RELEASE SPRING)
