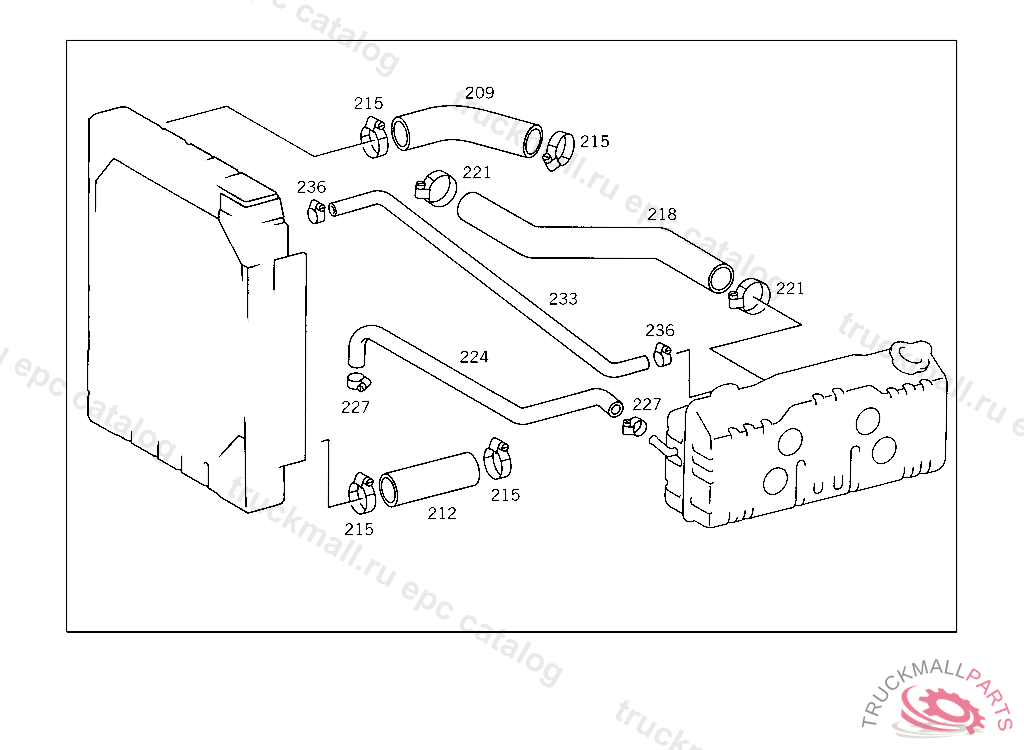

Поз.
Артикул
Описание
209
HOSE FROM INLET,OR COOLING WATER LINE,TO THERMOSTAT
212
HOSE LOWER COOLING WATER LINE TO RADIATOR & OIL COOLER
215
LOOM TIE. CLAMP FEED, FROM ENGINE TO RETARDER
215
CLAMP HOSE FASTENING 50-70X13 MM
215
CLAMP , Replaced By: N000000000672
218
HOSE FROM WATER PUMP TO EXPANSION TANK 28X42X650MM,630855
218
HOSE FROM COOLING WATER FEED LINE TO CONTROL VALVE
221
LOOM TIE HOSE TO FILLER NECK
221
LOOM TIE , Replaced By: A3509978190
224
HOSE COOLING WATER LINE TO EXPANSION TANK 12X24X640 MM,630855
224
HOSE FROM EXPANSION TANK TO RADIATOR
227
LOOM TIE HOSE TO HEATING PIPE
227
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
227
CLAMP HOSE TO FITTING AND TO OIL TANK
227
LOOM TIE. CLAMP HOSE TO HEATING PIPE
227
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
233
HOSE18X20X440 MM,630855
233
HOSE FROM RADIATOR TO EXPANSION TANK 8X15X500 MM,617873630854 ORDER BY THE METER
236
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
236
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
236
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
236
CLAMP HOSE TO FITTING AND TO OIL TANK
236
LOOM TIE. CLAMP HOSE TO HEATING PIPE
236
PART NAME MISSING. LOOM TIE FROM RADIATOR TO EXPANSION TANK,630854
999
VALVE
999
LOOM TIE , Replaced By: N916017050000
999
WASHER
999
GASKET
999
SPACER TUBE , Replaced By: A3199910540
999
CLAMP , Replaced By: A0019972590
999
RADIATOR , Replaced By: A3505007203
999
SUPPORT RADIATOR MOUNTING,617873
999
HOSE , ORDER BY THE METER617872
