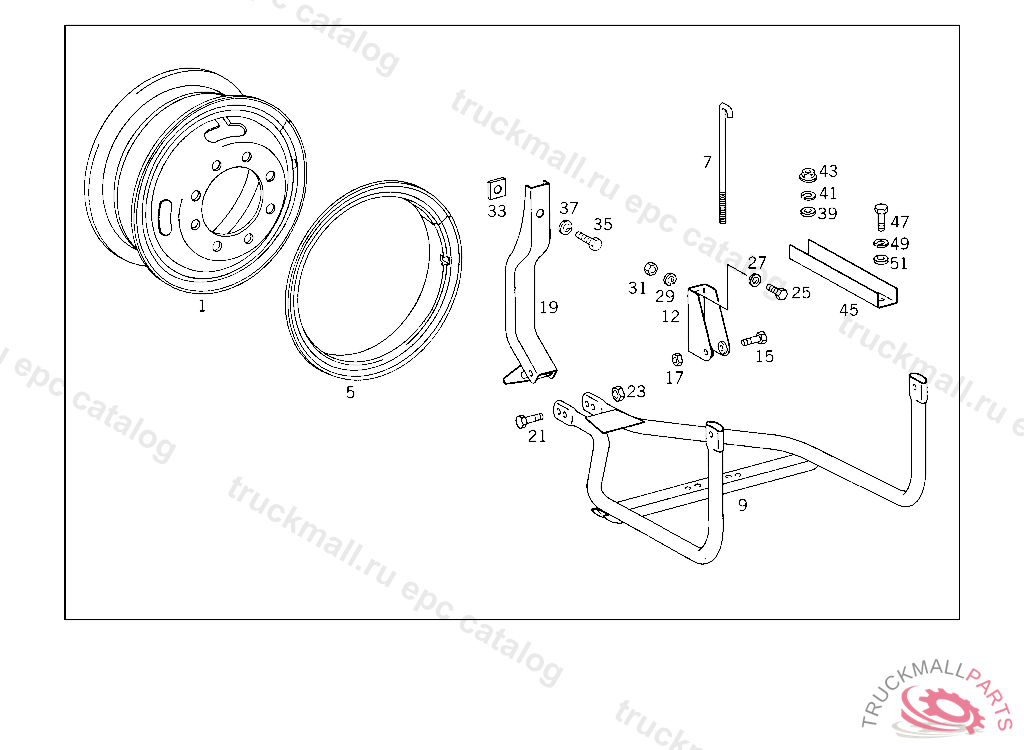

Поз.
Артикул
Описание
1
DISC WHEEL"KRONPRINZ"
1
DISC WHEEL"KRONPRINZ"
1
DISC WHEELSUEDRAD
1
DISC WHEELSUEDRAD
1
DISC WHEEL"LEMMERZ"
1
DISC WHEEL"LEMMERZ"
1
DISC WHEEL , Replaced By: A0024012301, +001A0004015606
1
DISC WHEEL , Replaced By: A0024012101, +001A0004015606
1
DISC WHEEL , Replaced By: A0024012201, +001A0004015606
5
SIDE RING
7
HOOK BOLT SPARE WHEEL MOUNTING, 734559
7
HOOK BOLT , Replaced By: A3524030829
9
BRACKET , Replaced By: A3544000339
9
BRACKET SPARE WHEEL MOUNTING
12
BRACKET SPARE WHEEL MOUNTING
15
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
17
NUT BRACKET TO SIDE MEMBER,K 035196
17
NUT , Replaced By: N308673014001
19
CLAMPING BRACKET SPARE WHEEL MOUNTING
19
CLAMPING BRACKET , Replaced By: A3544000687
21
SCREW CONSOLE TO RIGHT SIDE MEMBER M 14X55
23
NUT , Replaced By: N308673014001
23
NUT BRACKET TO SIDE MEMBER,K 035196
25
SCREW , Replaced By: N308676012026
25
SCREW BRACKET TO FRAME M 12X35
25
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
27
WASHER
29
LOCK WASHER FITTING TO BRACKET
31
NUT STRAP TO SUPPORT
33
PLATE WITH THREADED HOLES BRACKET TO FRAME
35
SCREW BRACKET TO FRAME
37
LOCK WASHER SPARE WHEEL CARRIER
37
LOCK WASHER , Replaced By: N912004022101
39
WASHER SPARE WHEEL CARRIER
41
LOCK WASHER SPARE WHEEL CARRIER
41
LOCK WASHER , Replaced By: N912004022101
43
NUT DISC WHEELS TO FRONT AND REAR AXLES,4 368902
43
NUT , Replaced By: N074361022205
45
CONNECTING RAIL SPARE WHEEL MOUNTING
47
SCREW , Replaced By: N308676018009
47
SCREW SUPPORTING ARM TO BELL HOUSING M 18X60
47
SCREW , Replaced By: N000960018109
49
LOCK WASHER BELL HOUSING TO TRANSMISSION
51
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
SIDE RING
999
DISC WHEELSUEDRAD, Replaced By: A0004006002
999
DISC WHEELSUEDRAD
999
DISC WHEELKRONPRINZ
999
DISC WHEEL , Replaced By: A0034010601
999
DISC WHEELLEMMERZ
999
DISC WHEEL , Replaced By: A0024010101
