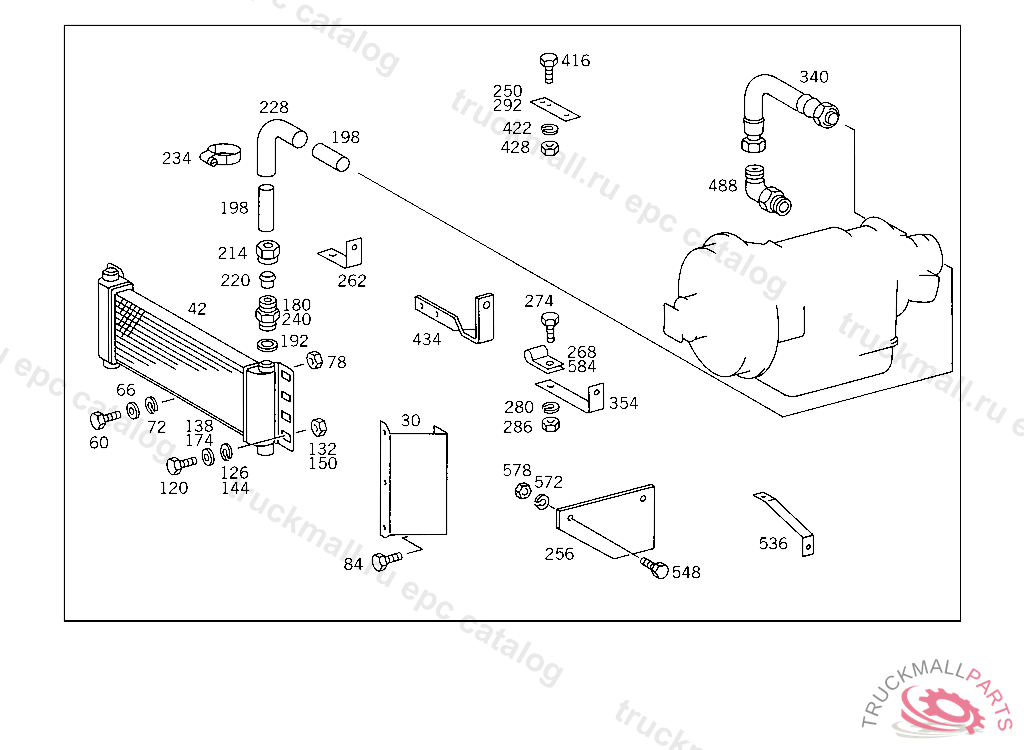

Поз.
Артикул
Описание
30
BRACKET OIL COOLER
42
RADIATOR OIL,5 360279
60
SCREW PIPE CLAMP
60
SCREW , Replaced By: N304017008021
60
SCREW CLAMP TO BRACKET AND TO PIPE
66
WASHER BRACKET TO CROSS MEMBER
72
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
78
NUT
84
SCREW DUMPER SHAFT,5 515436
84
SCREW , Replaced By: N304014010015
120
SCREW PIPE CLAMP
120
SCREW , Replaced By: N304017008021
120
SCREW PIPE CLAMP
120
SCREW , Replaced By: N304017008021
126
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
132
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
132
NUT , Replaced By: N913004008001
132
NUT
138
WASHER BRACKET TO LEFT SIDE MEMBER
138
WASHER BRACKET TO LEFT SIDE MEMBER
138
WASHER , Replaced By: N009021008213
138
WASHER BRACKET TO CROSS MEMBER
144
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
150
NUT BALL PIVOT TO LEVER
174
WASHER BRACKET TO LEFT SIDE MEMBER
174
WASHER , Replaced By: N009021008213
180
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
180
FITTING OIL LINE TO RADIATOR
192
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
198
OIL PIPE FEED 2560 MM
198
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
214
UNION NUT LINE MOUNTING
214
UNION NUT LINE MOUNTING,4 811388
220
SEAL CONE LINE MOUNTING
220
GLAND , Replaced By: A0019901167
228
PIPE BETWEEN THE LINES 480 MM
228
PIPE OIL LINE, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
234
CLAMP25-40X13 MM
234
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
240
CONNECTION FITTING LINE CONNECTIONS
240
CONNECTION FITTING , Replaced By: N003902018002
250
BRACKET HEATING WATER LINE
250
BRACKET HEATING WATER LINE
250
BRACKET HEATING WATER LINE
250
BRACKET HEATING WATER LINE
250
BRACKET , Replaced By: A3124761535
256
BRACKET LINE MOUNTING
262
BRACKET , Replaced By: A3604293140
262
BRACKET LINE MOUNTING
268
CLAMP FEED LINE TO THERMOSTAT
274
SCREW LICENSE PLATE TO BRACKET
274
SCREW , Replaced By: N304017006020
280
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
286
NUT PUMP TO BRACKET
286
NUT , Replaced By: N913004006001
286
NUT BALL PIVOT TO LEVER
292
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
340
HOSE RETURN TO OIL FILTER
340
HOSE RETURN TO OIL FILTER
340
HOSE RETURN TO OIL FILTER
340
HOSE RETURN TO OIL FILTER
354
BRACKET FEED AND RETURN LINES TO RETARDER 110 MM LANG, TO BE ADAPTED DURING ASSEMBLY
354
BRACKET , Replaced By: A3274925819
354
BRACKET OIL LINE MOUNTING
354
BRACKET OIL LINE MOUNTING
354
BRACKET WITH STABILIZER ROD TO FRAME
354
BRACKET LINE MOUNTING
354
BRACKET POS. CABLE,XB209706
354
BRACKET LINE MOUNTING
354
BRACKET LINE TO CAB CONSOLE
354
BRACKET , Replaced By: A3812710540
354
BRACKET LINE TO CAB CONSOLE
416
SCREW BRACKET TO SIDE MEMBER
416
SCREW , Replaced By: N304017010002
416
SCREW AT FRAME,5 518379
416
SCREW , Replaced By: N000933008302
416
SCREW , Replaced By: N304017008034
416
SCREW , Replaced By: N304017008034
416
SCREW END PIECE TO EXHAUST PIPE M 10X25
416
SCREW END PIECE TO EXHAUST PIPE M 10X25
422
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
422
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
422
LOCK WASHER FITTING TO BRACKET
428
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
428
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
428
NUT , Replaced By: N913004008001
428
NUT
428
NUT BRACKET TO SUPPORT AND TO END PIECE
428
NUT END PIECE TO EXHAUST PIPE
428
NUT STRAP TO SUPPORT
428
NUT STRAP TO BRACKET
428
NUT STRAP TO BRACKET
428
NUT , Replaced By: N910113010000
434
BRACKET LINE TO SIDE MEMBER,4 811388
434
BRACKET LINE TO SIDE MEMBER,4 811388
488
ELBOW FITTING RETURN,4 811389
536
BRACKET LINE MOUNTING,4 460465
548
SCREW COVER PLATE TO BRACKET
572
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
578
NUT PUMP TO BRACKET
578
NUT PUMP TO BRACKET
578
NUT , Replaced By: N913004006001
578
NUT BALL PIVOT TO LEVER
584
CLAMP LINE TO BRACKET, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
584
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
584
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
584
CLAMP FEED LINE TO THERMOSTAT
999
LINE , Replaced By: A0005516456
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
RADIATOR CAPTO 309 500 17 02
999
SEAL CONE LINE CONNECTION
999
HOSE BRAKE VALVE,CONNECTION: "30"
999
BRACKET , Replaced By: A3464296040
999
PIPE RETURN
999
PIPE FEED
999
PIPE FEED AND RETURN
999
PIPE FEED
999
RADIATOR
999
RADIATOR ,4 400466
999
BRACKET LINE TO SIDE MEMBER,4 967508
999
PIPE , Replaced By: A3952571466
999
PIPE , Replaced By: A0004291601
999
RADIATORBEHR, NOT USED
999
RADIATOR , Replaced By: A3555010901
999
RADIATOR , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 908891, Replaced By: A3555011301
999
RADIATOR
999
HOSE , Replaced By: A3559970782
999
HOSE FEED AND RETURN
999
HOSE HOSE TO OIL FILTER
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
FILTER OIL FILTER
999
ELBOW FITTING RETURN LINE TO TRANSMISSION
999
HOSE , Replaced By: A3819970682
999
BRACKET , Replaced By: A3914290140
999
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
999
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
999
NUT LINE CONNECTION
999
GLAND , Replaced By: A0019901267
999
FITTING HIGH PRESSURE LINE TO STEERING
999
UNION NUT LINE CONNECTION, Replaced By: N000000006243
999
CLAMP , Replaced By: N000000000671
