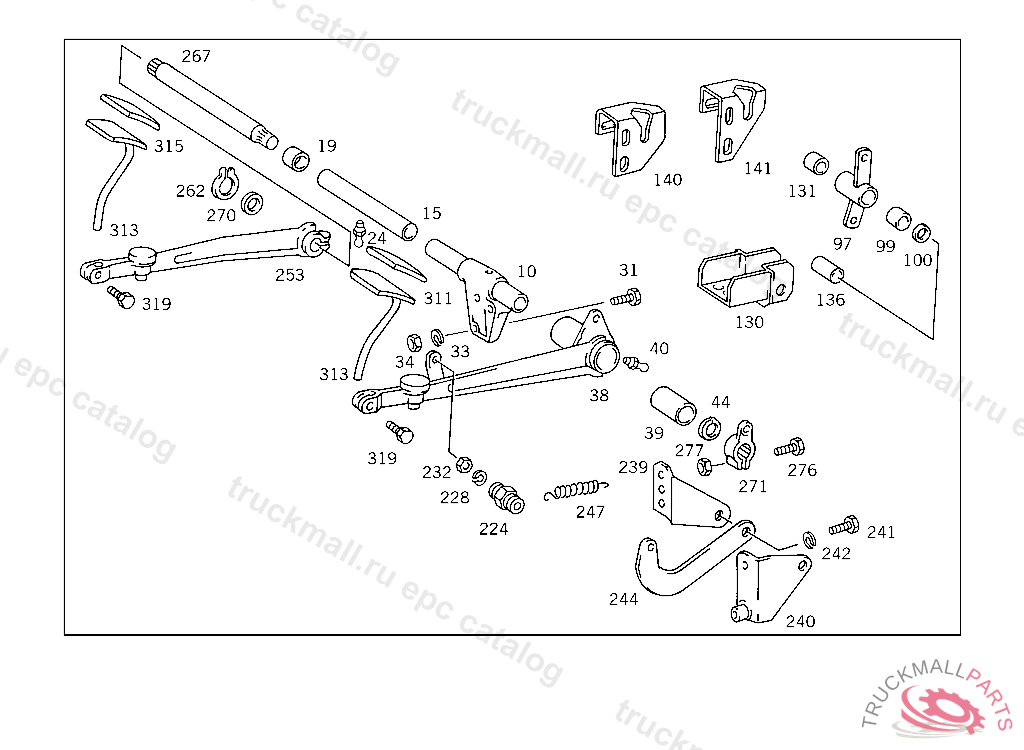

Поз.
Артикул
Описание
10
BEARING BRACKET PEDAL ASSEMBLY, 601109
15
BEARING PEDAL ASSEMBLY, 601109
19
BUSHING
24
GREASE NIPPLE PROTECTIVE TUBE
31
SCREW VIBRATION ABSORBER TO BRACKET
31
SCREW TORSION BAR TO SHACKLE,5 903514
31
SCREW ,5 903514, Replaced By: N000960012353
33
LOCK WASHER FITTING TO BRACKET
34
NUT PULL ROD
38
PEDAL CLUTCH, 10/50 4 406817 20/60 4 3827325 137475
39
BUSHING
40
GREASE NIPPLE PROTECTIVE TUBE
44
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
97
LEVER CLUTCH COMPENSATION DOUBLE LEVER, 10/50 4 406817 20/60 4 382732
97
LEVER PIN TO CHASSIS, 908307
97
LEVER CLUTCH COMPENSATION DOUBLE LEVER, 10/50 4 406817 20/60 4 382732
97
LEVER , 10/50 4 406817 20/60 4 382732 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 444863, Replaced By: A3552900128
97
LEVER , 10/50 4 406817 20/60 4 382732 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 444863, Replaced By: A3552900028
99
NEEDLE BEARING , Replaced By: A0119813410
99
NEEDLE BEARING , Replaced By: A0119813410
99
NEEDLE BEARING
100
SEAL RING , Replaced By: A0069979147
100
SEAL RING , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
130
BRACKET CLUTCH COMPENSATION DOUBLE LEVER, 10/50 4 406817 20/60 4 3827325 444863
130
BRACKET CLUTCH COMPENSATION DOUBLE LEVER,5 444864
130
BRACKET CLUTCH COMPENSATION DOUBLE LEVER,5 444864
131
SPACER TUBE ENGINE ALONGSIDE MOUNTING BRACKET, 10/50 4 406817 20/60 4 382732
136
SPACER TUBE DOUBLE LEVER BEARING
136
PIN DOUBLE LEVER TO BRACKET,5 444864
136
BUSHING , Replaced By: A3184310053
141
BEARING BRACKET CLUTCH OPERATION, 908307 10/50 4 406816 20/60 4 382731
224
PIN ,734154, Replaced By: A3509917020, +001A3762907034
224
PIN , Replaced By: A3412917074
228
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
232
NUT BRACKET TO SIDE MEMBER,K 035196
232
NUT , Replaced By: N308673014001
239
BRACKET
240
BRACKET RELEASE SPRING, 601109
241
SCREW BRACKET TO FRAME SIDE MEMBER
242
LOCK WASHER FITTING TO BRACKET
244
LEVER RELEASE SPRING, 601108
244
LEVER , 601109 10/20 UP TO IDENT NO. 4 203060, 50/60 UP TO IDENT NO. 4 200504 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3552910132, +001A3522910674
244
LEVER CLUTCH PEDAL RELEASE SPRING, 10/20 FROM IDENT NO.4 203061, 50/60 FROM IDENT NO. 4 200505
247
SPRING BETWEEN CLUTCH PEDAL AND LEVER, 601109
247
SPRING (RELEASE SPRING)
253
PEDAL BRAKE
262
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
267
BEARING TUBE BRAKE PEDAL, 629395
267
BEARING TUBE BRAKE PEDAL, 601109
270
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
271
LEVER BRAKE PEDAL
276
SCREW MOUNTING AND RAIL TO LEAF SPRING
277
NUT STRAP TO BRACKET
277
NUT , Replaced By: N910113010000
311
PEDAL PLATE CLUTCH
313
PEDAL PLATE BRAKE
315
PAD BRAKE AND CLUTCH LEVERS
319
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
WASHER CLUTCH PEDAL AND BRAKE PEDAL
999
BOOT INSIDE
999
LEVER CLUTCH ACTUATING PARTS, 908307
999
ROD CLUTCH OPERATION
999
REPAIR KIT CLUTCH ACTUATING PARTS, DELIVER ADDITIONALLY:1X 352 991 09 15,1X 000463 017001,1X 000934 016011,2X 006797 012151,1X 352 991 04 15
999
REPAIR KIT CLUTCH ACTUATING PARTS
999
SEAL RING
999
REPAIR KIT , Replaced By: A3522905639
999
RUBBER BUFFER
999
BUSHING
999
BUSHING CLUTCH COMPENSATION DOUBLE LEVER,5 444864
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PINROCKINGER TYP 260 G140
999
WASHER
999
SCREW PISTON TO BEARING BRACKET
999
SCREW ENGINE ALONGSIDE MOUNTING BRACKET M 16X100,5 444864
999
SCREW CLUTCH TO FLYWHEEL
999
SCREW BRACKET TO TRANSMISSION,4 411810
999
SCREW , Replaced By: N304017008016
999
NUT STRAP TO SUPPORT
999
NUT , Replaced By: N308675012000
999
NUT , Replaced By: N000936012005
999
SCREW TORSION BAR TO SHACKLE M 12X85,5 255315
999
SCREW , Replaced By: N308676012031
999
SCREW , Replaced By: N308676012015
999
SCREW PISTON TO AIR-SPRING-BELLOWS SUPPORT
999
SCREW , Replaced By: N308676012026
999
SCREW CONSOLE TO SIDE MEMBER
999
WASHER FENDER BRACKET TO SIDE MEMBER
999
WASHER , Replaced By: N009021010209
999
WASHER BRACKET TO COVERING
999
SNAP RING DOUBLE LEVER TO BRACKET
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT CAB FLOOR
999
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
999
SCREW LEFT AND RIGHT CONSOLES TO CAB
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW , Replaced By: N308676012011
999
BALL SOCKET FROM INTERMEDIATE LEVER II TO RELEASE YOKE, 10/50 4 406817 20/60 4 382732
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
NUT , Replaced By: N910113010000
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
NUT , Replaced By: N000936012017
