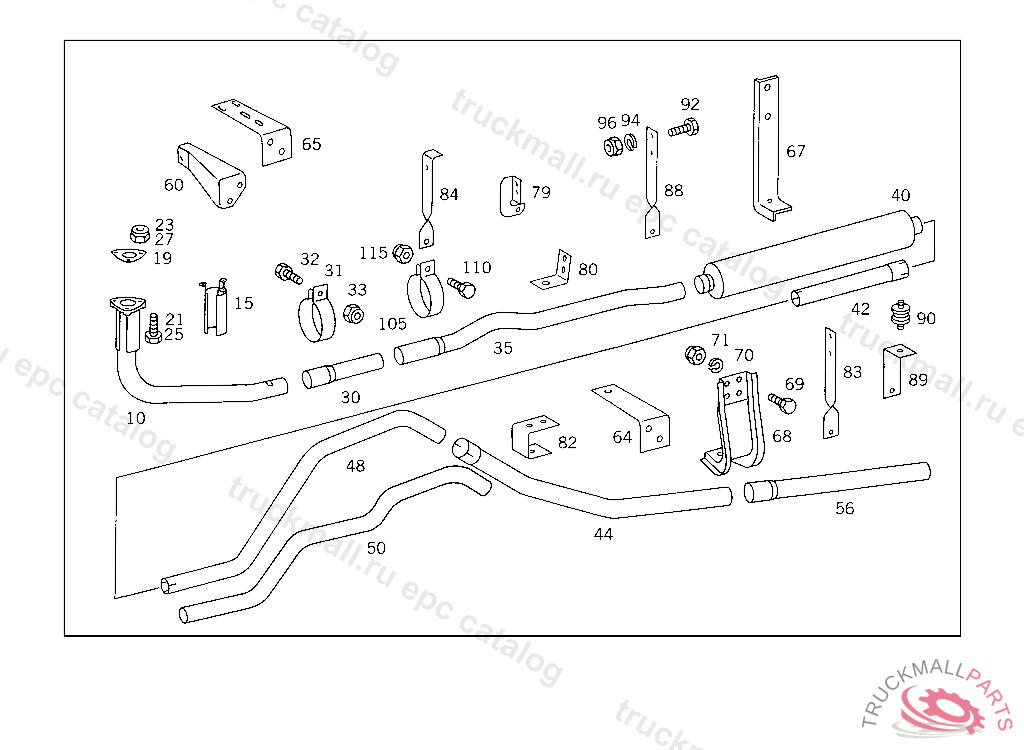

Поз.
Артикул
Описание
10
EXHAUST PIPE FRONT, FIRST PART,5 207016
10
EXHAUST PIPE FRONT, FIRST PART,5 207015
19
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, ELIMINATED - NO LONGER REQUIRED
19
FLANGE GASKET , Replaced By: A4424920080
25
SCREW BRACKET TO TRANSMISSION
25
SCREW CONNECTOR TO EXHAUST MANIFOLD
27
NUT CONNECTOR TO EXHAUST MANIFOLD
30
CONNECTOR INTERMEDIATE PIECE,FRONT
31
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
32
SCREW END PIECE TO EXHAUST PIPE M 10X25
33
NUT STRAP TO BRACKET
33
NUT , Replaced By: N910113010000
35
FRONT EXHAUST PIPE FRONT,SECOND PART,5 207016
35
FRONT EXHAUST PIPE FRONT,SECOND PART, 8727895 207015
35
FRONT EXHAUST PIPE FRONT,SECOND PART, 872788
40
EXHAUST MUFFLER
42
CONNECTOR REAR
44
REAR EXHAUST PIPE REAR
48
REAR EXHAUST PIPE CENTRAL FRONT, FROM IDENT NO.872789 ALSO INSTALLED ON 500033-599999
48
REAR EXHAUST PIPE CENTRAL FRONT, UP TO IDENT NO.872788 EXCEPT FOR 500033-599999
50
CONNECTOR CENTRAL,5 207016
56
CONNECTOR (TAIL PIPE)
60
SUPPORT FRONT EXHAUST PIPE
64
SUPPORT AT SIDE MEMBER, UP TO IDENT NO.872788 EXCEPT FOR 500033-599999
65
SUPPORT EXHAUST MUFFLER SUSPENSION
67
SUPPORT FRONT AND REAR EXHAUST MUFFLERS
68
SUPPORT REAR EXHAUST PIPE TO FRAME
69
SCREW BRACKET TO SIDE MEMBER
69
SCREW , Replaced By: N304017010002
69
SCREW PIPE CLAMP
69
SCREW , Replaced By: N304017008021
69
SCREW BRACKET TO CROSS CONNECTION STRUT
69
SCREW , Replaced By: N304017008034
69
SCREW PIPE CLAMP
69
SCREW , Replaced By: N304017008021
70
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
71
NUT STRAP TO BRACKET
71
NUT , Replaced By: N910113010000
71
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
NUT , Replaced By: N913004008001
79
BRACKET , NOT USED
80
BRACKET AUTOMATIC LOAD-DEPENDING BRAKE SHUTTLE VALVE, 415 5 014668 416 5 000515 417 4 972023
82
BRACKET EXHAUST PIPE TO CROSS MEMBER
84
BRACKET REAR EXHAUST PIPE, 872788
88
BRACKET EXHAUST
89
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
89
BRACKET PROTECTIVE PLATE
89
BRACKET EXHAUST PIPE
90
RUBBER BUFFER BRACKET TO SUPPORT
92
SCREW END PIECE TO EXHAUST PIPE M 10X25
92
SCREW PIPE CLAMP
92
SCREW , Replaced By: N304017008021
92
SCREW CLAMP TO BRACKET AND TO PIPE
94
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
94
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
96
NUT BATTERY CABLE
96
NUT BRACKET TO SUPPORT AND TO END PIECE
96
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
96
NUT , Replaced By: N913004008001
105
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
105
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
105
CLAMP60.5 MM,4 613839
105
CLAMP , Replaced By: N000000001642
110
SCREW BRACKET TO SIDE MEMBER
110
SCREW , Replaced By: N304017010002
110
SCREW BRACKET TO CROSS CONNECTION STRUT
110
SCREW , Replaced By: N304017008034
110
SCREW SUPPORT TO CROSS MEMBER M 10X28
110
SCREW PIPE CLAMP
110
SCREW , Replaced By: N304017008021
115
NUT STRAP TO BRACKET
115
NUT , Replaced By: N910113010000
115
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
115
NUT , Replaced By: N913004008001
999
BRACKET AT FRAME, UP TO IDENT NO. 685037 EXCEPT FOR 500001-599999
999
BRACKET HELPER SPRING BRACKET, UP TO IDENT NO. 685037 EXCEPT FOR 500001-599999
999
EXHAUST MUFFLER
999
CONNECTOR , Replaced By: A3024920509
999
END PIECE , Replaced By: A3834920907, +001A3854920214, +001N007981006308
999
BRACKET , Replaced By: A3604921319
999
REAR EXHAUST PIPE , Replaced By: A3604923505, +001A3854920214, +001N007921006306, +001N007921006308
999
BRACKET , Replaced By: A3094921819
999
BRACKET , Replaced By: A3814923841
999
CONNECTOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3604921907
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3604924441
999
EXHAUST MUFFLER , Replaced By: A3834900201
