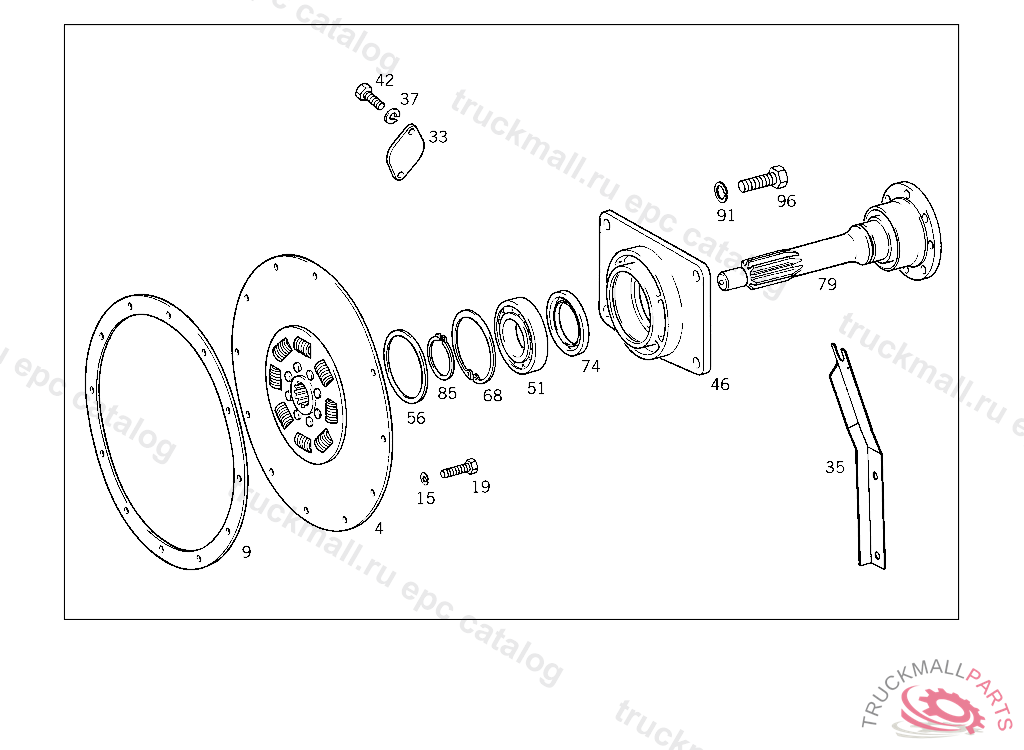

Поз.
Артикул
Описание
4
TORS. VIBRATION ABSORBER
4
TORS. VIBRATION ABSORBER ,4 811389
4
CLUTCH DISC ,4 811388
4
CLUTCH DISC , Replaced By: A0052503603
4
TORS. VIBRATION ABSORBER ,4 811389
4
CLUTCH DISC ,4 811388
4
CLUTCH DISC , Replaced By: A0052503503
4
CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0042506403
9
SPACER RING BETWEEN THE DAMPER DISCS,4 811389
9
SPACER RING CLUTCH TO FLYWHEEL,4 811389
9
SPACER RING CLUTCH TO FLYWHEEL,4 811388
15
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
19
SCREW , Replaced By: N304017010055
19
SCREW , Replaced By: N304017010050
19
SCREW PIPE CLAMP
19
SCREW , Replaced By: N304017008021
33
FLANGE CLUTCH BRAKE
35
BRACKET MECHANICAL MODULATOR CONTROL CABLE,4 813496
35
BRACKET MECHANICAL MODULATOR CONTROL CABLE,4 813496
37
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
42
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
42
SCREW , Replaced By: N304017008016
46
FLANGE REAR
51
BALL BEARING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
51
BALL BEARING , Replaced By: A0079818525
56
SPACER WASHER OUTPUT SHAFT
68
LOCK RING OUTPUT SHAFT
74
BOOT OUTPUT SHAFT
79
DRIVE SHAFT
79
DRIVE SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 4 811388, Replaced By: A3552520208
85
LOCK RING AS REQUIRED 3.00 MM,10/20879179, 50/60880935
91
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
96
SCREW SOLENOID VALVE TO BRACKET
999
SCREW PIPE ELBOW TO BRACKET M 10X50
999
SCREW , Replaced By: N304017010053
999
WASHER BRACKET TO APPARATUS SUPPORT
999
SCREW , Replaced By: N304017010030
999
SPACER WASHER AS REQUIRED 0.10 MM, UP TO IDENT NO. 4 477510 FROM IDENT NO. SEE UNIT MICROFICHE,MODEL 750.5
999
SPACER WASHER , Replaced By: A3122831652
999
SPACER WASHER , Replaced By: A3122831352
999
SPRING
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3603000640
999
BRACKET MODULATOR,5 151291
999
BELL HOUSING
999
BELL HOUSING
999
BELL HOUSING
999
RELEASE BEARING
999
RELEASE LEVER
999
SCREW INTERMEDIATE FLANGE TO TELMA BRAKE
999
BRACKET MODULATOR TO CASE,4 813497
999
SPRING LOCK RELEASE LEVER TO RELEASE BEARING, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
999
BOOT INSIDE
999
RELEASE LEVER , Replaced By: A3272540308, +001A3029910015
999
COVER RELEASE YOKE TO BEARING BRACKET
999
BOOT RELEASE LEVER, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
999
SPACER WASHER AS REQUIRED 0.15 MM,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
999
SPACER WASHER AS REQUIRED 0.05 MM
999
SPACER WASHER AS REQUIRED 0.10 MM
999
RELEASE BEARING CLUTCH
999
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH PRESSURE PLATE
999
CLUTCH PRESSURE PLATE , FOR USE WITH OM 327 ENGINE,UNTIL SERIES PRODUCTION STOP,FOR USE WITH OM 360 ENGINE FROM IDENT NO. 797910 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
JOINT BEARING
