Поз.
Артикул
Описание

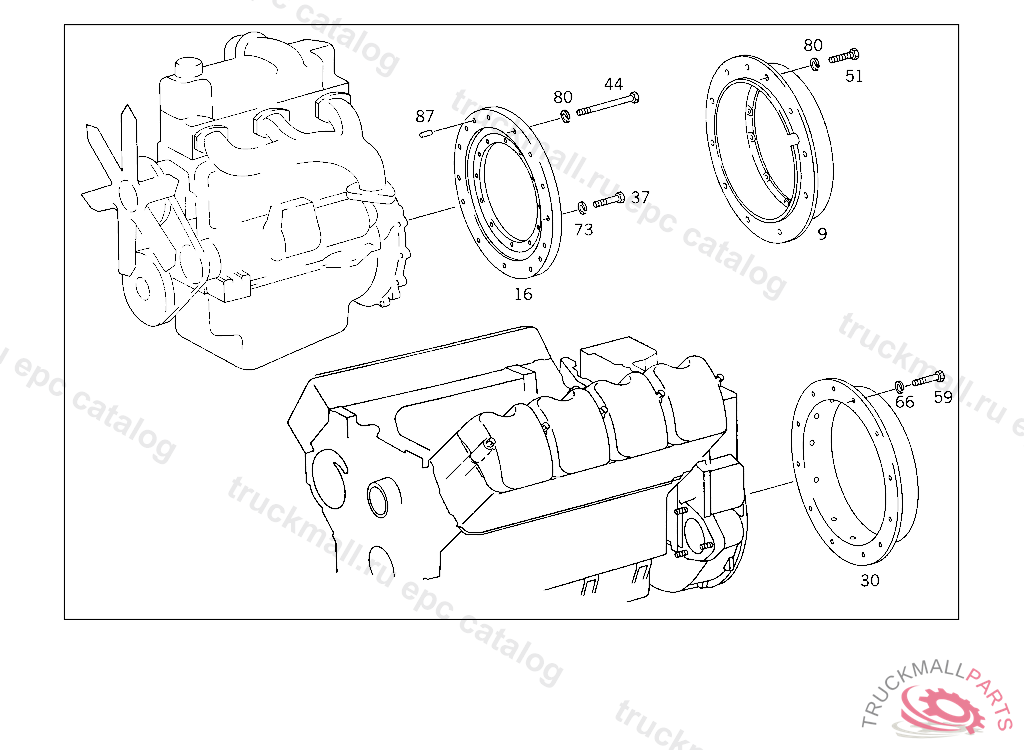

9
BELL HOUSING
16
COUPLING RING
30
COUPLING RING
37
SCREW SHIFTING ROD TO JOINT
44
SCREW BELL HOUSING TO CYLINDER CRANKCASE M 12X150
51
SCREW END PIECE TO EXHAUST PIPE M 12X30
51
SCREW , Replaced By: N304017012020
59
SCREW , Replaced By: N304017010035
59
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
66
SPRING WASHER STEERING COLUMN BRACKET TO CAB
73
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
80
LOCK WASHER FITTING TO BRACKET
87
CYLINDRICAL PIN INTERMEDIATE FLANGE TO HOUSING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
