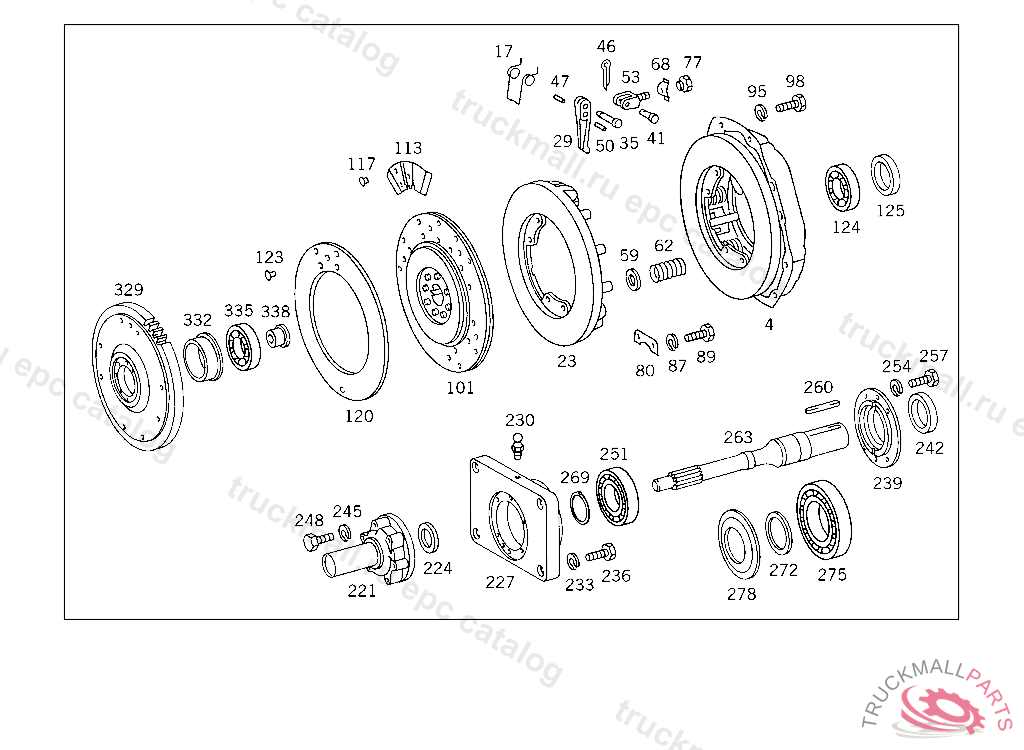

Поз.
Артикул
Описание
4
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
4
CLUTCH PRESSURE PLATE , Replaced By: A0032509904
4
CLUTCH PRESSURE PLATE CLUTCH, UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
4
CLUTCH PRESSURE PLATE , Replaced By: A0032501004
4
CLUTCH PRESSURE PLATE , Replaced By: A0032501104
4
CLUTCH PRESSURE PLATE , Replaced By: A0032501104
4
CLUTCH PRESSURE PLATE , Replaced By: A0032501104
17
SPRINGTO 344 586 70 25
23
PRESSURE PLATE , UP TO IDENT NO. 760271 EXCEPT FOR 500000-599999
23
PRESSURE PLATE
23
CLUTCH PRESSURE PLATETO 000 250 51 04
23
PRESSURE PLATE , UP TO IDENT NO. 760271 EXCEPT FOR 500000-599999, Replaced By: A0002526012, +003A0002526013, +003A0002522914, +003A0002523516, +003A0002523816, +120A0002520018, +003N006799007007
23
CLUTCH PRESSURE PLATE , Replaced By: A0002526212, +001A0002526413, +001A0002523114, +001A0002523516, +001A0002523816, +001A0002520018, +001N006799007007
23
CLUTCH PRESSURE PLATE
29
RELEASE LEVER , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999 AXLE BORE IN PRESSURE PLATE TO BE REAMED FROM 8.0MM TO 8.1MM, Replaced By: A0002526413, +001A0002522914, +001A0002523816, +001A0002524216, +040A0002520018, +001A1249945241
29
RELEASE LEVER , Replaced By: A0002522013
29
RELEASE LEVER , Replaced By: A0002525713
29
RELEASE LEVER
29
RELEASE LEVER , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
35
SPINDLE , Replaced By: A0002524216, +001A1249945241
35
SPINDLE , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999 AXLE BORE IN PRESSURE PLATE TO BE REAMED FROM 8.0MM TO 8.1MM, Replaced By: A0002523516, +001A0002526413, +001A0002522914, +001A0002523816, +040A0002520018, +001A1249945241
35
SPINDLE FOR RELEASE LEVERS, UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
41
SPINDLE FOR BRACKETS, FROM IDENT NO. 760272 ALSO INSTALLED ON 500001-599999
41
SPINDLE , Replaced By: A0002523816, +001A1249945241
41
SPINDLE THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING,K 062600
41
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
46
COTTER PIN LEVER TO ROD
46
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
47
ROLLERTO 344 586 70 25
50
ROLLER
53
BRACKET , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
53
BRACKET
53
BRACKET , FROM IDENT NO. 760272 ALSO INSTALLED ON 500001-599999 AXLE BORE IN PRESSURE PLATE TO BE REAMED FROM 8.0MM TO 8.1MM, Replaced By: A0002523014, +001A0002526513, +001A0002523716, +001A0002523816, +040A0002520018, +001A1249945241
53
BRACKET , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999 AXLE BORE IN PRESSURE PLATE TO BE REAMED FROM 8.0MM TO 8.1MM, Replaced By: A0002522914, +001A0002526413, +001A0002523816, +001A0002524216, +040A0002520018, +001A1249945241
53
BRACKET , Replaced By: A0002522414
53
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0002522514, +001A0002523372
53
BRACKET , Replaced By: A0002521014
59
INSULATING WASHER
59
SPACER TUBE
62
PRESSURE SPRING , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
62
PRESSURE SPRINGTO 000 252 25 04
62
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.5 MM, TO 003 250 10 04,001 250 75 04
62
PRESSURE SPRING , ON ELIMINATION OF INSULATING WASHERS 000 252 00 24, Replaced By: A0002527920
62
PRESSURE SPRING , Replaced By: A0002527120
68
LEAF SPRING
68
LEAF SPRINGTO 344 586 70 25
77
NUT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0002523372, +001A0002522514
77
NUT , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
77
NUT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0002523372, +001A0002522514
77
SCREW , Replaced By: A0002521171
80
LOCKTO 002 250 67 04
87
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
89
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
89
SCREW HOUSING TO PRESSURE PLATE,393781
89
SCREW , Replaced By: N304017008039
95
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
98
SCREW CLUTCH TO FLYWHEEL
98
SCREW BRACKET TO SIDE MEMBER,K 168169
98
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
98
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
98
SCREW FITTING TO TRANSMISSION M8X32
98
SCREW STRAP TO EXHAUST MUFFLER
98
SCREW TWO-WAY VALVE TO FRAME M 8X140
98
SCREW CLUTCH TO FLYWHEEL,760271
98
SCREW. HEXAGON HEAD BOLT TRANSMISSION CASE M10X80
98
SCREW , Replaced By: A0089907401
98
SCREW , Replaced By: N304017008030
98
SCREW , Replaced By: N304017008053
98
SCREW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: N304017008036
101
CLUTCH DISC , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0142509403
101
CLUTCH DISC , Replaced By: A0092509403
101
CLUTCH DISC , Replaced By: A0042506603
101
CLUTCH DISC , Replaced By: A0022507403
101
CLUTCH DISC , Replaced By: A0012504203
101
CLUTCH DISC , Replaced By: A0092509303
101
CLUTCH DISC , Replaced By: A0002505303
101
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
101
CLUTCH DISC
101
CLUTCH DISC WITH LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
101
CLUTCH DISC , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999
101
CLUTCH DISC
101
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
101
CLUTCH DISC
113
LEAF SPRING
113
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 4.2MM TO 5.2MM, Replaced By: A0002524519, +002A0002522075
113
LEAF SPRING
113
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002524719, +002A0002523975
113
LEAF SPRING , Replaced By: A0002523519
117
RIVET LINING WITH CLUTCH DISC,5 563495
117
RIVET , Replaced By: A0002522075
117
RIVET LEAF SPRING TO CLUTCH DISC
117
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
117
RIVET LEAF SPRING TO CLUTCH DISC 4X6 MM
117
RIVET LEAF SPRING TO CLUTCH DISC
117
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
117
RIVET LEAF SPRING TO CLUTCH DISC 5X8 MM,4 277323
120
CLUTCH LININGTO 003 250 84 03
120
CLUTCH LINING
120
CLUTCH LINING , Replaced By: A0012520610
120
CLUTCH LINING , Replaced By: A0012529010
120
CLUTCH LINING , Replaced By: A0002521310
120
CLUTCH LINING ASBESTOS-FREE
120
CLUTCH LINING
123
RIVET LINING WITH CLUTCH DISC,5 563495
123
RIVET , Replaced By: A0002522075
123
RIVET , Replaced By: A0002521275
123
RIVET LEAF SPRING TO CLUTCH DISC 5X8 MM,4 277323
123
RIVET LINING WITH INTERMEDIATE SPRING
123
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
123
RIVET LEAF SPRING TO CLUTCH DISC
123
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
123
RIVET LEAF SPRING TO CLUTCH DISC
124
SELF-ALGN. ROLLER BEARING
125
SEAL RING
221
TRANSMISSION CASE COVER FRONT
221
TRANSMISSION CASE COVER
224
SEAL RING TRANSMISSION CASE FRONT COVER, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MICROFICHE MODEL 712.0
224
SEAL RING , Replaced By: A0089971346
224
SEAL RING TRANSMISSION CASE FRONT COVER, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MOCROFICHE, MODEL 712.0
227
SHIM
230
GREASE NIPPLE
230
GREASE NIPPLE , Replaced By: N071412008102
233
LOCK WASHER GUIDE TO BELL HOUSING
236
SCREW CROSS MEMBER TO SUPPORT
239
END COVER
242
SEAL RING
245
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
248
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
251
SELF-ALGN. ROLLER BEARING
254
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
257
SCREW PIPE CLAMP
257
SCREW , Replaced By: N304017008021
260
KEY
263
CLUTCH SHAFT
263
CLUTCH SHAFT
263
CLUTCH SHAFT , Replaced By: A3142530001
263
CLUTCH SHAFT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3142530001
269
LOCK RING LONGITUDINAL LOCK
272
SPACER RING
275
SELF-ALIGNG. BALL BEARING
278
SEAL RING
329
FLYWHEEL WITH RING GEAR
332
BUSHING FLYWHEEL
335
GROOVED BALL BEARING
338
BUSHING IN BALL BEARING
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
KEY
999
KEY
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
FITTED WASHER
999
COTTER PIN
999
BRACKET STARTING CABLE
999
RELEASE BEARING ,838705
999
RELEASE BEARING , Replaced By: A3812501415
999
GASKET RELEASE COLLAR LUBRICATION
999
RELEASE BEARING
999
BRACKET
999
BUSHING
999
RELEASE LEVER
999
CLUTCH DISC
999
CLUTCH DISC
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
CLUTCH LINING ASBESTOS-FREE
999
CLUTCH LININGTO 005 250 53 03
999
CLUTCH PRESSURE PLATE
999
CLUTCH LINING330 MM,4 275351
999
LEAF SPRINGTO 014 250 94 03
999
RELEASE LEVER CLUTCH ACTUATION
999
LEAF SPRING
999
HOUSING CLUTCH PRESSURE PLATE
999
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
999
HOUSINGTO 002 250 94 04,002 250 95 04,736155
999
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
999
SPRING SUSPENDED BELOW LEAF SPRING
999
SPRING SUSPENDED BELOW LEAF SPRING
999
PRESSURE PLATE
999
LEAF SPRING
999
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
999
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
999
NUT FOR BRACKETS
999
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
999
HOUSINGTO 001 250 03 04
999
FLANGE
999
HOUSINGTO 002 250 67 04
999
HOUSING , FROM IDENT NO. 760272 ALSO INSTALLED ON 500001-599999
999
CLAMP RELEASE FLANGE TO RELEASE LEVER
999
RIVET CLUTCH PRESSURE PLATE TO BELL HOUSING,656140
999
HOUSING
999
CLUTCH LINING ASBESTOS-FREE TO 013 250 89 03
999
HOUSING , 341.250 UP TO CHASSIS A 002139
999
LOCK FOR BRACKETS
999
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
999
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
999
BRACKET RELEASE LEVER
999
SPINDLE THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING,K 062600
999
HOUSING , Replaced By: A0002521232
999
PRESSURE PLATE
999
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
999
CLUTCH LINING , Replaced By: A0002521310
