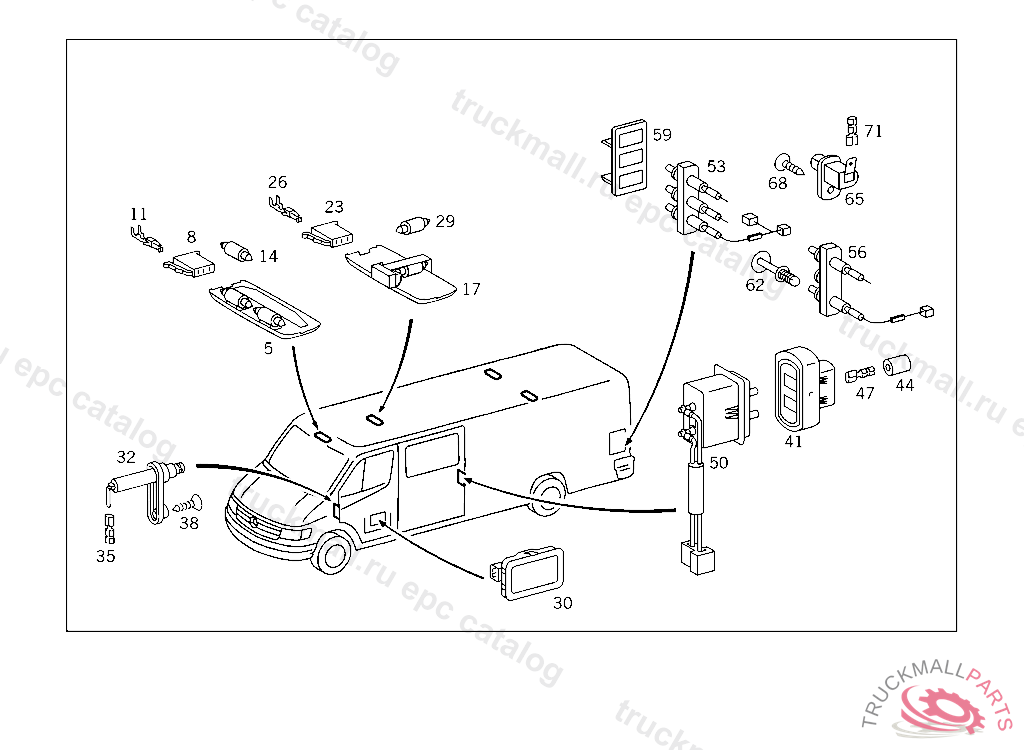

Поз.
Артикул
Описание
5
READING LAMP , Replaced By: A9738200201, +001N072601012120
5
INTERIOR LAMP. READING LAMP , Replaced By: A9738200201, +001N072601012120
5
INTERIOR LAMP READING LAMP AND DOME LAMP
8
PLUG SOCKET. PIN BUSHING HOUSING 3-POLE
11
CONTACT SPRING0.5-1.0 MM2
11
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
14
BULB INTERIOR LAMP K-12V 10W
17
INTERIOR LAMP
23
PLUG SOCKET. PIN BUSHING HOUSING 3-POLE
26
CONTACT SPRING0.5-1.0 MM2
26
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
29
BULB , UP TO CHASSIS: 108.019 043374 109.016 002452 109.018 003396 111.024,025 004274
29
BULB , Replaced By: N072601012122
30
INTERIOR LAMP ENTRANCE LAMP
32
SWITCH DOOR CONTACT
35
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
38
SHEET METAL SCREW SLIDING RAILS TO REINFORCEMENT FRAME
38
TAPPING SCREW. SCREW DOOR CONTACT TO BODY 3,9X9,5
41
CONTACTOR USED WITH CENTRAL LOCKING MECHANISM
44
GROMMET3.0 MM
47
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
47
PIN BUSHING , Replaced By: A0075458226
50
CONTACTOR DOOR CONTACT, USED WITH CENTRAL LOCKINNG MECHANISM
53
CONTACTOR REAR END
56
CONTACTOR REAR END
59
CONTACT PIECE REAR END
59
CONTACT PIECE REAR END
62
RIVET
65
CONTACTOR REAR PANEL DOOR
68
TAPPING SCREW. SCREW DOOR CONTACT TO BODY 3,9X9,5
68
SHEET METAL SCREW SLIDING RAILS TO REINFORCEMENT FRAME
71
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
