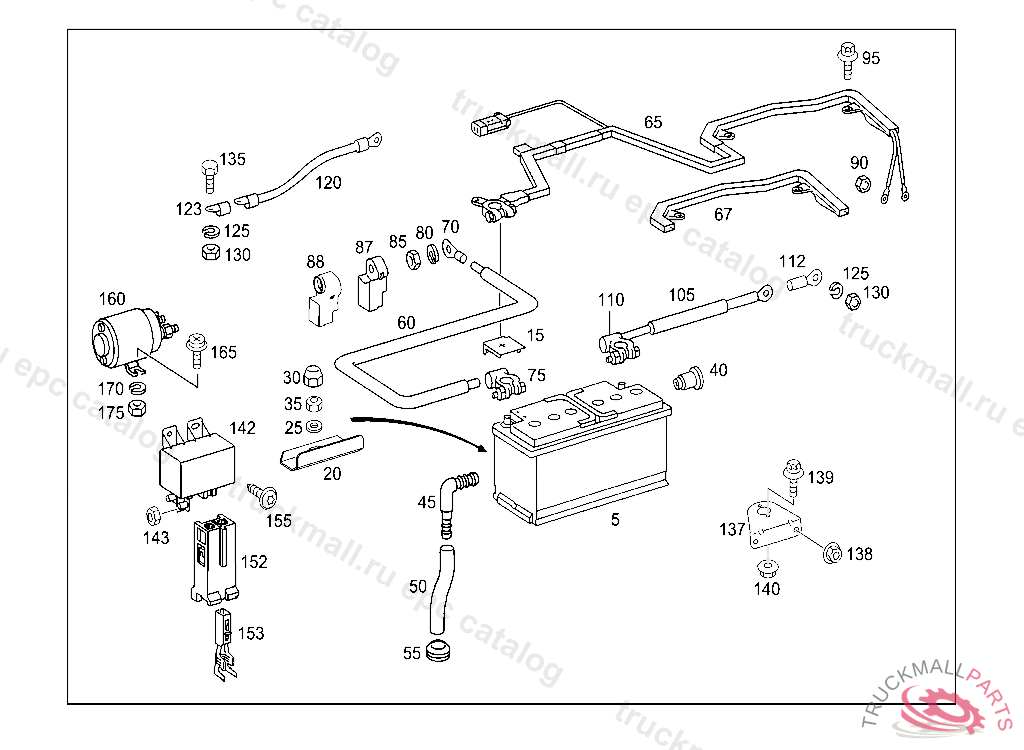

Поз.
Артикул
Описание
5
BATTERY FILLED 12V/95AH, Replaced By: A0055411001
5
BATTERY12V/88AH
5
BATTERY FILLED 12V/95AH
5
BATTERYVLIES,70 AH / 450 AHHOPPECKE
5
BATTERY FILLED 12V/100 AH
5
BATTERY
5
BATTERY PARTS KIT
5
BATTERY FILLED AND CHARGED 12V/88AH
15
BOOT POS. POLE
20
RAIL BATTERY
25
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
25
WASHER COMPRESSED AIR LINE TO BRACKET
30
CAP NUT SWITCH TO CAB FRONT PANEL
30
CAP NUT HYDRAULIC ELEMENT TO UPPER AND LOWER PARTS
35
NUT , Replaced By: N913023006001
40
STOP PLUG. PLUG ON BATTERY,LATERALLY
45
ELBOW FITTING. DISTRIBUTOR
45
ELBOW FITTING , TO BE PROCURED FROM MBA ONLY
50
HOSE , ORDER BY THE METER
50
HOSE , TO BE PROCURED FROM MBA ONLY
55
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
55
GROMMET CLOCK
60
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
65
CABLE HARNESS. WIRING HARNESS STARTING CABLE
65
WIRING HARNESS STARTING CABLE OM 611 T1N MIT LUFTGEK. GENERATOR
67
CABLE DUCT
70
CABLE SHOE FROM BATTERY POS.POLE TO STARTING MOTOR
75
CLAMPING PIECE POS. POLE
80
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
85
NUT , Replaced By: N913023006001
85
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
85
NUT HORN TO BRACKET M8
87
BOOT. PROTECTIVE CAP CABLE TO STARTING MOTOR,TERMINAL 30, R 69835220040630569835220040630
88
PROTECTIVE CAP CABLE TO STARTING MOTOR,TERMINAL 30, R 68662420040630
90
NUT HORN TO BRACKET M8
90
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
90
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
95
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
105
ELECTRIC CABLE BETWEEN THE BATTERIES 310 MM, ORDER BY THE METER
105
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
105
NEG. CABLE FROM BATTERY TO GROUND POINT 50 MM2
110
SOLDERING TERMINAL BATTERY CABLE
110
CLAMPING PIECE BATTERY
112
CABLE LUG NEG. CABLE
112
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
112
CABLE SHOE NEG. CABLE
120
GROUND STRAP FROM ENGINE TO FRAME
123
CABLE SHOE. CABLE LUG WITH BORE 13MM,25MM2
125
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
130
NUT
135
SCREW PIPE CLAMP
135
COMBINATION BOLT
137
BRACKET ON A-PILLAR MASSELEITUNG AN BATTERIESCHALTER
138
NUT , Replaced By: N913023006001
139
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
140
NUT , Replaced By: N913023006001
142
RELAY (BATTERY CUT-OFF RELAY) 12 V
143
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
143
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
152
PIN BUSHING HOUSING FROM BATTERY TO CONTACTOR
153
CONTACT SPRING0.5MM2-1.0MM2, A 843748 X 019421
155
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
160
CONTACTOR RELAY
165
SCREW RELAY
170
LOCK WASHER BRACKET TO STEERING COLUMN END
175
NUT IN CASE OF SUBSEQUENT INSTALLATION
