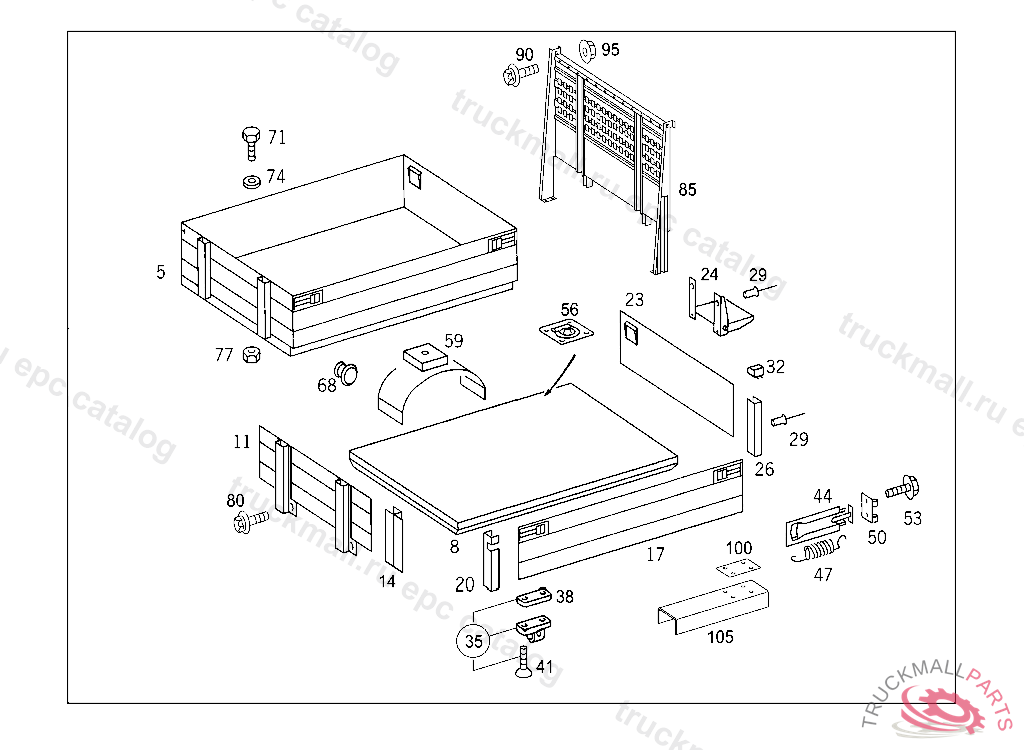

Поз.
Артикул
Описание
5
PLATFORM SHORT CAB, WITH UNDERRIDE GUARD 3306MM
5
PLATFORM SHORT CAB 3306MM
8
BOTTOM LAYER-GLUED PLATE 4111 MM
8
FLOOR LAYER-GLUED PLATE
8
FLOOR LAYER-GLUED PLATE
8
FLOOR. BOTTOM LAYER-GLUED PLATE 3306 MM
11
FRONT PANEL1932 MM
14
RAIL FRONT PANEL,LEFT
14
RAIL FRONT PANEL,RIGHT
17
SIDE PANEL4114 MM
17
SIDE PANEL2759 MM
17
SIDE PANEL1932MM
17
SIDE PANEL3309 MM
20
RAIL ON LEFT SIDE PANEL AT THE FRONT,AND ON RIGHT SIDE PANEL AT THE REAR
20
RAIL ON LEFT SIDE PANEL AT THE REAR,AND ON RIGHT SIDE PANEL AT THE FRONT
23
REAR PANEL1932 MM
24
FOLDING STEP FOR REAR PANEL
26
RAIL REAR PANEL,LEFT
26
RAIL REAR PANEL,RIGHT
29
CLINCH-PIN RAIL TO FLAP
32
CAP
35
HINGE PLATFORM SIDE AND END PANELS
38
PLATE
41
SCREW FOLDING STEP TO REAR PANEL,546180
44
FASTENER PLATFORM PANEL FASTENER
47
SPRING PLATFORM PANEL FASTENER
50
TAKE-UP DEVICE PLATFORM PANEL FASTENER
53
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
56
EYE ANCHORING LUG
59
SPACER REAR FENDER TO PLATFORM
68
RUBBER BUFFER FOLDING STEP AND SIDE PANEL
71
HEXAGON HEAD BOLT BRACKET TO BRACKET
74
WASHER STRUT TO CROSS MEMBER
77
NUT CROSS MEMBER TO SIDE MEMBERS
80
SCREW BRACKET TO SIDE MEMBER M8X20
85
CARRIER
90
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
95
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
100
SEAL
105
REINFORCEMENT
