Главная
›
Mercedes
›
VAN
›
214, 208 CDI, 211 CDI, 213 CDI, 216 CDI
›
902.662 TO IDENT-NR. R337626
›

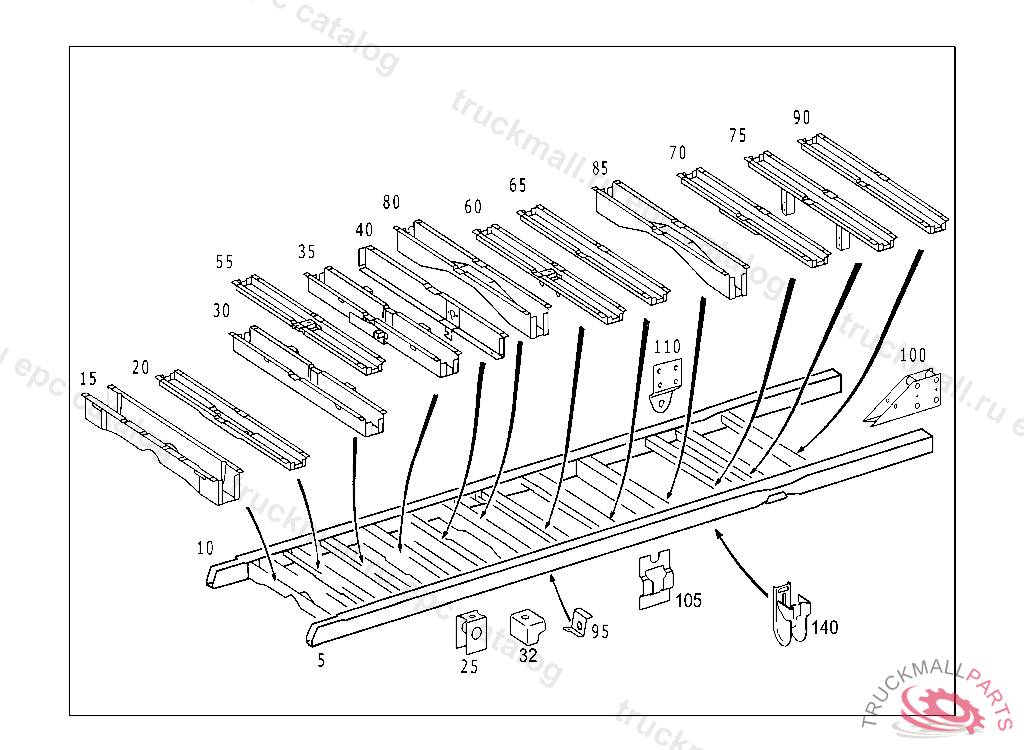

31 FRAME
›
380 SIDE AND CROSS MEMBERS,AT REAR
Mercedes A9023100118 - ЛОНЖЕРОН
214, 208 CDI, 211 CDI, 213 CDI, 216 CDI 902.662 TO IDENT-NR. R337626
31 FRAME - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
5
A9023100118
SIDE MEMBER LEFT, WHEELBASE 3550
5
A9013100318
SIDE MEMBER LEFT, WHEELBASE: 3550
10
A9013100219
SIDE MEMBER RIGHT, WHEELBASE: 3550
10
A9023100119
SIDE MEMBER
15
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
15
A9023100137
CROSS MEMBER"3"
20
A9013101737
CROSS MEMBER"3A"
25
A9013102167
BODY SUPPORT SEAT MOUNTING
30
A9013100636
CROSS MEMBERNO.4.1
30
A9013100536
CROSS MEMBER WITH SEAT MOUNTING "4.2"
32
A9013100158
CONSOLE
32
A9013100567
BODY SUPPORT
35
A9013100336
CROSS MEMBERNO.4.3
35
A9013100036
CROSS MEMBER"4.5"
40
A9013100337
CROSS MEMBER
55
A9013100737
CROSS MEMBERNO.6A.1
70
A9013100537
CROSS MEMBER
75
A9013102037
CROSS MEMBERNO.6A.5
80
A9013101537
CROSS MEMBER"6.7"
85
A9023100337
CROSS MEMBER"6.5.2"
90
A9013120021
CROSS MEMBERNO.7
95
A9014280840
BRACKET BRAKE HOSE TO FRAME
100
A9013100057
PLATE FRAME TRUSSING
105
A9014750740
BRACKET
110
A9043260147
SHACKLE
140
A9015830259
CLAMP JACK
