Поз.
Артикул
Описание

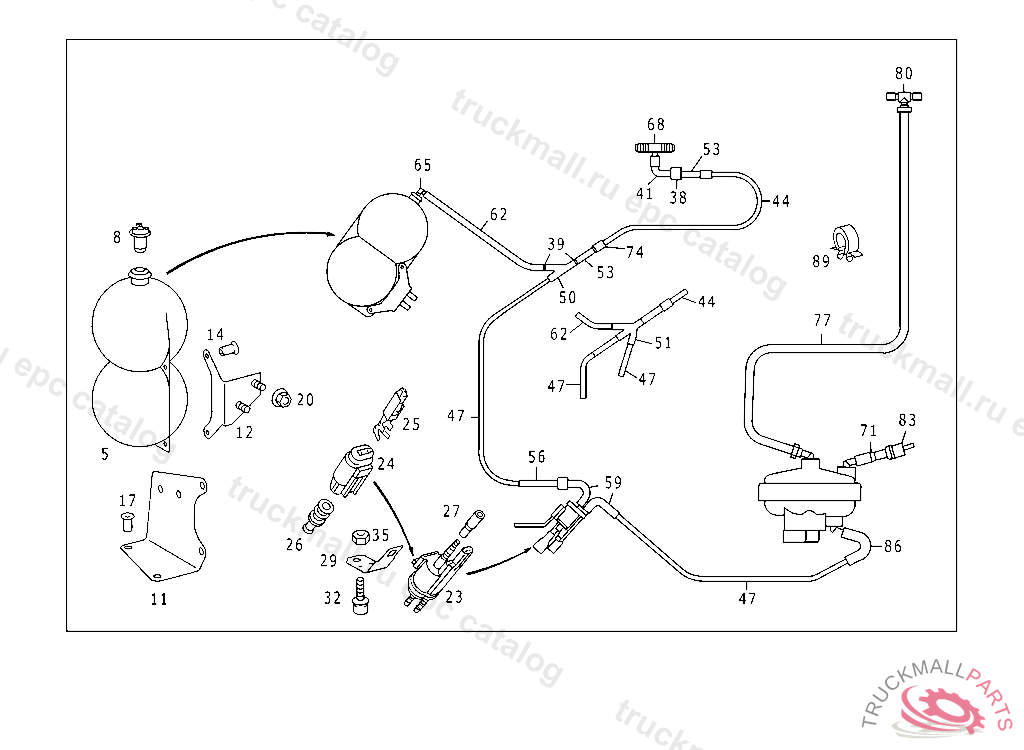

5
TANK LIGHT RANGE ADJUSTER
8
SEAL
11
12
BRACKET VACUUM SUPPLY TANK
14
RIVET RESERVOIR TO BRACKET 4X0.5X8
17
RIVET PARTITION PANEL TO BODY 4.8X6,5 MM
20
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
20
NUT , Replaced By: N913023006001
23
CHANGE-OVER VALVE. VALVE INCREASE IN SHIFT POINT, AUTOMATIC TRANSMISSION
23
VALVE (3/2-WAY SOLENOID VALVE)
23
CHANGE-OVER VALVE MODULATION PRESSURE
24
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
25
CONTACT BUSHING , Replaced By: A0085456326
25
CONTACT BUSHING , Replaced By: A0085456326
25
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
26
GASKET YELLOW 0.2-0.5MM2,126373
26
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
27
HOSE SOLENOID VALVE
29
BRACKET
32
SCREW , Replaced By: A0009847929
32
SCREWROCKINGER,TYP 59 U150
35
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
35
NUT , Replaced By: N913023006001
38
VALVE BELOW INSTRUMENT PANEL
38
VALVE CHECK
39
NOZZLE ELECTRIC CHANGE-OVER VALVE AND PRESSURE CONVERTER, CALIFORNIA FROM MODEL YEAR'84 UP TO END OF MODEL YEAR'84
41
HOSE
44
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
44
PLASTIC PIPE RISING PIPE 4X6 MM
47
HOSE FROM STEERING LOCK TO VACUUM PUMP LINE 830 MM
50
BRANCH-OFF FITTING INCREASE IN TRANSMISSION SHIFT POINT & 2 SELECTION PROGRAMS, F 140421 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM F 140422 WITH CODE 806
50
BRANCH-OFF FITTING
51
BRANCH-OFF FITTING BETWEEN VACUUM LINE AND CONNECTION FOR ELEC.-PNEUM.DIRECTIONAL CONTROL VALVE
53
HOSE VACUUM LINE
56
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
56
59
HOSE
62
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
65
ELBOW FITTING BETWEEN DISTRIBUTOR FITTING AND VACUUM RESERVOIR
68
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO 8X6 / 8X6 / 6X4
68
71
HOSE ENGINE TO REGENERATION VALVE RECHTS, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
74
AIR FILTER
74
DASHPOT. STRAINER VACUUM LINE
77
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
80
T-FITTING BETWEEN THE LINES
83
STRAINER VENTING FOR MASTER CYLINDER,FRONT AXLE AND REAR AXLE
86
HOSE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE,C 013142SIEHE KG 15
89
CLAMP
