Главная
›
Mercedes
›
VAN
›
SPRINTER 308 D
›
903.372
›
31 FRAME
›

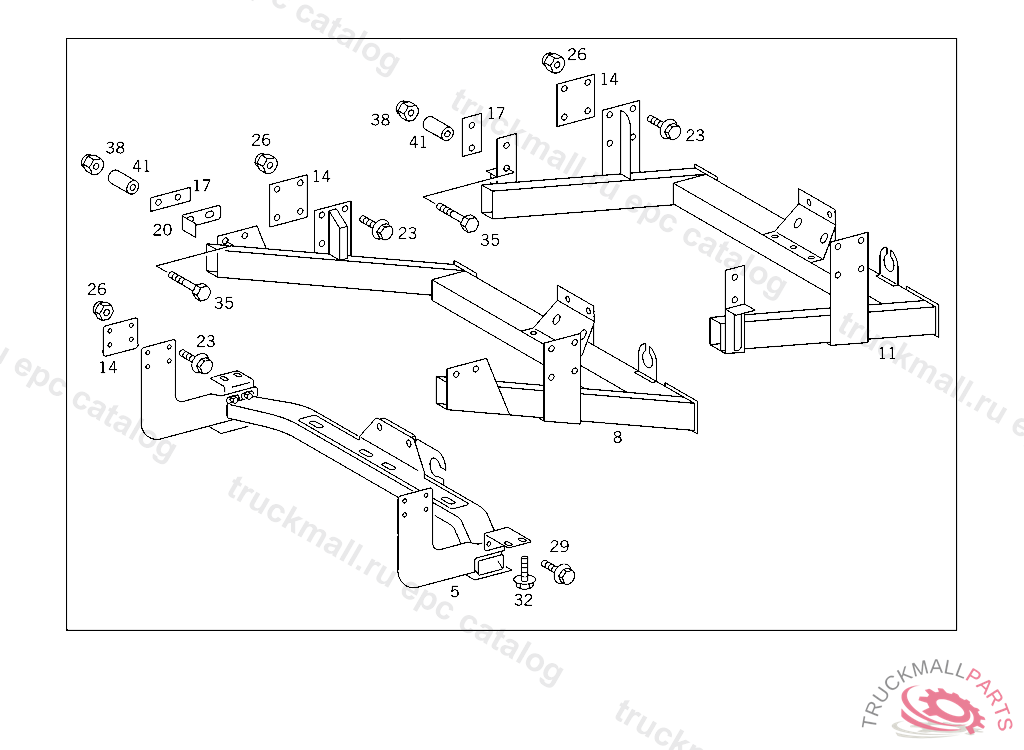

420 TRAILER COUPLING IL. 1
Mercedes A9033150443 - Траверса
SPRINTER 308 D 903.372
31 FRAME - 420 TRAILER COUPLING IL. 1
Поз.
Артикул
Описание
5
A0003100146
CROSS MEMBER CROSS MEMBER
11
A9033150443
CROSS STRUT TRAILER COUPLING
14
A9013150021
PLATE 0
17
A9033150038
BASE PLATE AT BRACKET
23
N910105012001
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
26
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
29
N910106010008
SCREW. HEXAGON HEAD BOLTM10X25
32
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
35
N910105010004
SCREW AT FRAME
38
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
A9033110088
SLEEVE HITCHING MECHANISM TO SIDE MEMBER
