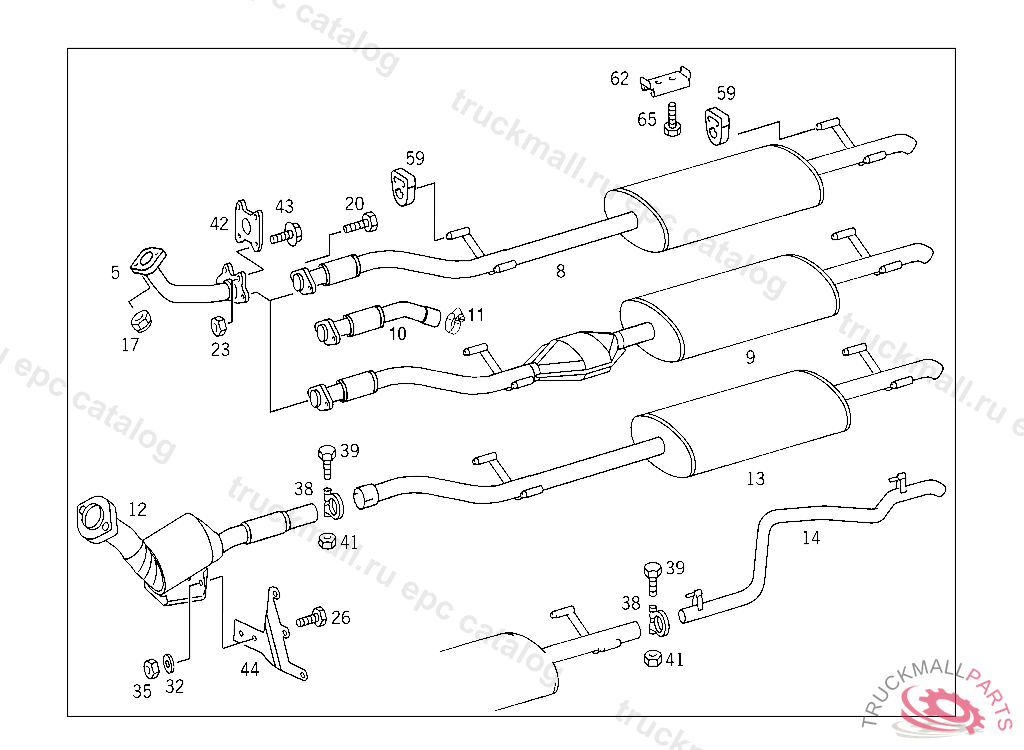

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
5
EXHAUST PIPE , Replaced By: A9014900519
8
EXHAUST PIPE ,P 541757, Replaced By: A9014901319, +001A9014903240, +001A9014920044, +006A0039900697
8
EXHAUST MUFFLER WITH PIPE , Replaced By: A9014901319
8
EXHAUST PIPE LESS CATALYST
8
EXHAUST MUFFLER WITH PIPE LESS CATALYST, TO BE ADAPTED DURING ASSEMBLY
9
EXHAUST PIPE WITH CATALYST, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
9
EXHAUST MUFFLER WITH PIPE , TO BE ADAPTED DURING ASSEMBLY PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
EXHAUST PIPE REPAIR SOLUTION
11
PIPE CLAMP. CLAMP REPAIR SOLUTION
12
CATALYSTCODE-B: MS5
12
EXHAUST MUFFLER WITH PIPE , Replaced By: A9014901219
13
EXHAUST PIPECODE-B: MS5
13
EXHAUST PIPE
14
14
EXHAUST PIPE IN FRONT OF REAR AXLE,LEFT
14
17
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
20
SCREW 3/2-WAY VALVE TO BRACKET
20
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
23
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
32
WASHER , Replaced By: N000125008443
32
WASHER EXHAUST MUFFLER TO STRAP
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
CLAMP
39
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
39
SCREW VALVE TO BRACKET M 8X60
39
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
41
NUT HORN TO BRACKET M8
41
NUT
42
BRACKET EXHAUST PIPE TO TRANSMISSION
43
SCREW SPEED SENSOR TO REAR AXLE
43
SCREW , Replaced By: N910143008000
43
44
BRACKET , Replaced By: A9014926741
44
BRACKET EXHAUST PIPE TO TRANSMISSION
59
SUSPENSION RING
62
BRACKET REAR EXHAUST PIPE TO FRAME
65
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
