Главная
›
Mercedes
›
VAN
›
SPRINTER 310 D,312 D
›
903.422
›

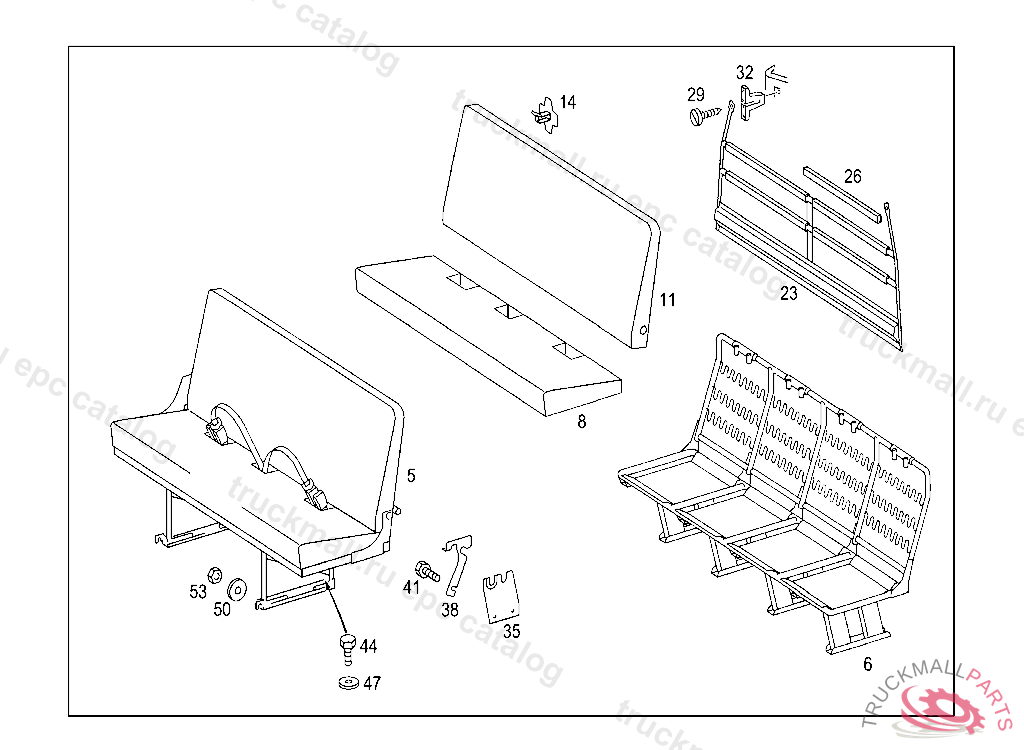

92 REAR SEAT BENCH
›
090 PASSENGER SEATS, QUADRUPLE OCCUPANCY SEAT IL. 2
Mercedes N914151005007 - Болт
SPRINTER 310 D,312 D 903.422
92 REAR SEAT BENCH - 090 PASSENGER SEATS, QUADRUPLE OCCUPANCY SEAT IL. 2
Поз.
Артикул
Описание
5
XKL92000002
5
XKL92000001
5
XKL92000003
6
A0009201220
SEAT FRAMEWORK
8
A0009503621
8
A0009106130
8
A9019500621
11
A0009109832
11
A0009506631
11
A9019500631
14
A0009570214
BRACKET16 MM
14
A0009570314
BRACKET LONG 36 MM
23
A9019700179
PAD
26
A0009780079
CASING
29
N914151005007
SCREW AIR DISTRIBUTOR TO AIR FILTER
32
A0039942245
LOCK. FUSE
35
A9019210114
BRACKET
38
A9019290094
LOCKING DEVICE
41
N910105008004
SCREW BRACKET MOUNTING M6 X 20
44
N304017010041
HEXAGON HEAD BOLT. SCREW COVER TO CASE M 10X35
47
N009021010209
WASHER BRACKET TO COVERING
47
N009021010206
WASHER TRANSVERSE CHARGE AIR PIPE TO INTAKE MANIFOLD
50
N009021008207
WASHER STEERING COLUMN JACKET TUBE TO FIRE WALL
53
N304032008012
HEXAGON NUT. NUT L.H. THREAD
