Mercedes A0025451128 - ГИЛЬЗА

308CDI, 311CDI, 313CDI, 316CDI 903.621 FROM IDENT-NR. R337627, 5337627, A901274

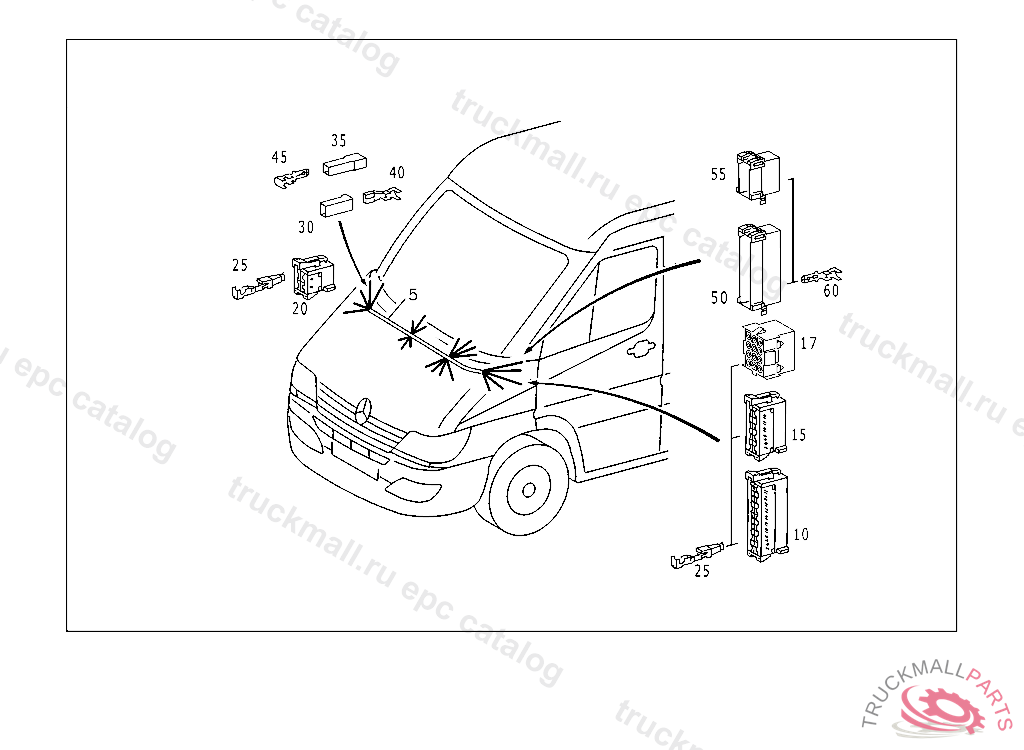

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 135 PARAPET WIRING HARNESS

Поз.
Артикул
Описание
5
A9010007499
CABLE HARNESS WINDOW SILL, STATE IDENT NO. WHEN ORDERING
10
A6555450628
PIN BUSHING HOUSING 22-POLE
15
A6555450428
PIN BUSHING HOUSING 14-POLE
17
A0185455326
PIN BUSHING HOUSING FRAME WIRING HARNESS/WAIST RAIL HARNESS CONNECTOR,14-PIN
20
A6555450128
PIN BUSHING HOUSING 4-POLE
25
A0115458026
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
25
A0115458126
CONTACT SPRING0.5-1.0 MM2
30
A0025451128
PIN BUSHING HOUSING UNIPOLAR
35
A0025451328
PIN BUSHING HOUSING UNIPOLAR
40
A0075458426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
45
A0325457228
PLUG WITH DETENT AND WITH CATCH FOR HOUSING 0.3-0.8 MM2
45
A0285455328
FLAT PLUG WITH DETENT 4-6 MM2
50
A6555451328
PLUG HOUSING 22-POLE
50
A6555451228
PLUG HOUSING 18-POLE
55
A6555451128
PLUG HOUSING 14-POLE
55
A6555451028
PLUG HOUSING 10-POLE
60
A0195455628
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
60
A0215456028
FLAT PLUG. PLUG1-2.5 MM2
