Mercedes A0025459926 - Втулка

408CDI,411CDI,413CDI,416CDI 904.623 FROM IDENT-NR. R337627, 5337627, A901274

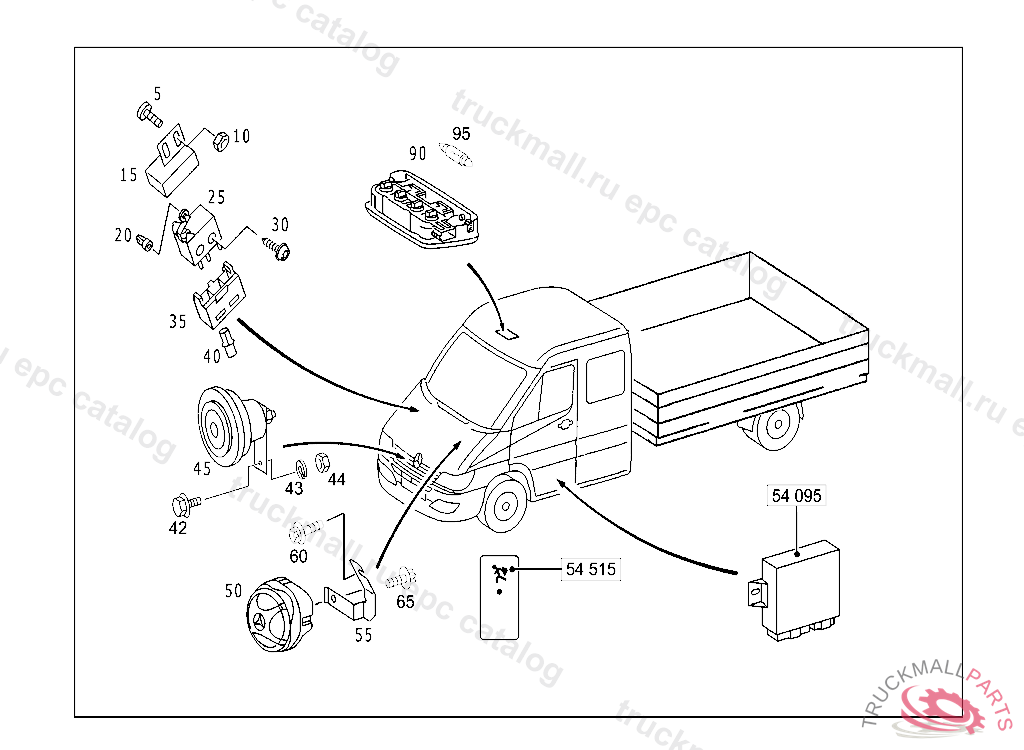

82 ELECTRICAL SYSTEM/LIGHTING - 525 ANTITHEFT ALARM SYSTEM

Поз.
Артикул
Описание
5
N914129005001
SCREW RELAY
10
N910113005001
NUT HOOK TO BRACKET
15
A9017510014
BRACKET SWITCH
20
A0039946445
LOCK SWITCH TO BRACKET
25
A0025452314
SWITCH ENGINE SPEED STABILIZING
30
N000000001037
TAPPING SCREW SWITCH TO BRACKET 4.2X50
30
N000000000526
TAPPING SCREW4.2X32
35
A0125450728
PIN BUSHING HOUSING MICRO-SWITCH
40
A0025459926
ROUND PIN BUSHING2.5 MM2
42
N914026004101
COMBINATION BOLT BLOWER SERIES RESISTOR TO BRACKET
43
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
44
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
45
A0035426820
HORN HORN,IN ENGINE COMPARTMENT
45
A6385420020
HORN12 VOLTS
45
A0065427420
DISK HORN HORN, TO BE ADAPTED DURING ASSEMBLY
50
A2038203826
ALARM UNIT , Replaced By: A1718202526
50
A1718202526
ALARM SYSTEM. CONTROL UNIT SIREN, F 080359 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO F 080358 WITH CODE 809, Replaced By: A2198203226
55
A9015453740
BRACKET MOUNTING, ALARM UNIT, NO LONGER AVAILABLE
60
N000000003853
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
65
N914026004101
COMBINATION BOLT BLOWER SERIES RESISTOR TO BRACKET
90
A9018200001
INTERIOR LAMP BURGLARY ALARM SYSTEM
95
N400809000004
BULB ROOF MOUNTED OPERATING UNIT 12V-6W
