Главная
›
Mercedes
›
VAN
›
408CDI,411CDI,413CDI,416CDI
›
904.623 FROM IDENT-NR. R337627, 5337627, A901274
›

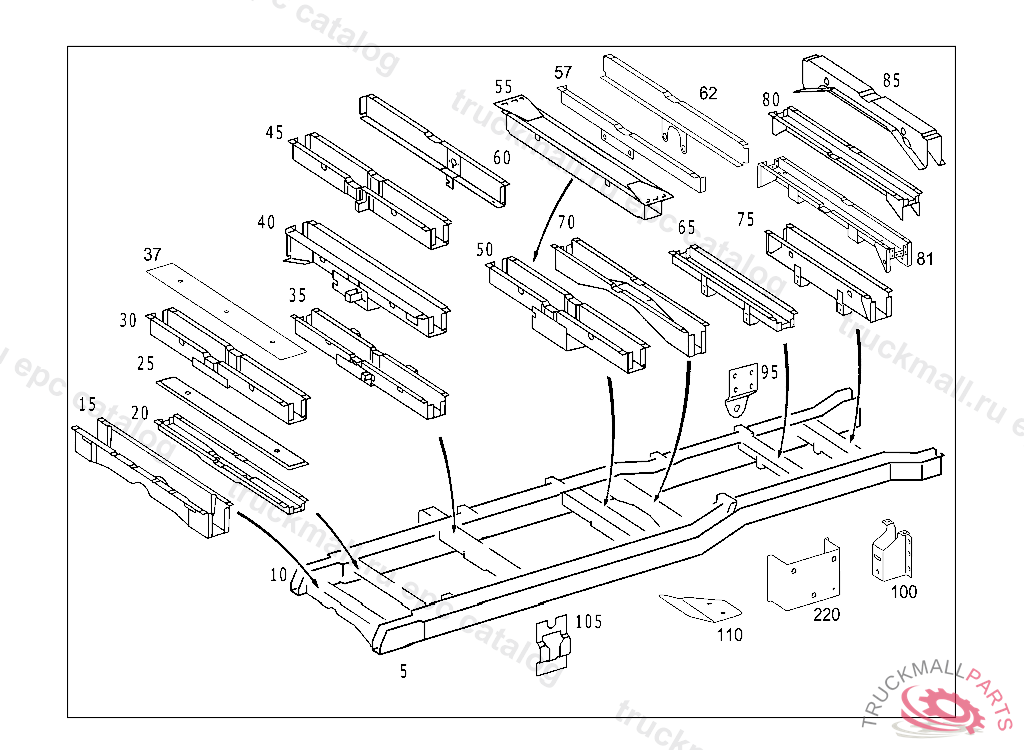

31 FRAME/TRAILER COUPLING
›
380 SIDE AND CROSS MEMBERS,AT REAR
Mercedes A9043100037 - ПОПЕРЕЧИНА
408CDI,411CDI,413CDI,416CDI 904.623 FROM IDENT-NR. R337627, 5337627, A901274
31 FRAME/TRAILER COUPLING - 380 SIDE AND CROSS MEMBERS,AT REAR
Поз.
Артикул
Описание
5
A9043100818
SIDE MEMBER LEFT, WHEELBASE: 4025
10
A9043100619
SIDE MEMBER RIGHT, WHEELBASE: 4025 MM
15
A9043100537
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
20
A9013101737
CROSS MEMBER"3A"
40
A9013100836
CROSS MEMBER"4.7"
50
A9013101136
CROSS MEMBER"4.9"
55
A9043100052
COVER PLATE CROSS MEMBER "4/7"
62
A9043100737
CROSS MEMBER"5C.1"
70
A9043100437
CROSS MEMBERNO.6.1.3
75
A9043100346
CROSS MEMBER SHORT NO.7
80
A9043100937
CROSS MEMBER"7.4", TO BE ADAPTED DURING ASSEMBLY
85
A9043100037
CROSS MEMBER SHOCK ABSORBER
95
A9043260147
SHACKLE
105
A9014750740
BRACKET
110
A9014760046
PROTECTIVE PLATE BREATHER VALVE
