Поз.
Артикул
Описание

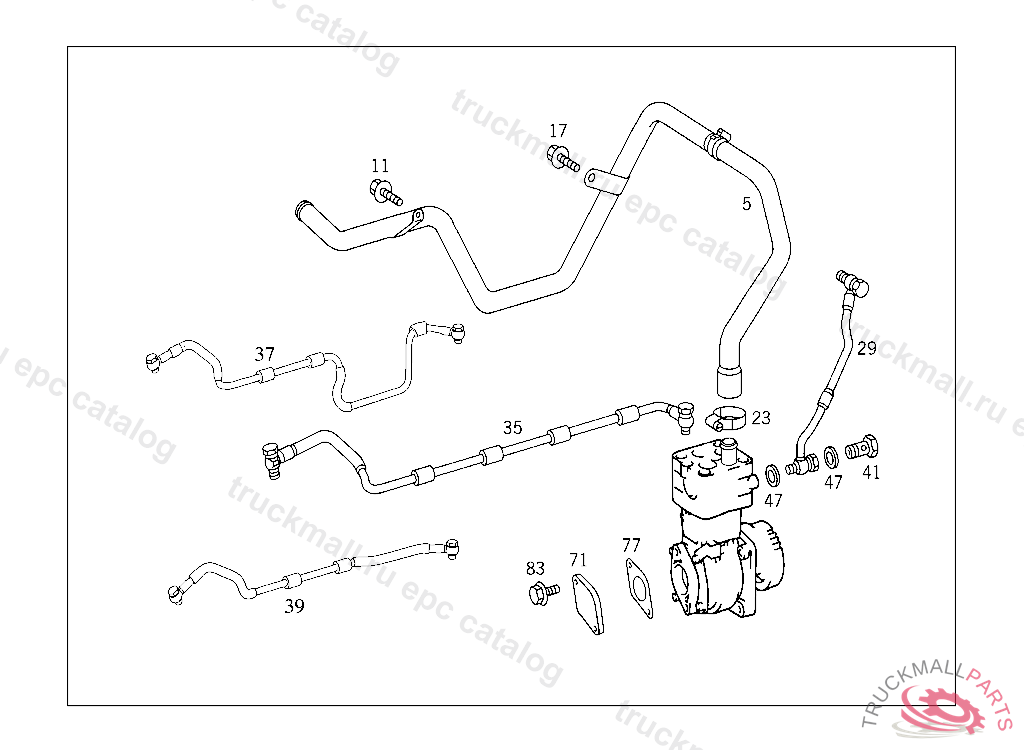

5
SUCTION LINE
11
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
17
SCREW STOP TO BATTERY CASE
23
CLAMP HOSE FASTENING 28-35 MM,V 207570
23
CLAMP , Replaced By: A0069974290
29
LINE ON CYLINDER HEAD AND AIR COMPRESSOR,*0474695, Replaced By: A9062037302
29
LINE ON CYLINDER HEAD AND AIR COMPRESSOR
29
COOLANT LINE ON CYLINDER HEAD AND AIR COMPRESSOR
29
LINE ON CYLINDER HEAD AND AIR COMPRESSOR
29
LINE ON CYLINDER HEAD AND AIR COMPRESSOR
35
COOLANT LINE ON AIR COMPRESSOR AND WATER PUMP
35
COOLANT LINE ON AIR COMPRESSOR AND WATER PUMP
35
LINE ON AIR COMPRESSOR AND WATER PUMP
35
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9062032002
35
LINE ON AIR COMPRESSOR AND WATER PUMP
37
LINE ON AIR COMPRESSOR AND WATER PUMP
39
LINE ON AIR COMPRESSOR AND WATER PUMP
39
LINE ON AIR COMPRESSOR AND WATER PUMP
41
HOLLOW SCREW FUEL LINE TO FEED PUMP
47
SEALING RING
71
CAP TO PLUG AIR COMPRESSOR,REAR
71
FLANGE TO PLUG AIR COMPRESSOR,REAR
77
GASKET COVER TO TIMING CASE, Replaced By: A0259976947
77
FLANGE GASKET COVER TO TIMING CASE
83
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
