Поз.
Артикул
Описание

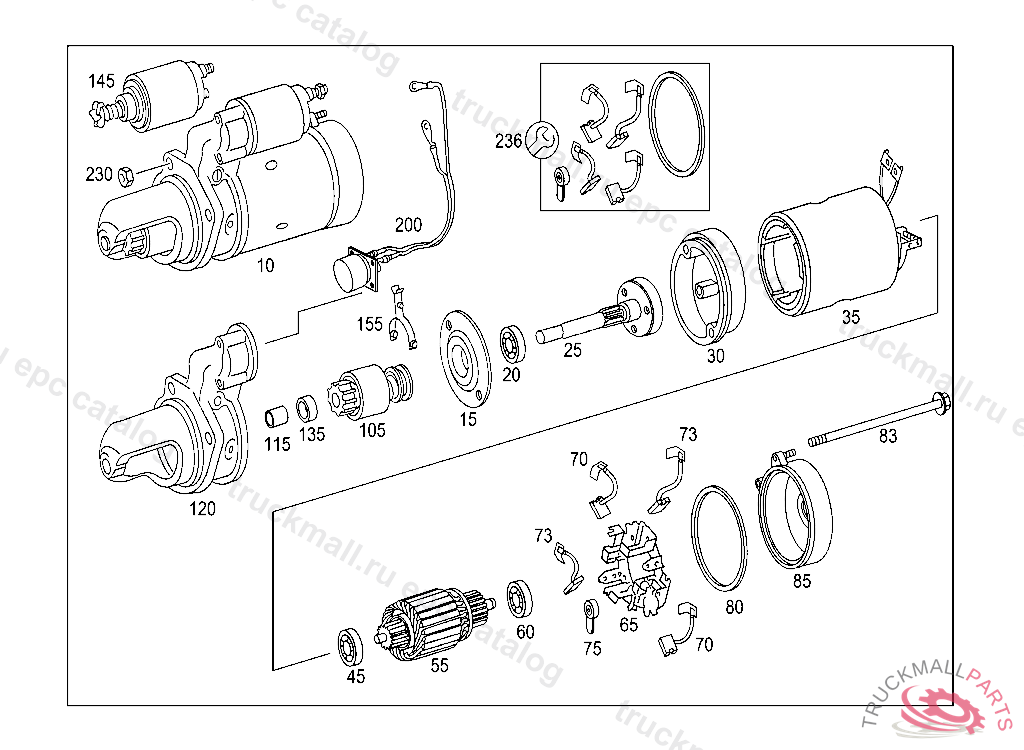

10
STARTER MOTORDELCO REMY, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
STARTING MOTOR24V/4KW, BOSCH
10
STARTING MOTOR24V/4KW, DELCO
10
STARTING MOTOR24V, "DELCO"29MT8200138,M 026530
15
BEARING HOUSINGTO 005 151 83 01
20
BALL BEARINGTO 005 151 83 01
25
GEARINGTO 376 151 02 01
25
SHAFTDR 10457357 TO QTF00-00228-000,M 021064
30
HOUSING
35
HOUSINGTOA 376 151 0301 / 0501
35
COILTO 005 151 22 01
45
BALL BEARINGTO 005 151 83 01
55
ARMATURETO 005 151 85 01
55
ARMATURETO 376 151 03 01
60
BALL BEARINGTO 005 151 83 01
65
BRACKET
70
CARBON BRUSH SET NEG. TO 005 151 85 01
70
CARBON BRUSH SETTO 004 151 62 01,005 151 22 01 - NEG., Replaced By: A0011512914
73
CARBON BRUSH SETTO 004 151 62 01,005 151 22 01 - POS., Replaced By: A0011512814
73
CARBON BRUSH SET POS. TO 005 151 85 01
75
SPRINGTO 005 151 83 01
80
SEAL RINGTO 005 151 83 01
80
SEAL RINGBOSCH,*0499552
83
SCREW
85
COVERTO A 006 151 21 01
85
BEARING HOUSING
105
PINION PARTS KIT TO 376 151 03 01
105
PINIONTO 005 151 85 01, NOT USED
105
PINIONBOSCH TO A0061512201,*0422015
115
BUSHINGTO 005 151 83 01
120
BEARING HOUSINGTO A 006 151 21 01
120
BEARING HOUSINGTO 004 151 62 01,005 151 22 01
120
BEARINGTO A0061512201
135
THRUST WASHERTO 005 151 83 01
145
SOLENOID SWITCHBOSCH TO A0061512201,*0422015
145
SOLENOID SWITCHTO 006 151 21 01, A 006 151 67 01
145
SOLENOID SWITCHTO 004 151 62 01,005 151 22 01
155
CONTROL LEVER TO 376 151 03 01
155
CONTROL LEVERTO 004 151 62 01,005 151 22 01
200
SOLENOID SWITCHTO 004 151 62 01,005 151 22 01
200
SOLENOID SWITCHTO A 006 151 21 01, A006 151 67 01
230
NUT , Replaced By: N304032010002
236
CARBON BRUSH SET PARTS KIT
999
HEXALOBULAR BOLTM10X35
