Поз.
Артикул
Описание

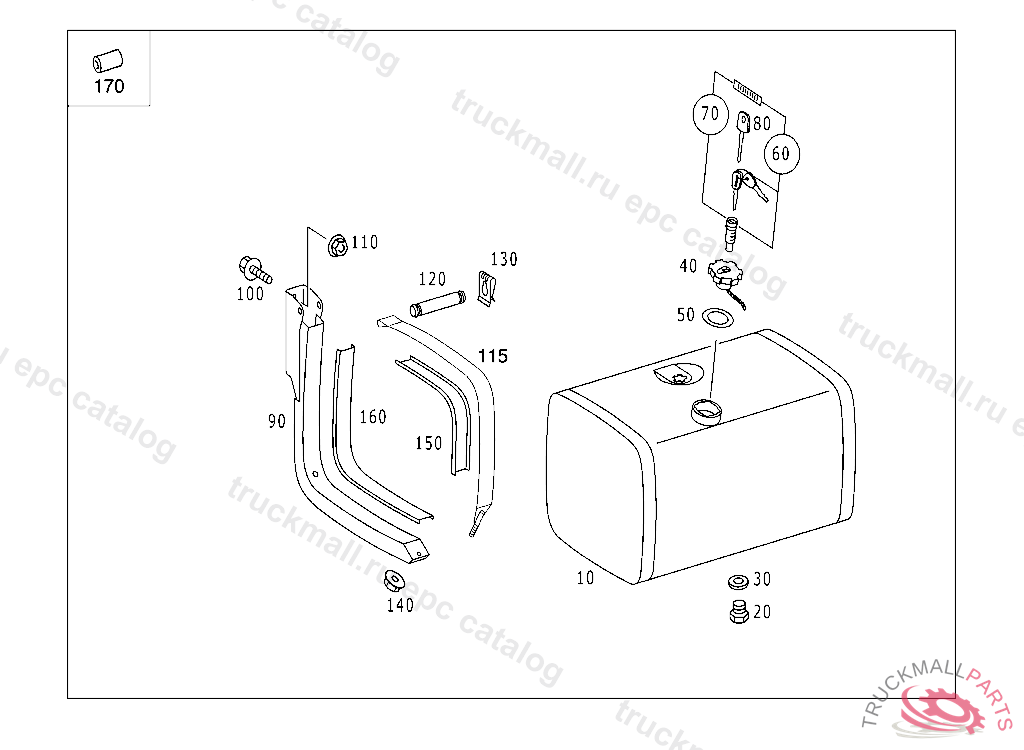

10
FUEL TANK STEEL VERSION 300 L, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9414701101
10
FUEL TANK STEEL VERSION 300 L, TO BE ADAPTED DURING ASSEMBLY
20
SCREW PLUG FUEL TANK
30
SEAL RING FUEL LINE TO FEED PUMP
40
FILLER CAP ,K 057755
50
SEAL RING
60
TUMBLER WITH KEY, ANY LOCK,K 057755
70
TUMBLER WITH LOCK DEFINED, STATE LOCK NUMBER WHEN ORDERING
80
KEY BLANK, STATE LOCK NUMBER WHEN ORDERING
90
SUPPORT FUEL TANK TO FRAME
90
SUPPORT FUEL TANK TO FRAME
100
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
100
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
100
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
100
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
110
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
115
STRAP FUEL TANK TO CONSOLE
120
PIN , Replaced By: A9444750074
120
PIN STRAP TO SUPPORT
130
CLIP RESERVOIR TO CAB FRONT PANEL
140
NUT STRAP TO SUPPORT M12X1.5
150
PAD STRAP 61 MM
160
PAD BRAKE ANCHOR 53 MM
170
SPACER TUBE TRAILER COUPLING TO REAR CROSS MEMBER
999
SPACER TUBE MOUNTING PARTS, Replaced By: A6458910653
