Mercedes N910105014009 - Винт M 14 X 1,5 X 70 10.9

1823 - 1833 950.508

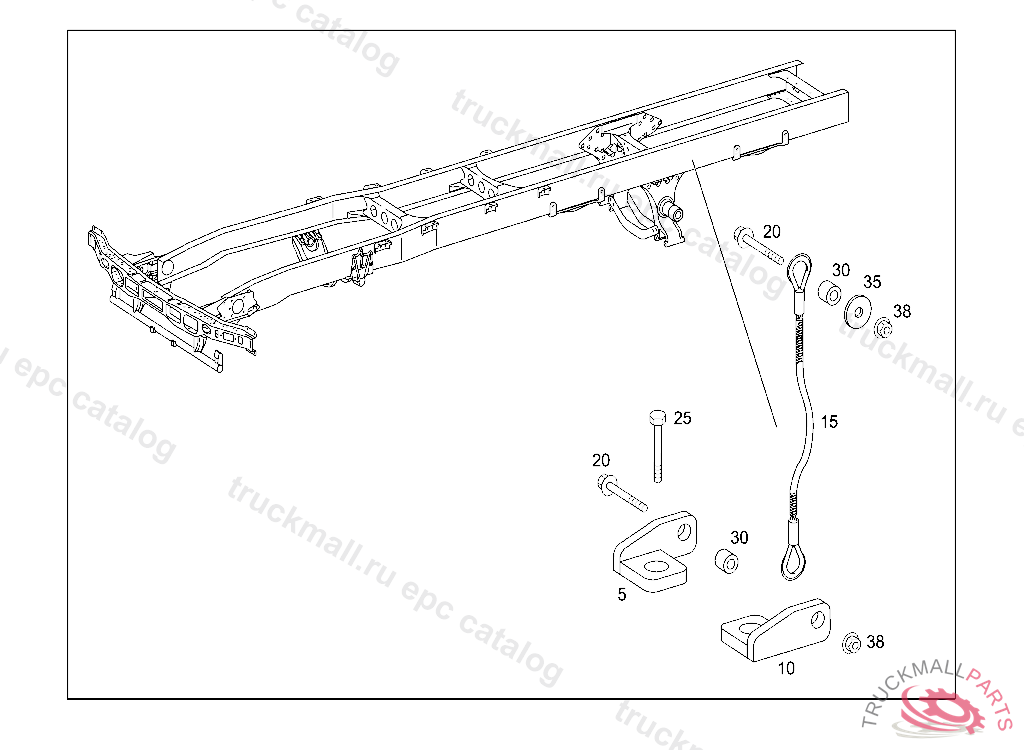

32 SPRINGS AND SUSPENSION - 001 CHECK STRAP MOUNTING,REAR AXLE IL.1

Поз.
Артикул
Описание
5
A6623170641
BRACKET AT REAR AXLE
10
A6623170741
BRACKET AT REAR AXLE
15
A6623200091
WIRE CABLE (RETAINING ROPE)
20
N910105014016
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
20
N910105014017
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
20
N910105014009
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
25
A0129902401
SCREW MOUNTING MATERIAL M24X270
30
A3602420053
SPACER TUBE AIR INTAKE
35
A4047910013
WASHER MOUNTING MATERIAL, TO BE ADAPTED DURING ASSEMBLY
35
N007349017003
WASHER TORSION BAR TO BEARING BRACKET
38
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
