Поз.
Артикул
Описание

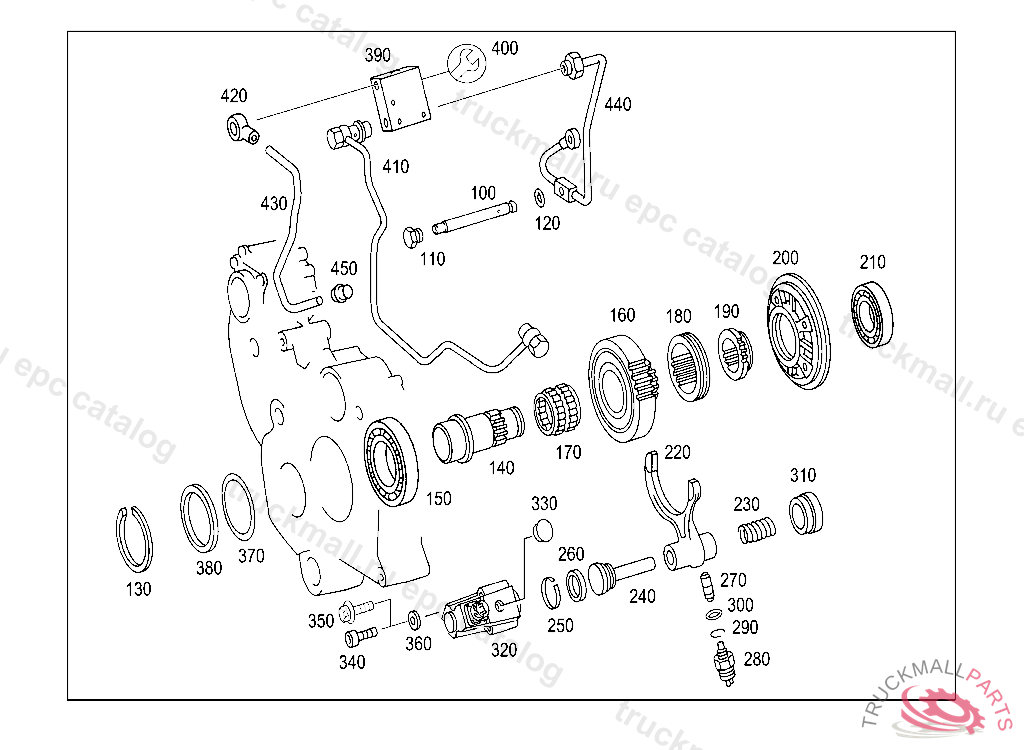

100
OIL PIPE P.T.O. LUBRICATION
110
SCREW PLUG OIL LINE TO P.T.O.
120
SEAL RING OIL LINE TO P.T.O.
130
LOCK WASHER DRIVE SHAFT,AS REQUIRED 2.25 MM, IN CONJUNCTION WITH CODE: KNR5
130
LOCK WASHER DRIVE SHAFT,AS REQUIRED 2.35 MM, IN CONJUNCTION WITH CODE: KNR5
130
LOCK WASHER DRIVE SHAFT,AS REQUIRED 2.40 MM, IN CONJUNCTION WITH CODE: KNR5
130
LOCK WASHER DRIVE SHAFT,AS REQUIRED 2.30 MM, IN CONJUNCTION WITH CODE: KNR5
140
DRIVE SHAFT FRONT
150
CYLINDR. ROLLER BEARING DRIVE SHAFT,FRONT
150
CYLINDR. ROLLER BEARING DRIVE SHAFT,FRONT
160
GEAR DRIVE SHAFT,FRONT
170
NEEDLE BEARING DRIVE GEAR
170
NEEDLE BEARING DRIVE GEAR
170
NEEDLE BEARING DRIVE GEAR
180
SLIDING COLLAR SHIFTING FORK,183596
190
FOLLOWER DRIVE SHAFT,FRONT
200
RING DRIVE SHAFT,FRONT
210
BALL BEARING DRIVE SHAFT,FRONT
210
BALL BEARING DRIVE SHAFT,FRONT
220
SHIFTING FORK P.T.O. CONTROL
230
SPRING SHIFTING FORK
240
PISTON P.T.O. CONTROL
250
SEAL RING FRONT,021425
250
RING , Replaced By: A0002642060, +001A9452640615
260
SEAL RING REAR,021425
270
PIN P.T.O. CONTROL
280
TAPPET SWITCH POWER TAKE-OFF UNIT CHECK (BAYONET TERMINAL)
280
SWITCH OPERATING CYLINDER DIFFERENTIAL LOCK, Replaced By: A0015454909
280
SWITCH OPERATING CYLINDER DIFFERENTIAL LOCK, Replaced By: A0015458409
290
SNAP RING P.T.O. INDICATOR ACTUATION
300
SEAL RING P.T.O. INDICATOR ACTUATION
310
BUSHING TRANSMISSION CASE REAR COVER
320
CYLINDER SHIFTING CYLINDER
320
CYLINDER , Replaced By: A9452641627, +003N910143008003
330
PLUG TO PLUG HYDRAULIC LINE
340
SCREW SPRING STOP
350
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
360
WASHER SHIFTING CYLINDER TO CASE
370
SPACER WASHER P.T.O. HOUSING, AS REQUIRED 0.20 MM, IN CONJUNCTION WITH CODE: KNR5
370
SPACER WASHER P.T.O. HOUSING, AS REQUIRED 0.50 MM, IN CONJUNCTION WITH CODE: KNR5
370
SPACER WASHER P.T.O. HOUSING, AS REQUIRED 0.10 MM, IN CONJUNCTION WITH CODE: KNR5
380
WASHER TRANSMISSION CASE REAR COVER
390
VALVE 2/2 -WAY VALVE,P.T.O. CONTROL
400
REPAIR KIT 2/2 -WAY VALVE
410
LINE 2/2 -WAY VALVE,P.T.O. CONTROL
420
BANJO UNION FUEL LINE TO FUEL TANK
430
PIPE FROM 2/2 -WAY VALVE TO TRANSMISSION
440
PIPE P.T.O. LUBRICATION
450
SEAL CONE
999
LINE FROM SOLENOID VALVE TO P.T.O.
999
LINE (COMPRESSED AIR LINE),P.T.O. CONTROL
