Mercedes A0009903204 - Болт

1831 LS - 1843 LS 954.053

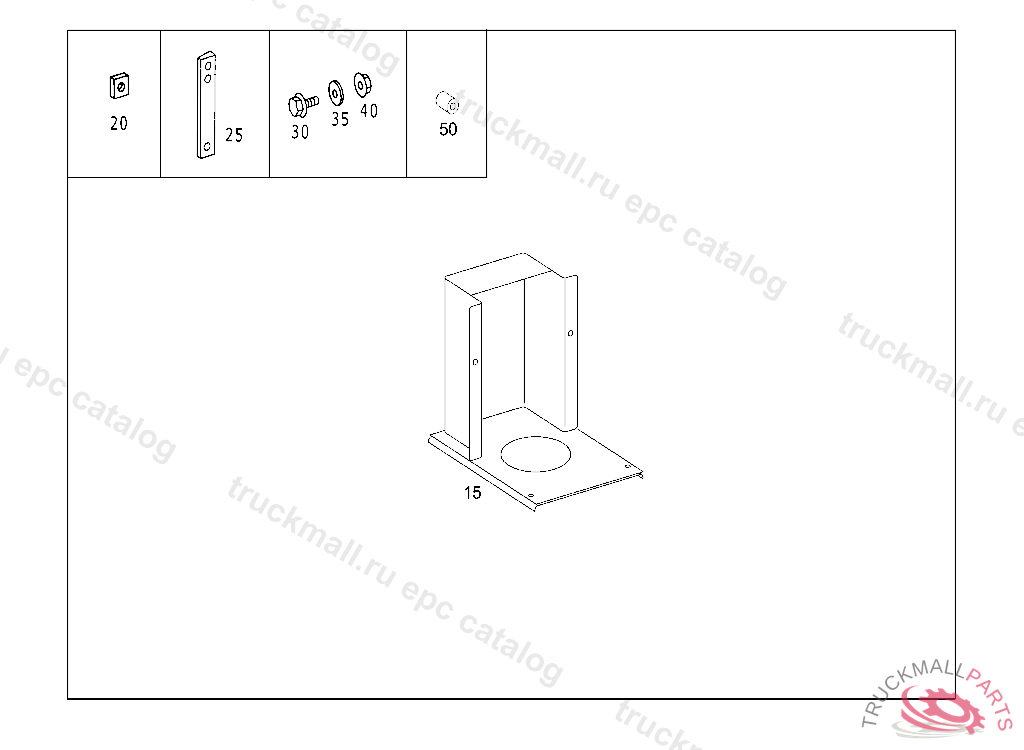

58 TOOLS AND ACCESSORIES - 001 TOOL BOX, ALUMINIUM 90 LITER

Поз.
Артикул
Описание
15
A6625800088
SUPPORT TOOL BOX TO FRAME
20
A6624752884
BASE MOUNTING PARTS 10MM
20
A6624751784
SHIM MOUNTING PARTS 7MM
25
A6624752684
SHIM MOUNTING PARTS
30
N910105014006
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
30
N910105014011
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
30
N910105014020
HEXAGON HEAD BOLT BRACKET TO SPRING SADDLE M14X1.5X110
30
N910105014019
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
30
A0009903204
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
35
N009021010209
WASHER BRACKET TO COVERING
40
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
40
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
50
A3103220030
SHACKLE PIN MOUNTING PARTS, TO BE ADAPTED DURING ASSEMBLY
50
Q6236756
BUSHING , Replaced By: A3103220030
999
A6625800505
TOOL BOX90 L
999
A6625801705
TOOL BOX90 L
999
A6625830295
PADLOCK TOOL BOX
