Mercedes N000000001468 - Хомут 60 - 80 X 13

2423 , 2425, 2428, 2429 958.090

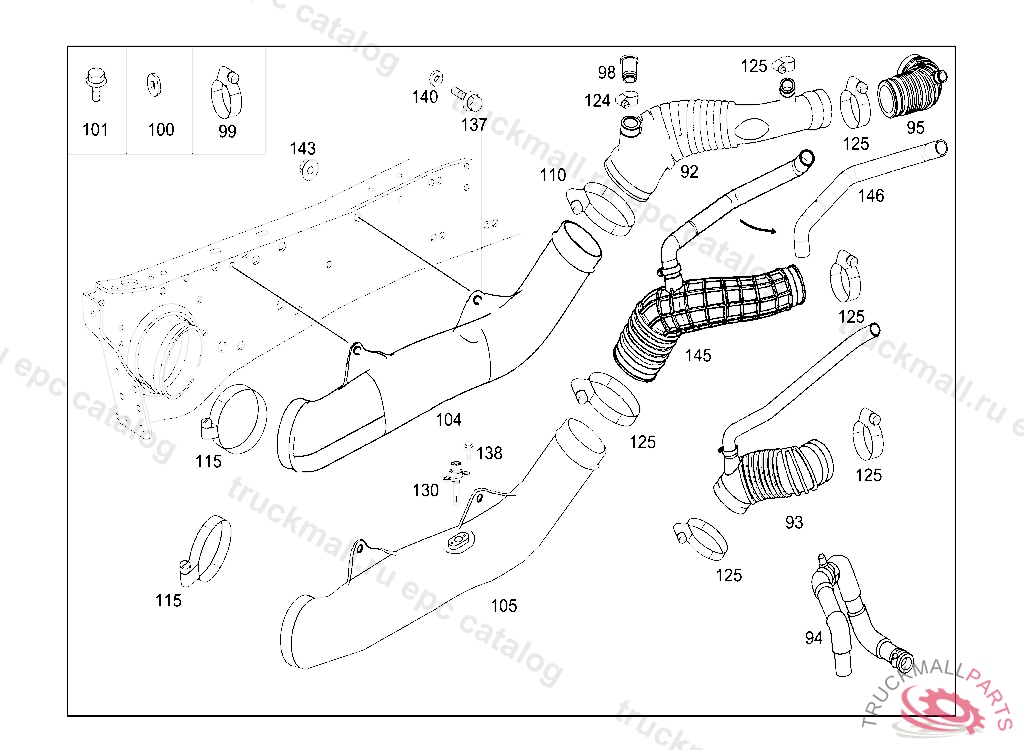

52 SHEET METAL,AIR INTAKE - 120 AIR INTAKE IL. 3

Поз.
Артикул
Описание
92
A9735280082
HOSE (MOLDED HOSE)
92
A9585280982
93
A9585200186
94
A9041300757
SUCTION LINE
95
A9705280982
98
A3825280010
COVER
99
N916016034200
CLAMP PUMP TO BRACKET
100
A3609902440
WASHER , Replaced By: A3609902340
101
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
104
A9705280208
105
A9705281808
110
N000000000677
CLAMP HOSE BETWEEN PIPE ELBOWS 120-140X13MM
110
N916018120000
CLAMP , Replaced By: N000000000677
115
N000000005891
CLAMP CONNECTING HOSE
124
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
125
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
125
N000000000676
CLAMP , Replaced By: A0059970690
125
N000000001468
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
125
N000000000668
CLAMP25-40X13 MM
125
N000000002727
CLAMP MOLDED HOSE
130
A0071531128
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR
137
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
137
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
138
N000000001475
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
140
N000000003333
WASHER BRACKET TO FUEL TANK SUPPORT
143
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
145
A9585200386
146
A9585282182
