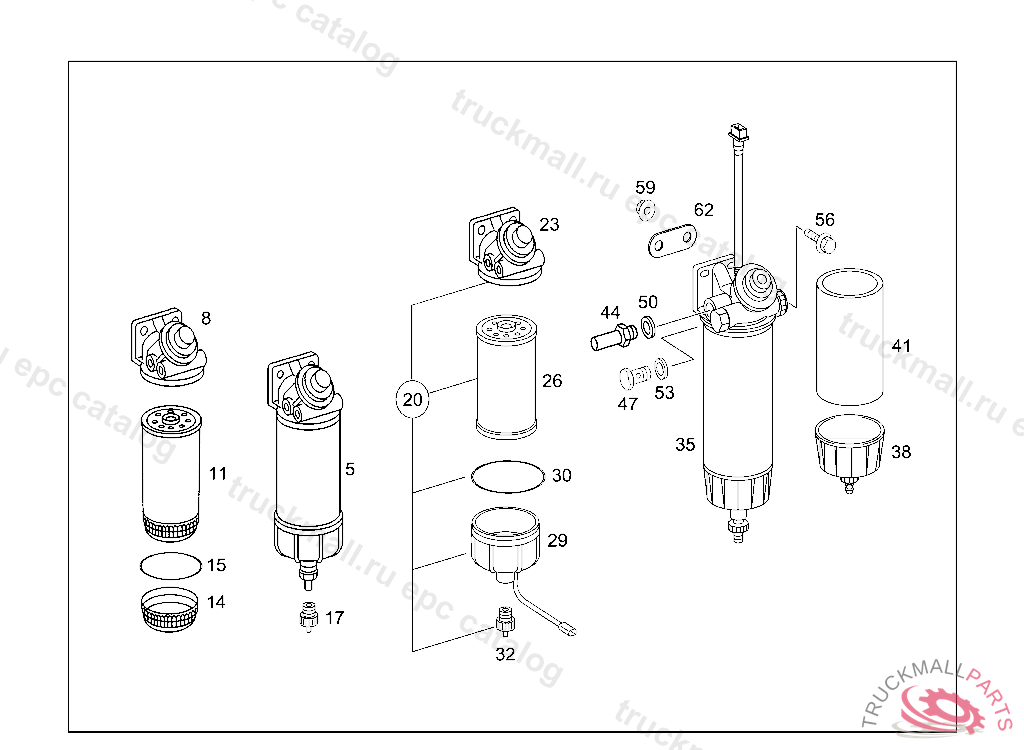

Поз.
Артикул
Описание
5
FUEL FILTERMANN
5
FUEL FILTER
8
FILTER HEAD
8
11
FILTER ELEMENTTOMANN
11
FILTER ELEMENTTORACOR
14
PART NAME MISSINGTOA 958 470 04 90 (MANN)
14
FILTER BOWL. TRAY
15
SEALING RINGTO A 958 477 01 16
17
FITTING. FILTER
20
20
23
FILTER HEAD. COVER
23
FILTER HEAD
26
FILTER ELEMENTTOMANN
26
FILTER ELEMENTTORACOR
29
29
BOTTOM PLATETOA 979 470 02 90
30
SEALING RINGTO A 958 477 01 16
32
FITTING. FILTER
35
SEPARATOR (WATER SEPARATOR), TO BE ADAPTED DURING ASSEMBLY
38
FILTER BOWL
41
FUEL FILTER
44
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
47
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
50
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
53
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
56
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
56
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
56
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
56
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
56
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
56
HEXAGON HEAD BOLT. SCREW BRACKET TO ENGINE SUPPORT
59
NUT BRACKET TO SIDE MEMBER M12X1.5
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
62
