Поз.
Артикул
Описание

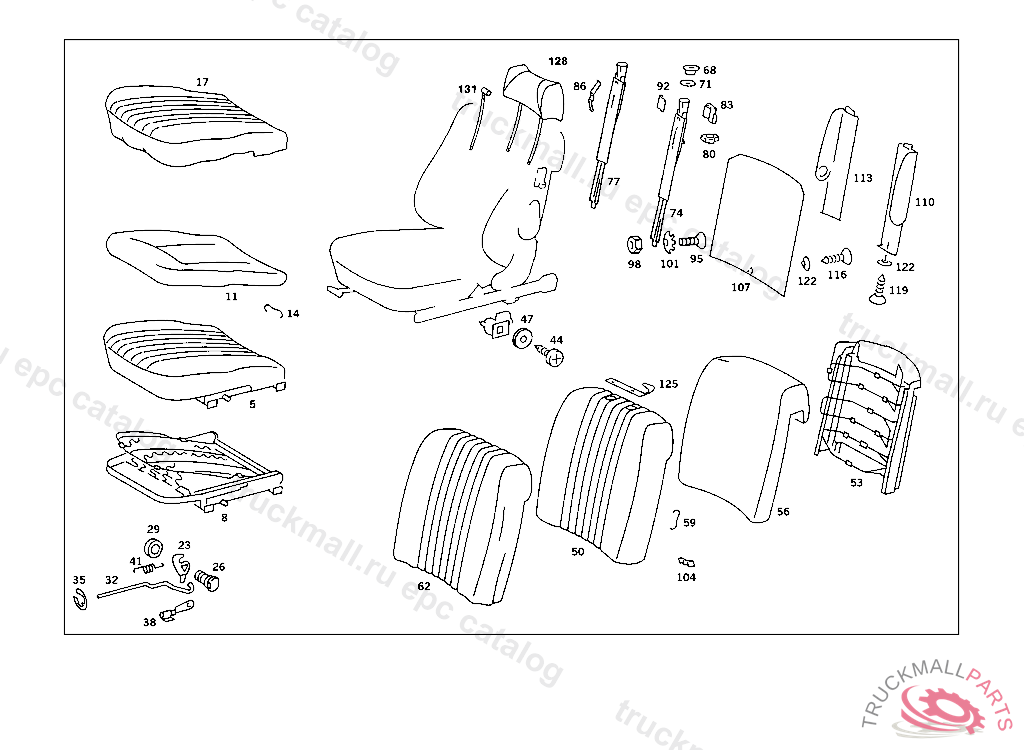

8
CUSHION FRAME , Replaced By: A1079100822
8
CUSHION FRAME
11
PAD
14
CLIP COVER TO PAD
17
COVER
23
HOOK RIGHT, FROM CHASSIS: 023 100223 072 101551 073 101423
23
HOOK LEFT, FROM CHASSIS: 023 100223 072 101551 073 101423
26
SCREW , FROM CHASSIS: 023 100223 072 101551 073 101423
29
NUT , FROM CHASSIS: 023 100223 072 101551 073 101423
32
LINK RIGHT,023 002034
32
LINK LEFT,023 002034
35
LOCK PLATE , 000 000032 003 000013 007 000799 086 006409 093 007546 102,103 000031 105 000017 183 013075 190 019713 283 001214
38
LOCK
41
SPRING ,023 002034
44
SHEET METAL SCREW OIL LINE MOUNTING
47
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
47
WASHER , Replaced By: N009021005205
53
BACKREST FRAME , 023 009198 024 005732 043 011158 044 017183
56
PAD , 023 009198 024 005750 ALSO INSTALLED ON 005731,005737-005745,005747,005748. EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 022 010478 025 003606 026 002684 042 011332 045 008195 046 000896, Replaced By: A1079100416
56
PAD , 023 009198 024 005750 ALSO INSTALLED ON 005731,005737-005745,005747,005748.
59
CLIP COVER TO PAD
62
COVER
68
EYE
68
EYE , Replaced By: A1269880182
68
EYE , Replaced By: A1269880182
71
EYE , Replaced By: A1239880382
71
EYE
74
RAIL LEFT
77
RAIL RIGHT, HEADREST
80
SLIDE
83
FRICTION PIECE TOP
86
SPRING QUIDE RAIL,LEFT
86
SPRING , Replaced By: A1249750137
86
SPRING , Replaced By: A1249750137
92
CLIP
95
SCREW SWITCH TO INSTRUMENT PANEL
98
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
101
TOOTHED WASHER CABLE TO FUSE BOX
104
CLIP
107
PANELLING
110
PANELLING LEFT, LEFT FRONT SEAT BACKREST
110
PANELLING LEFT, RIGHT FRONT SEAT BACKREST
113
PANELLING RIGHT, RIGHT FRONT SEAT BACKREST
113
PANELLING RIGHT, LEFT FRONT SEAT BACKREST
119
SHEET METAL SCREW
119
SHEET METAL SCREW , Replaced By: N007983004205
122
WASHER
125
GUIDE , ONLY REPLACEABLE BY PAIRS, Replaced By: A1078680122
125
GUIDE , UP TO CHASSIS NEW EQUIPMENT 9/79 107.042 006720 EXCEPT FOR 006341,006410,006449,006450,006710-006719. 107.043 014796 EXCEPT FOR 014472,014717 107.044 058394 EXCEPT FOR 057628,057973,057975,058211,058260,058280,058284,058289,058296,058297,058305,058324-058348,058350- 058369,058371-058392.
128
HEADREST , STATE COLOR NUMBER WHEN ORDERING
128
HEADREST
128
HEADREST COMPLETE,BUT LESS COVER
131
CLAMP LEFT, 100.012 FROM CHASSIS 001902 EXCEPT FOR:001928-001940,107.023,044 FROM CHASSIS 000001,CONTINUED,SEE FOOTNOTE 66
131
CLAMP RIGHT, 100.012 FROM CHASSIS 001902 EXCEPT FOR:001928-001940,107.023,044 FROM CHASSIS 000001,CONTINUED,SEE FOOTNOTE 66
