Mercedes A0019971530 -

350 SLC TO 09/85 107.023

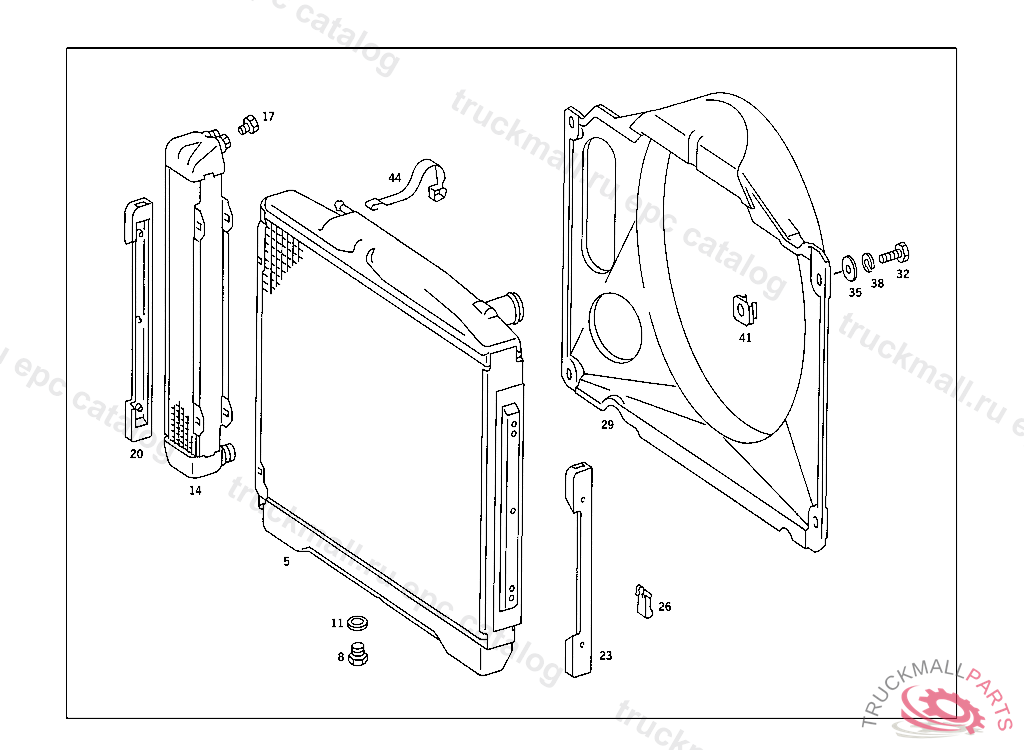

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING

Поз.
Артикул
Описание
5
A1075010901
RADIATOR
8
N007604014110
SCREW PLUG FUEL TANK
8
N007604014106
SCREW PLUG , Replaced By: N007604014110
11
N007603014405
SEAL RING FUEL LINE TO FEED PUMP
14
A1161801665
OIL COOLER , 023 003907 EXCEPT FOR 004595-004985 024 000358 043 009080 EXCEPT FOR 009266-009410 044 007791
14
A1161800265
OIL COOLER , 023 003906 ALSO INSTALLED ON 004595-004985 024 000357 043 009079 ALSO INSTALLED ON 009266-009410 044 007790
17
A0019971530
SCREW PLUG , 036 NOT FOR AUSTRALIA
20
A1075040012
RUBBER MOUNTING
23
A1075040112
RUBBER MOUNTING
26
A0039880678
CLIP
29
A1075050255
FAN SHROUD
32
N304017005002
SCREW LEVER TO SHAFT
32
N000933005075
SCREW , Replaced By: N304017005002
35
A0019901840
WASHER , Replaced By: A1269901440
35
A1269901440
WASHER
38
N912004005100
LOCK WASHER T-FITTING TO BRACKET
41
A0005050172
NUT
44
A1075040186
SPRING
