Поз.
Артикул
Описание

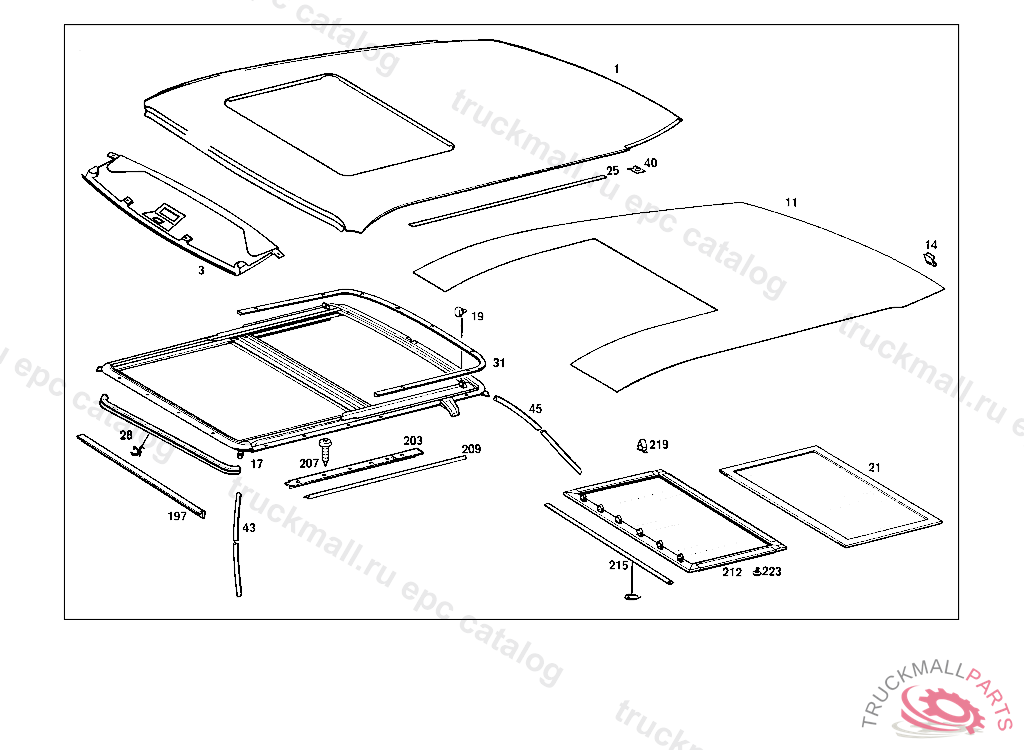

1
ROOF PANELLING
3
INNER MOULDING , 107.022 001022 107.023 010497 107.024 010756 ALSO INSTALLED ON 010745-010754 107.042 000844 107.043 012034 107.044 027280 ALSO INSTALLED ON 027268,027277 CREMA-GREYNO.8227 CODE 001,002,005,006,201,202,205,206,207,901,902,905,906 BAMBOONO.8038 CODE 003,004,203,204,903,904
11
HEADLINER
14
LOCK FENDER TO BODY
17
FRAME
19
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
21
COVERING
25
SEAL BETWEEN ROOF PANELLING AND BOTTOM FRAME
28
SEAL BETWEEN SLIDING ROOF PLATE,FRONT,AND ROOF OPENING
31
SEAL BETWEEN REINFORCEMENT FRAME AND BOTTOM FRAME
40
LOCK FRAME TO REINFORCEMENT FRAME
43
HOSE
45
HOSEWASSERABLAUF HINTEN 250 MM
197
COVER RAIL
203
SLIDING RAIL LEFT FRONT
207
SCREW
207
SCREW , Replaced By: A1409900436
209
SLIDING RAIL LEFT
212
FRAME WITH HEADLINER FOR SLIDING ROOF PLATE, NEW EQUIPMENT 9/79 107.022 001021 107.023 010496 107.024 010755 EXCEPT FOR 010745-010754107.042 000843 107.043 012033 107.044 027279 EXCEPT FOR 027268,027277 FOR COLOR AND CODE NOS.,SEE PASSENGER CAR EQUIPMENT MANUL
215
RUBBER SEAL LEATHER & IMITATION LEATHER 837 MM
219
CLIP
223
FASTENER BUTTON
999
FUSEA16
999
CABLE SHOE , UP TO CHASSIS 107.022 003727 EXCEPT FOR 003725,003726,107.023 011770 EXCEPT FOR 011769,107.024 018073 EXCEPT FOR 018049, 018052-018072 AND FOOTN.123
999
CONNECTOR , Replaced By: A0008212426, +004A0015454426, +001A0105456628
999
FOAM PLASTICS , Replaced By: A0009833598
999
FOAM PLASTICS , Replaced By: A0009831298
999
FOAM PLASTICS 10 MM, ORDER BY THE METER
999
FELT60X20X2 MM, ORDER BY THE METER
999
FOAM PLASTICS FRONT ROOF RAIL
999
BUSHING MOTOR TO BRACKET
999
SWITCH , Replaced By: A0008206210
999
CLIP ELECTRIC CABLE MOUNTING
999
GROMMET GEARING TO BRACKET
999
CLIP PLUG TO REAR PILLAR
999
INNER MOULDING , 107.023 009349 107.024 006453 FOR COLOR AND CODE NOS.,SEE PASSENGER CAR EQUIPMENT MANUL
999
COVERING (LUGGAGE COMPARTMENT,LATERAL RIGHT), 107.022 004172 107.023 011998 107.024 019201 EXCEPT FOR 019191-019193 FOR THE NEW PART,SEE STANDARD VERSION
999
BOW
999
BOW
999
ANGLE , 107.023 006965 107.024 001316, Replaced By: A1077801212, +001A1077801112
999
BRACKET , NO LONGER AVAILABLE
999
ANGLE RIGHT FRONT
999
ANGLE RIGHT
999
ANGLE LEFT REAR, 107.023 006966 107.024 001317
999
ANGLE RIGHT REAR, 107.023 006966 107.024 001317
999
SLIDING JAW
999
STOP , EXHAUST STOCK OF OLD PARTS 107.022 001863 107.023 010842 107.024 012820, Replaced By: A1237820138
999
RAIL RIGHT
999
SLIDING RAIL RIGHT FRONT
999
STOP , EXHAUST STOCK OF OLD PARTS 107.022 001863 107.023 010842 107.024 012820, Replaced By: A1237820238
999
PAD , 107.023 003734 107.024 000343
999
PAD
999
PAD
999
PAD
999
PAD
999
PAD , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1077870497
999
ELECTRIC CABLE ELECTRIC SLIDING ROOF
999
SEAL480 MM
999
SLIDING RAIL RIGHT
999
EXPANSION PLUG IN FRONT PANEL PILLAR,OUTSIDE, FOR SLIDING ROOF HOSE
999
PAD HEIGHT ADJUSTMENT,RIGHT
999
SLIDING SHOE
999
STOP RIGHT
999
FASTENER BUTTON MOUNTING PARTS
999
RIVET
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
SCREW
999
WASHER , Replaced By: N000433005304
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER BOOT TO CAB FLOOR
999
RIVET
999
SCREW SHUT-OFF VALVE TO BRACKET
999
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
SCREW COVER PLATE TO BRACKET
999
NUT BALL PIVOT TO LEVER
999
SCREW
999
TOOTHED WASHER , 123.020 082784 123.023 100522 123.026 050534 123.120 116041 123.123 080963 123.126 045537 123.130 101733
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW FENDER TO BODY
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
SHEET METAL SCREW , Replaced By: N000000002062
999
SHEET METAL SCREW , Replaced By: N007981004233
999
SHEET METAL SCREW
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
999
COMBINATION BOLT OIL COOLER, ONLY FOR AUSTRIA,SWITZERLAND,SWEDEN,BERLIN TAXI
