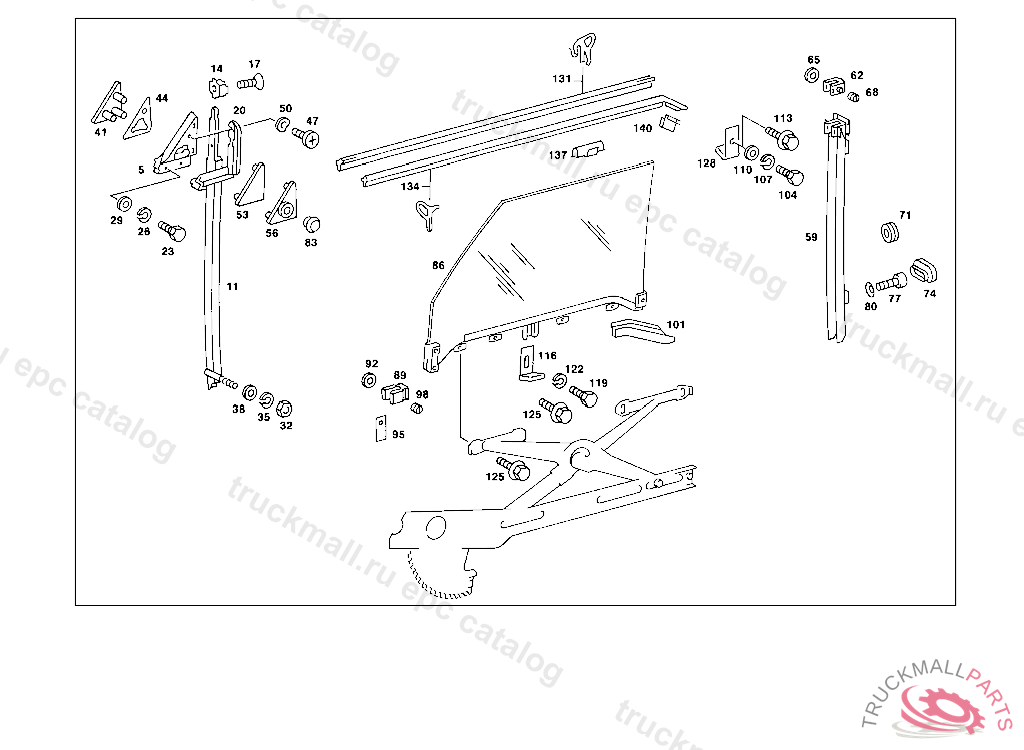

Поз.
Артикул
Описание
5
WINDOW GUIDE RIGHT
5
WINDOW GUIDE LEFT
5
WINDOW GUIDE , 022 001499 023 010726 024 012001 042 001196 043 012143 044 029711, Replaced By: A1077250730
5
WINDOW GUIDE , 022 001556 023 010750 024 012127 042 001271 043 012163 044 030012, Replaced By: A1077250830
11
GUIDE RAIL RIGHT
11
GUIDE RAIL LEFT
14
BRACKET
17
SCREW , UP TO CHASSIS: 010 025153 015 022706 110 054450 112 054298 115 025119
20
WINDOW RUN LEFT
20
WINDOW RUN RIGHT
23
SCREW PUMP TO BRACKET
23
SCREW COVER PLATE TO BRACKET
26
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
29
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
29
WASHER COMPRESSED AIR LINE TO BRACKET
32
NUT
32
NUT , Replaced By: N304032008006
35
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
38
WASHER EXHAUST MUFFLER TO STRAP
38
WASHER , Replaced By: N000125008443
41
PLATE OUTSIDE LEFT
41
PLATE
44
SEAL
47
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
47
SCREW , Replaced By: N007985004107
50
SPRING WASHER ALTERNATOR CONNECTION D+
53
PLATE INSIDE LEFT
53
PLATE
56
PLATE INSIDE, 107.022 001610 107.023 010772 107.024 012262 107.042 001313 107.043 012198 107.044 030336
56
PLATE , 107.022 001301 107.023 010643 107.024 011611 107.042 001098 107.043 012111 107.044 029127
56
PLATE INSIDE RIGHT
56
PLATE INSIDE LEFT, 107.022 001609 107.023 010771 107.024 012261 107.042 001312 107.043 012197
59
GUIDE RAIL REAR LEFT
59
GUIDE RAIL , Replaced By: A1077201315
59
GUIDE RAIL , Replaced By: A1077201415
59
GUIDE RAIL , Replaced By: A1077200515
59
GUIDE RAIL , Replaced By: A1077200615
59
GUIDE RAIL REAR RIGHT
62
SLIDE
65
RING
68
SCREW , 042 001267
71
EXPANSION PLUG (FOR DOOR-HANDLE-ASSEMBLY MOUNTING HOLE IN FRONT DOOR INTERIOR PLATE)
74
EXPANSION PLUG
77
SCREW DOOR HANDLE TO DOOR
80
FITTED WASHER
80
WASHER , Replaced By: N000988008024
83
RUBBER SLEEVE , 107.024 012128 107.044 030013
86
CRANK OPERATED WINDOW RIGHT
86
CRANK OPERATED WINDOW , Replaced By: A1077202718
86
CRANK OPERATED WINDOW , Replaced By: A1077202818
86
CRANK OPERATED WINDOW LEFT
89
SLIDE , 022 003702 023 011757 024 017974 042 002943 043 012995 044 040440
89
SLIDE , ORDER ADDITIONALLY 1 X113 725 00 99 + 1 X113 990 03 77 FROM CHASSIS 023 009785-009866 024 007641-007929 043 011471-011533 044 020873 044 020873-021251 022 003701 023 011756 024 017973 042 002942 043 012994 044 040439, Replaced By: A1077250434, +001A1077250997
92
RING
95
PAD , Replaced By: A1077250997
95
PAD , Replaced By: A2087200042
95
SLIDING JAW BETWEEN GUIDE JAW AND GLASS PANE
98
SCREW , 042 001267
101
WATER DEFLECTOR RAIL RIGHT
101
WATER DEFLECTOR RAIL LEFT
104
SCREW COVER PLATE TO BRACKET
104
SCREW PUMP TO BRACKET
107
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
110
LOCK. WASHER ELECTRIC MOTOR TO BRACKET
113
COMBINATION BOLT BATTERY FRAME TO CONSOLE, TOP
116
STOP BOTTOM
119
SCREW PUMP TO BRACKET
119
SCREW COVER PLATE TO BRACKET
122
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
125
COMBINATION BOLT BATTERY FRAME TO CONSOLE, TOP
128
STOP TOP
131
SEALING RAIL INSIDE LEFT AND RIGHT
131
SEALING RAIL , Replaced By: A1237250265, +005A1239880378
134
SEALING RAIL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 042 015517 045 022256 046 002629 022,023,024,025,026,043,044 UNTIL PRODUCTION STOP, Replaced By: A1077252365
134
SEALING RAIL , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 042 015517 045 022256 046 002629 022,023,024,025,026,043,044 UNTIL PRODUCTION STOP, Replaced By: A1077252465
134
SEALING RAIL RIGHT INSIDE
134
SEALING RAIL LEFT INSIDE
137
CLIP
137
CLIP
140
CLIP ,A 006779
999
GUIDE JAW LEFT
999
GUIDE JAW RIGHT
