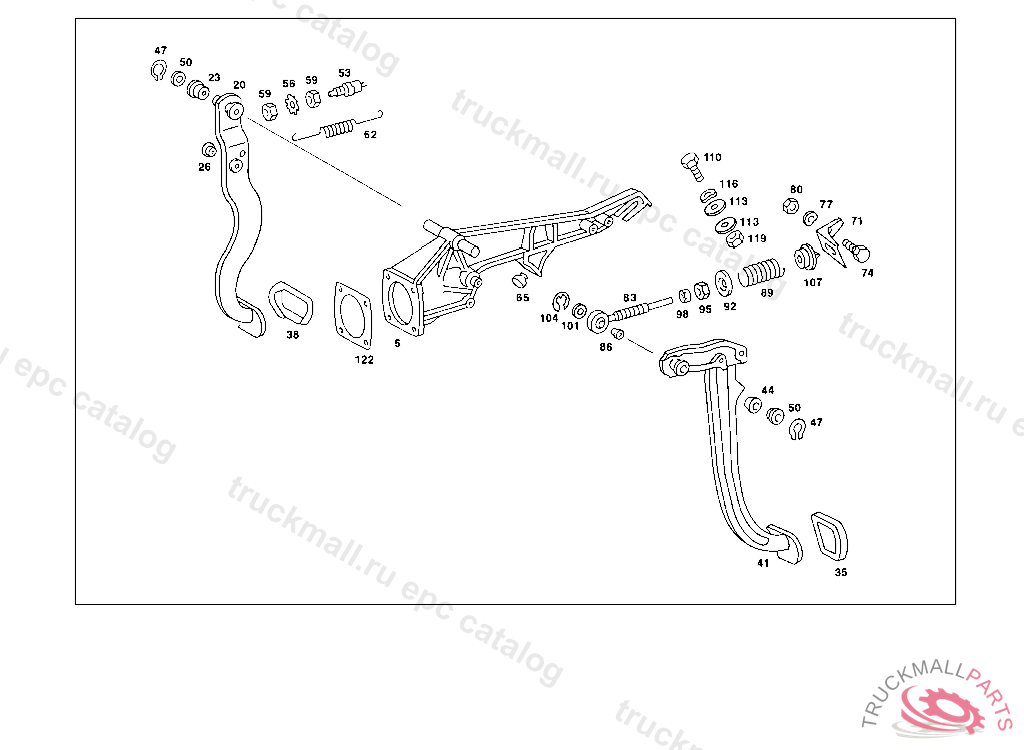

Поз.
Артикул
Описание
5
BEARING BRACKET , FROM CHASSIS: 020 114552 024,025 136352 028,029 051401 032,033 090506 036 005863
5
BEARING BRACKET , FROM CHASSIS: 024 136352 033 090506 036 005863 120 007854
20
PEDAL BRAKE PEDAL, 022 007568 023 013674 024 028398 026 001238 042 006762 043 014821 044 058449
20
PEDAL
23
BUSHING BRAKE PEDAL
23
BUSHING , Replaced By: A1242920050
26
BUSHING
38
PAD BRAKE PEDAL
47
LOCK STOP TO BEARING BRACKET
47
LOCK AT WATER EXPANSION TANK
50
WASHER PEDALS TO PIVOT PINS
53
SWITCH STOP LIGHT
56
TOOTHED WASHER STOP LIGHT SWITCH TO PEDAL BEARING BRACKET
59
NUT SWITCH
62
SPRING
110
SCREW OIL LINE TO CRANKCASE
113
WASHER , Replaced By: N009021006208
113
WASHER COMPRESSED AIR LINE TO BRACKET
116
SPRING WASHER LICENSE PLATE TO BRACKET
119
NUT CYLINDER TO BRACKET TO0002902112
119
NUT BATTERY MOUNTING
122
GASKET
