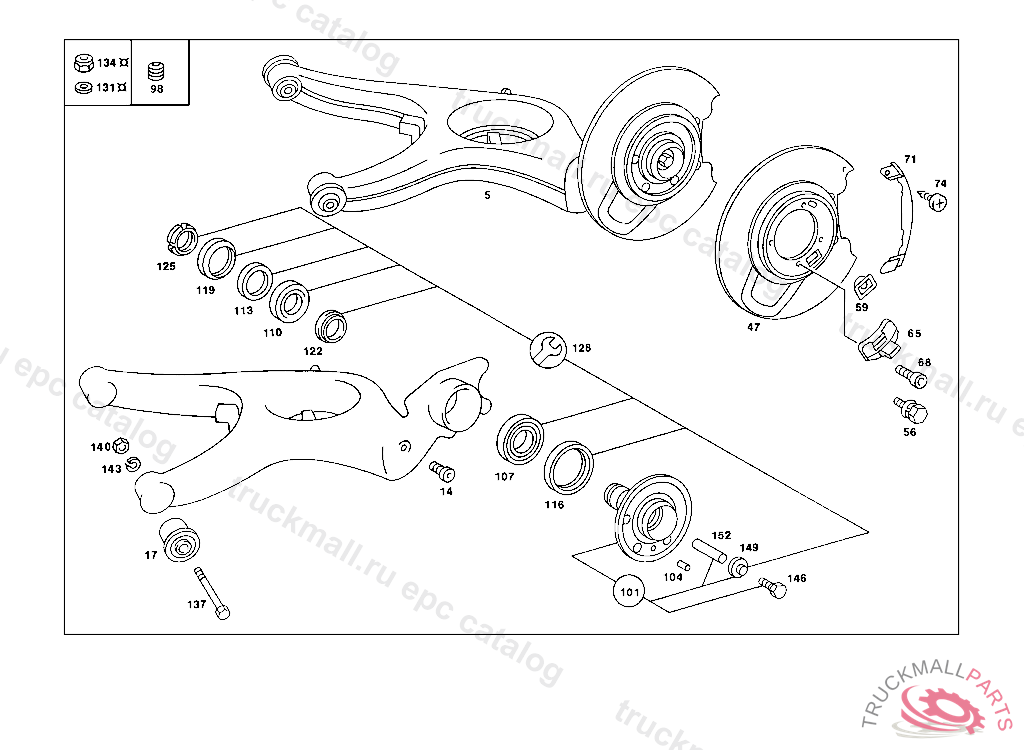

Поз.
Артикул
Описание
5
CONTROL ARM LEFT TRANSVERSE CONTROL ARM, WITH WHEEL BEARING AND COVER PLATE
5
CONTROL ARM RIGHT TRANSVERSE CONTROL ARM, WITH WHEEL BEARING AND COVER PLATE
5
CONTROL ARM , Replaced By: A1263503205, +002A1263520165
5
CONTROL ARM , Replaced By: A1263503305, +002A1263520165
14
PLUG
17
RUBBER MOUNTING REPAIR SIZE, WITH ECCENTRIC INTERIOR BUSHING
17
RUBBER MOUNTING TRANSVERSE CONTROL ARM TO SUBFRAME
47
PROTECTIVE PLATE REAR WHEEL BRAKE,RIGHT
47
PROTECTIVE PLATE REAR WHEEL BRAKE,LEFT
56
COMBINATION BOLT
59
CUP COVER PLATE TO TRANSVERSE CONTROL ARM
65
BRAKE ANCHOR BRAKE SHOE
65
BRAKE ANCHOR BRAKE SHOE
65
BRAKE ANCHOR BRAKE SHOE
68
SCREW BRAKE SHOE SUPPORT TO TRANSVERSE CONTROL ARM
98
GROMMET BRAKE CABLE TO REAR AXLE
101
FLANGE PARTS KIT,RIGHT
101
FLANGE , Replaced By: A1263501546
101
FLANGE , Replaced By: A1263501646
101
FLANGE PARTS KIT,LEFT
104
DOWEL PIN
107
TAPERED ROLLER BEARING RING GEAR BEARING, REAR AXLE HOUSING WITH DIFFERENTIAL AND WITH SIDE BEARING CAPS 003 103238 007 087550 086 007105 093 008991 102,103 240182 105 231728 183 015394 190 021956 193 002092 200 027294 280 000776 283 003631
110
TAPERED ROLLER BEARING INSIDE
113
THRUST WASHER
116
SEAL RING OUTSIDE
119
SEAL RING INSIDE
122
SPACER BUSHING
125
GROOVED NUT
128
REPAIR KIT REAR WHEEL BEARING
131
WASHER AXLE HOUSING TO REAR SUBFRAME
134
NUT STRUT TO PROPELLER SHAFT BEARING BRACKET
137
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
137
SCREW , Replaced By: N000960016250
140
NUT
143
LOCK WASHERROCKINGER TYP 59 G140,59 G150
146
SCREW AXLE SHAFT TO REAR AXLE SHAFT FLANGE M 8 X 85
149
WASHER AXLE SHAFT TO REAR AXLE SHAFT FLANGE
152
SPACER TUBE AXLE SHAFT TO REAR AXLE SHAFT FLANGE 67,3 MM
999
CONTROL ARM RIGHT
999
CONTROL ARM LEFT
999
REPAIR KIT
