Mercedes
›
CAR
›
380 SLC USA TO 09/85
›
107.025
›
47 FUEL SYSTEM
›

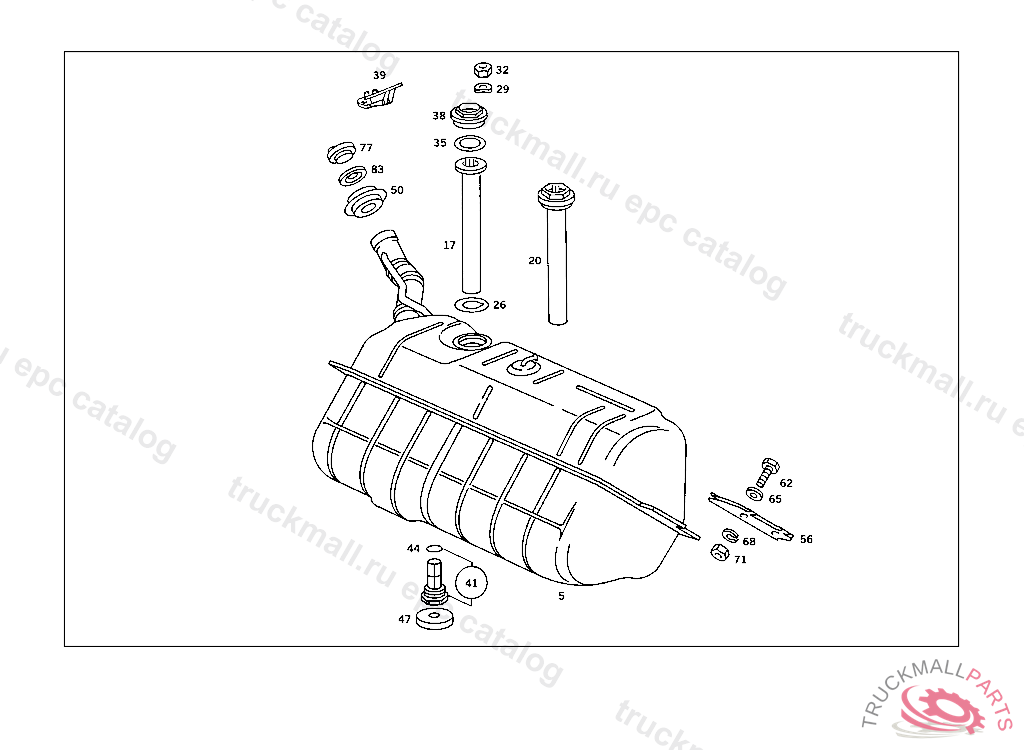

015 FUEL TANK WITH ATTACHMENT PARTS IL. 1
Mercedes A1154710079 - УПЛОТНЕНИЕ
380 SLC USA TO 09/85 107.025
47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS IL. 1
Поз.
Артикул
Описание
5
A1074703201
FUEL TANK , 022 002583 023 011154 024 014504
20
A1075420704
GAUGE SENDER UNIT , 022 002583 023 011154 024 014504
35
A1079971345
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
39
A1164700129
FUNNEL , Replaced By: A1694700029
41
A2014700406
FUEL STRAINER
44
A1109970145
SEAL RING
47
A1074710980
GASKET
50
A1079972481
GROMMET
56
A1074700133
REINFORCEMENT FUEL TANK TO CONSOLE
65
A1089900340
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
68
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
71
N304032008006
NUT
71
N000934008010
NUT , Replaced By: N304032008006
77
A1244700005
FILLER CAP , Replaced By: A0004700730
83
A1154710079
SEAL RING
