Mercedes A1154710079 - УПЛОТНЕНИЕ

450 SLC 5.0, 500 SLC TO 09/85 107.026

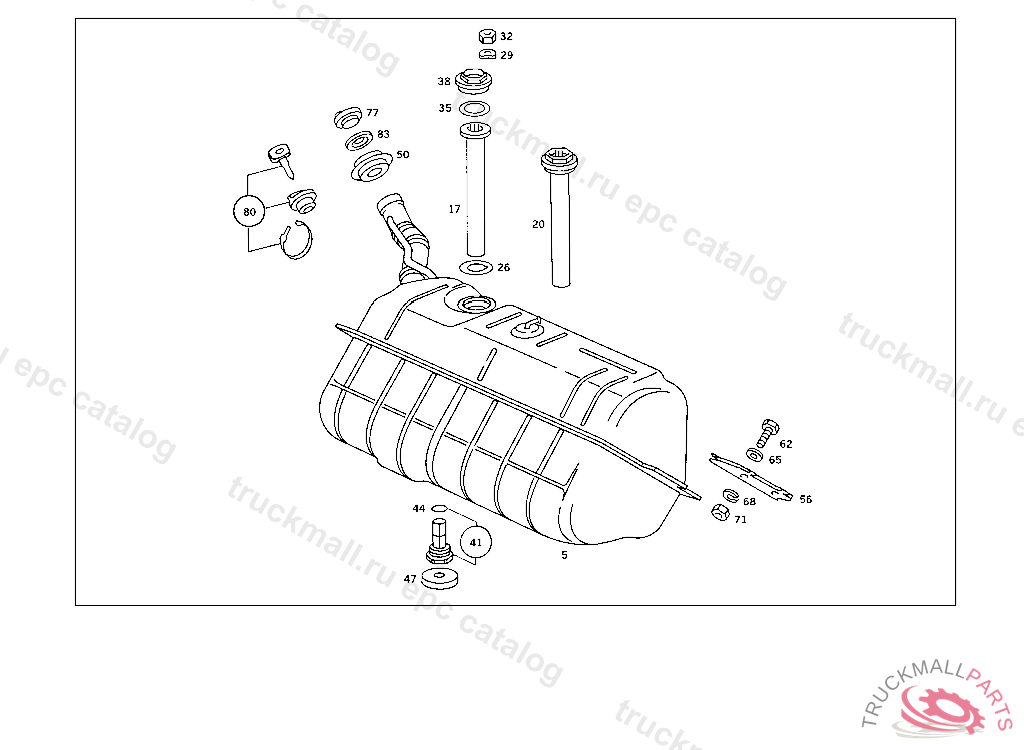

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS IL. 1

Поз.
Артикул
Описание
5
A1074703201
FUEL TANK , 022 002583 023 011154 024 014504
20
A1075420704
GAUGE SENDER UNIT , 022 002583 023 011154 024 014504
35
A1079971345
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
41
A2014700406
FUEL STRAINER
44
A1109970145
SEAL RING
47
A1074710980
GASKET
50
A1079972481
GROMMET
56
A1074700133
REINFORCEMENT FUEL TANK TO CONSOLE
65
A1089900340
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
71
N000934008013
NUT
77
A0004716130
FILLER CAP *** FA.HUF, STATE LOCK NUMBER WHEN ORDERING
77
A2014710130
FILLER CAP MAKE HUF, STATE LOCK NUMBER WHEN ORDERING LOCK NUMBER UP TO 2000,MAKE HUF, LOCK NUMBER FROM2001-3200,MAKE YMOS
77
A1244700005
FILLER CAP , Replaced By: A0004700730
80
A1234710230
FILLER CAP , WITH LOCK UNDEFINED
83
A1154710079
SEAL RING
