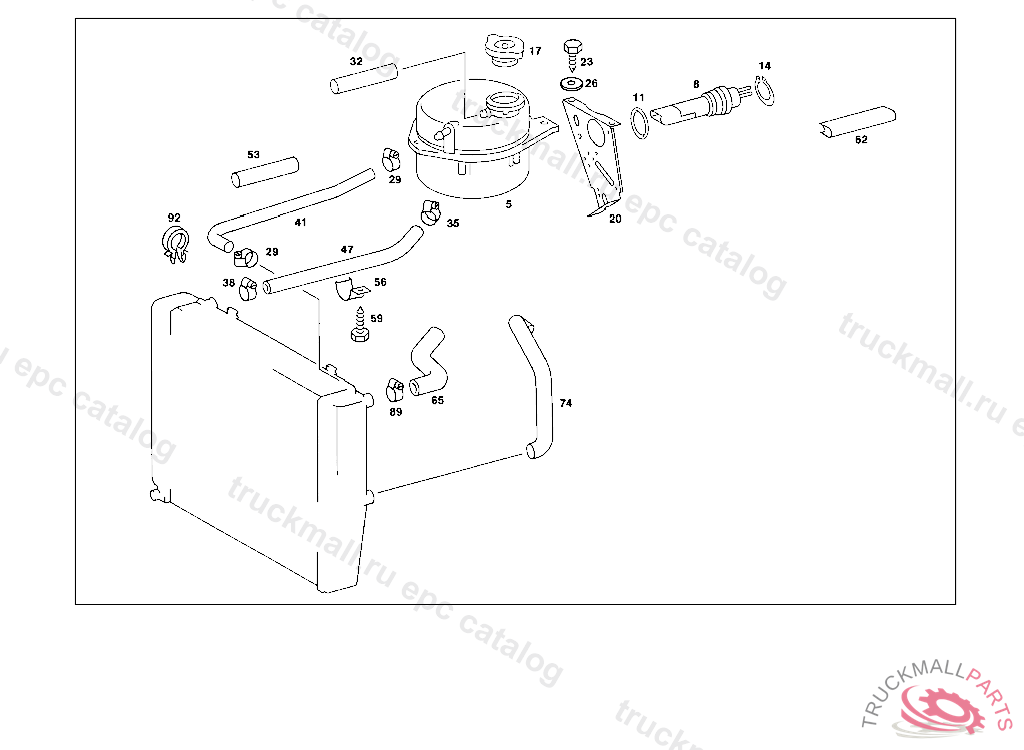

Поз.
Артикул
Описание
5
TANK
8
SWITCH COOLING WATER LEVEL INDICATOR
11
SEAL RING
14
LOCK RING MAIN SHAFT,FRONT
17
CLOSING COVER RADIATOR
17
RADIATOR CAP
17
FILLER CAP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 205503, Replaced By: A1245000406
20
BRACKET , Replaced By: A1075010020
20
BRACKET , 023 009850 024 007850 043 011508 044 021172 ALSO INSTALLED ON 021165,021170.
23
SHEET METAL SCREW
26
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
26
WASHER , Replaced By: N009021005205
29
CLAMP , Replaced By: A0059970190
29
CLAMP , Replaced By: A1409950036
29
HOSE CLAMP LINE MOUNTING
32
HOSE
32
HOSE , Replaced By: A0219977682
35
LOOM TIE , Replaced By: N000000000668
35
CLAMP , Replaced By: A0069970490
35
CLAMP25-40X13 MM
38
CLAMP PRESSURE REGULATOR
41
HOSE , Replaced By: N000000000734
41
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
47
HOSE FROM EXPANSION TANK TO RADIATOR
53
INSULATING HOSE16X1 MM, ORDER BY THE METER
56
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
59
SHEET METAL SCREW BRACKET TO CAB FLOOR
62
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
62
EDGE GUARD SECTION , Replaced By: A0029873572
62
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
65
HOSE TOP
74
HOSE BOTTOM,A 082029
74
HOSE BOTTOM,A 082028
89
CLAMP , Replaced By: A0069970590
89
LOOM TIE
92
BRACKET DE-AERATION LINE TO 124 505 03 55 / 04 55
