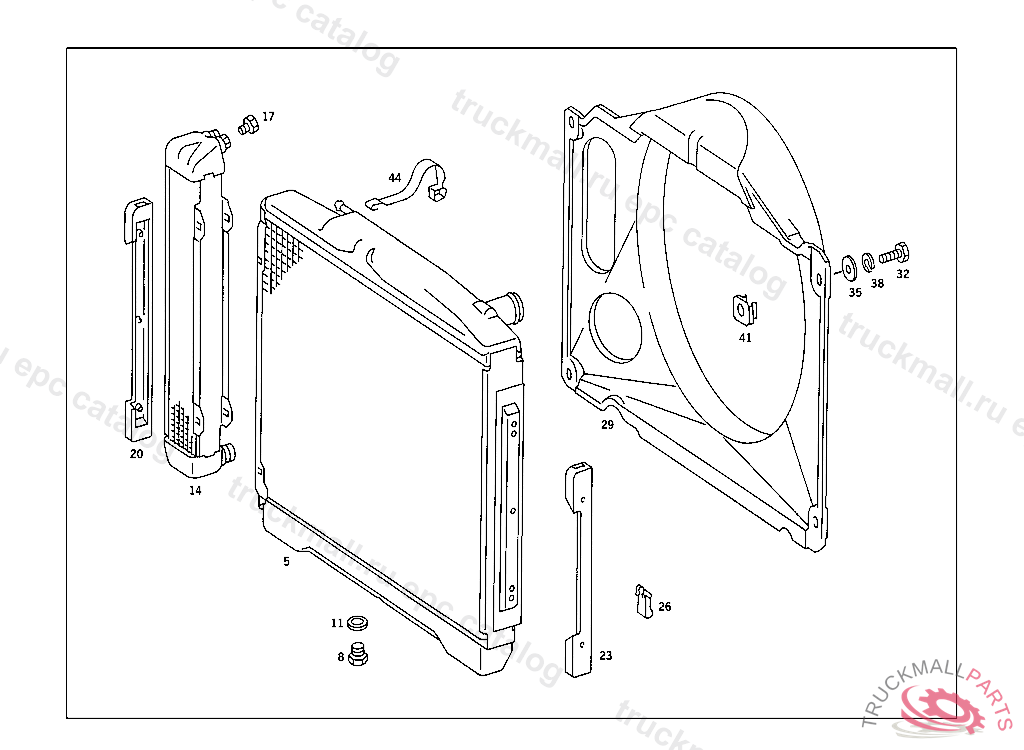

Mercedes A1075010901 - РАДИАТОР

5

RADIATOR , ONLY FOR AUSTRALIA,SWEDEN AND JAPAN AUSTRALIA: 024 013907 ALSO INSTALLED ON 021165,021170. 044 032550 ALSO INSTALLED ON 030570 SWEDEN 024 013802 ALSO INSTALLED ON 013411 JAPAN 024 012009 ALSO INSTALLED ON 011410 044 029718 ALSO INSTALLED ON 028507

8

SCREW PLUG , Replaced By: N007604014110

8

SCREW PLUG FUEL TANK

11

SEAL RING FUEL LINE TO FEED PUMP

14

OIL COOLER , 023 003906 ALSO INSTALLED ON 004595-004985 024 000357 043 009079 ALSO INSTALLED ON 009266-009410 044 007790

14

OIL COOLER , 023 003907 EXCEPT FOR 004595-004985 024 000358 043 009080 EXCEPT FOR 009266-009410 044 007791

17

SCREW PLUG , 036 NOT FOR AUSTRALIA

20

RUBBER MOUNTING

23

RUBBER MOUNTING

26

CLIP

29

FAN SHROUD

32

SCREW , Replaced By: N304017005002

32

SCREW LEVER TO SHAFT

35

WASHER , Replaced By: A1269901440

35

WASHER

38

LOCK WASHER T-FITTING TO BRACKET

41

NUT

44

SPRING
